3051-7020概述

Shunts/Jumper Connector

3051-7020规格参数

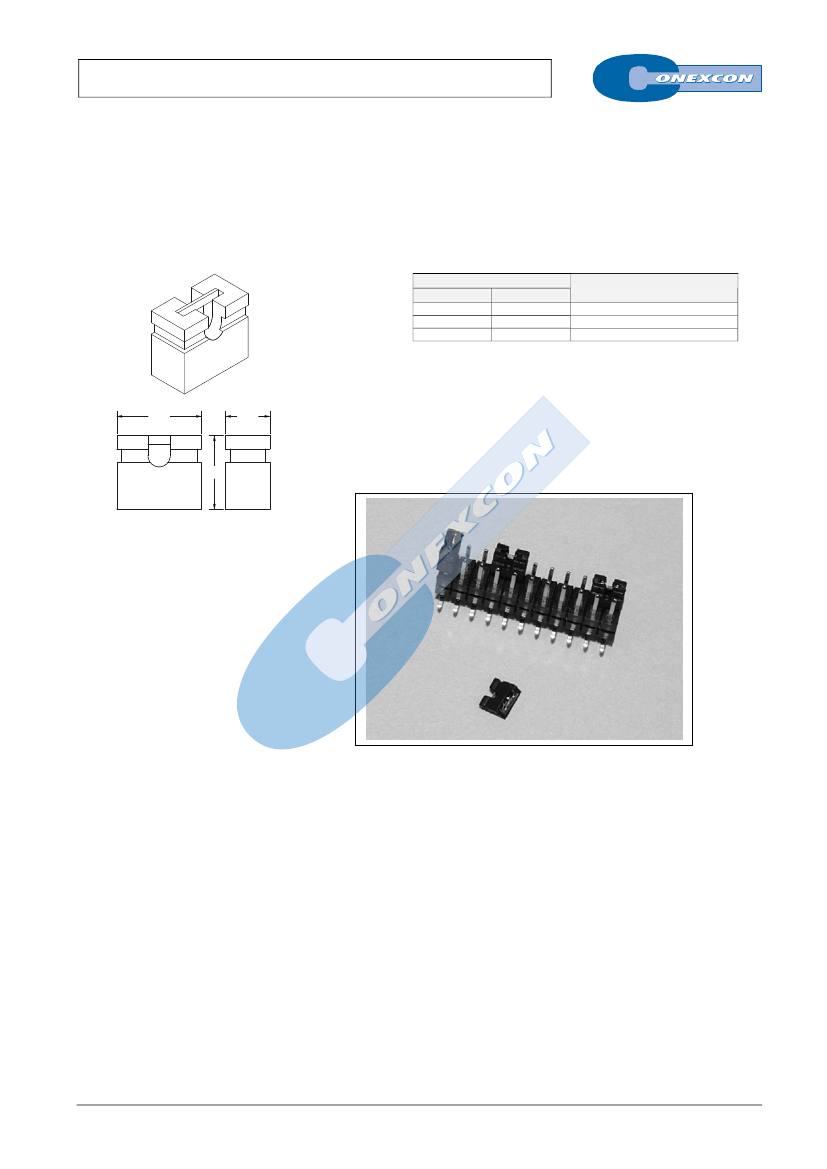

OPEN TOP LOW PROFILE JUMPER

3051 / 3052 SERIES.

2.00mm(0.079”).

Features

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Phosphor bronze

Different plating options are available

Dimensional Information

Ordering and Dimensional Information

Mates with 0.50mm(0.020”) square pin

Part Number

H = 3.50

3051 - 3020

3051 - 5020

3051 - 7020

H = 5.0

3052 - 3020

3052 - 5020

3052 - 7020

Finish

Flash de oro sobre 1.27 µ de Ni

0.38 µ de oro sobre 1.27 µ de Ni.

1.27 µ de oro sobre 1.27 µ de Ni.

4.00

2.00

FULL LINE CATALOGUE

C-XX

	3051-7020	3051-5020	3052-5020	3051-3020
描述	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector
Reach Compliance Code	unknow	unknow	unknow	unknow
主体宽度	0.079 inch	0.079 inch	0.079 inch	0.079 inch
主体深度	0.138 inch	0.138 inch	0.197 inch	0.138 inch
主体长度	0.157 inch	0.157 inch	0.157 inch	0.157 inch
主体/外壳类型	PLUG	PLUG	PLUG	PLUG
连接器类型	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR
触点性别	FEMALE	FEMALE	FEMALE	FEMALE
触点材料	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
触点模式	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
绝缘体材料	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
制造商序列号	3051	3051	3052	3051
插接触点节距	0.079 inch	0.079 inch	0.079 inch	0.079 inch
安装选项1	LOCKING	LOCKING	LOCKING	LOCKING
安装方式	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
连接器数	ONE	ONE	ONE	ONE
装载的行数	1	1	1	1
电镀厚度	50u inch	15u inch	15u inch	FLASH inch
参考标准	UL	UL	UL	UL
可靠性	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
触点总数	2	2	2	2
Base Number Matches	1	1	1	1
