HLMP-HD55, HLMP-HM57, HLMP-HB57
Precision Optical Performance Red, Green and Blue
5 mm Standard Oval LEDs
Data Sheet
Description
These Precision Optical Performance Oval LEDs are
specifically designed for full color/video and passenger
information signs. The oval shaped radiation pattern and
high luminous intensity ensure these devices are excellent
for wide field of view outdoor applications where a wide
viewing angle and readability in sunlight are essential.
These lamps have very smooth, matched radiation pat-
terns ensuring consistent color mixing in full color applica-
tions, message uniformity across the viewing angle of the
sign. High efficiency LED material is used in these lamps:
higher performance Aluminum Indium Gallium Phosphide
(AlInGaP II) for red color, Indium Gallium Nitride (InGaN)
for blue and green. Each lamp is made with an advance
optical grade epoxy offering superior high temperature
and high moisture resistance in outdoor applications.
The package epoxy contains both UV-A and UV-B inhibi-
tors to reduce the effects of long term exposure to direct
sunlight.
Features
• Well defined spatial radiation pattern
• High brightness material
• Available in red, green and blue color
Red AlInGaP 630 nm
Green InGaN 525 nm
Blue InGaN 470 nm
• Tinted and diffused
Benefits
• Viewing angle designed for wide field of view applica-
tions
• Superior performance for outdoor environments
Applications
• Full color signs
• Commercial outdoor advertising
Caution:
InGaN devices are Class 1C HBM ESD sensitive per JEDEC standard. Please observe appropriate
precautions during handling and processing. Refer to Application Note AN-1142 for additional details.
Package Dimensions
A
11.90 ± 0.50
(0.469 ± 0.019)
1.50 ± 0.15
(0.059 ± 0.006)
0.70 MAX.
(0.028)
5.20 ± 0.25
(0.204 ± 0.010)
CATHODE LEAD
(SEE NOTE A)
0.50 ± 0.10 SQ. TYP.
(0.020 ± 0.004)
NOTE: MEASURED AT BASE OF LENS.
3.80 ± 0.25
(0.150 ± 0.010)
2.54 ± 0.25
(0.10 ± 0.010)
1.0 MAX.
(0.039)
7.00 ± 0.25
(0.275 ± 0.010)
1.00 MIN.
(0.039)
24.00 MIN.
(0.945)
B
11.80 ± 0.50
(0.465 ± 0.019)
1.50 ± 0.15
(0.059 ± 0.006)
0.70 MAX.
(0.028)
5.20 ± 0.50
(0.205 ± 0.020)
CATHODE LEAD
(SEE NOTE A)
0.50 ± 0.10 SQ. TYP.
(0.020 ± 0.004)
2.54 ± 0.25
(0.10 ± 0.010)
1.0 MAX.
(0.039)
6.85 ± 0.25
(0.270 ± 0.010)
1.00 MIN.
(0.039)
24.00 MIN.
(0.945)
NOTES:
1. DIMENSIONS IN MILLIMETERS (INCHES).
2. FOR InGaN BLUE AND GREEN (PACKAGE B), IF HEAT-SINKING APPLICATION IS REQUIRED, THE TERMINAL FOR HEAT SINK IS ANODE.
Device Selection Guide
Part Number
HLMP-HD55-NR0xx
HLMP-HB57-KN0xx
HLMP-HB57-LMCxx
HLMP-HB57-LP0xx
HLMP-HM57-SV0xx
HLMP-HM57-RSCxx
HLMP-HM57-RU0xx
Color
Red
Blue
Blue
Blue
Green
Green
Green
Typical Dominant
Wavelength
l
d
(nm)
630
470
470
470
525
525
525
Luminous Intensity Iv
(mcd) at 20 mA
Minimum
Maximum
680
310
400
400
1900
1500
1500
1900
880
680
1150
5500
2500
4200
Package
Lens Type
Tinted, Diffused
Tinted, Diffused
Tinted, Diffused
Tinted, Diffused
Tinted, Diffused
Tinted, Diffused
Tinted, Diffused
Dimension
A
B
B
B
B
B
B
Notes:
1. Tolerance for luminous intensity measurement is ±15%.
2. The luminous intensity is measured on the mechanical axis of the lamp package.
3. The optical axis is closely aligned with the package mechanical axis.
4. The dominant wavelength, l
d
, is derived from the Chromaticity Diagram and represents the color of the lamp.
5. LED light output is bright enough to cause injuries to the eyes. Precautions must be taken to prevent looking directly at the LED with unaided
eyes.
2
Part Numbering System
HLMP - x x 5x - x x x xx
Mechanical Option
00: Bulk
DD: Ammo Pack
ZZ: Flexi-Bin; Ammo Pack
Color Bin Option
0: Full Color Bin Distribution
C: Color Bin 3 & 4
Maximum Intensity Bin
Refer to Device Selection Guide
Minimum Intensity Bin
Refer to Device Selection Guide
Color
B: Blue 470 nm
D: Red 630 nm
M: Green 525 nm
Package
H: 5 mm Standard Oval
Note: Please refer to AB 5337 for complete information about part numbering system.
Absolute Maximum Rating at T
A
= 25
o
C
Parameters
DC Forward Current
[1]
Peak Pulsed Forward Current
Power Dissipation
LED Junction Temperature
Operating Temperature Range
Storage Temperature Range
Notes:
1. Derate linearly as shown in Figures 2 and 7.
2. Duty factor 10%, frequency 1 KHz.
3. Duty factor 30%, frequency 1 KHz.
Blue and Green
30
100
[2]
116
130
-40 to +85
-40 to +100
Red
50
100
[3]
120
130
-
40 to 100
-40 to 120
Unit
mA
mA
mW
°C
°C
°C
3
Electrical/Optical Characteristics
T
A
= 25
°
C
Value
Parameters
Forward Voltage
Red
Green
Blue
Reverse Voltage
Red
Green, Blue
Capacitance
Red
Green
Blue
Thermal Resistance
[1]
Dominant Wavelength
[2,3]
Red
Green
Blue
Peak Wavelength
Red
Green
Blue
Spectral Half Width
Red
Green
Blue
Luminous Efficacy
[4]
Red
Green
Blue
Luminous Flux
Red
Green
Blue
Luminous Efficiency
[5]
Red
Green
Blue
Symbol
V
F
V
R
C
Rq
J-PIN
l
d
l
PEAK
Dl
1/2
h
v
j
V
h
e
Min.
2.0
2.8
2.8
5.0
5.0
622
520
460
Typ.
2.20
3.30
3.20
40
65
64
240
630
525
470
639
516
464
17
32
23
155
520
75
1300
3000
600
30
50
10
Max.
2.40
3.85
3.85
Units
V
Test Condition
I
F
= 20 mA
V
pF
I
R
= 100 µA
I
R
= 10 µA
V
F
= 0, f = 1 MHz
634
540
480
°C/W
nm
LED Junction-to-Pin
I
F
= 20 mA
nm
nm
lm/W
mlm
Peak of Wavelength of Spectral
Distribution at I
F
= 20 mA
Wavelength Width at Spectral
Distribution 1/2 Power Point at
I
F
= 20 mA
Emitted Luminous
Power/Emitted Radiant Power
I
F
= 20 mA
lm/W
Luminous Flux/Electrical Power
I
F
= 20 mA
Notes:
1. For AlInGaP Red, the thermal resistance applied to LED junction to cathode lead. For InGaN Blue and Green, the thermal resistance applied to
LED junction to anode lead.
2. The dominant wavelength, l
d
, is derived from the Chromaticity Diagram and represents the color of the lamp.
3. Tolerance for each color bin limit is ± 0.5 nm.
4. The radiant intensity, Ie in watts/steradian, may be found from the equation Ie = Iv/h
v
, where Iv is the luminous intensity in candelas and h
v
is
the luminous efficacy in lumens/watt.
5.
h
e
= j
V
/ I
F
x V
F
, where j
V
is the emitted luminous flux, IF is electrical forward current and VF is the forward voltage.
4
AlInGaP Red
I
F MAX.
– MAXIMUM FORWARD CURRENT – mA
60
50
40
30
20
10
0
0
20
40
60
80
100
T
A
– AMBIENT TEMPERATURE –
°C

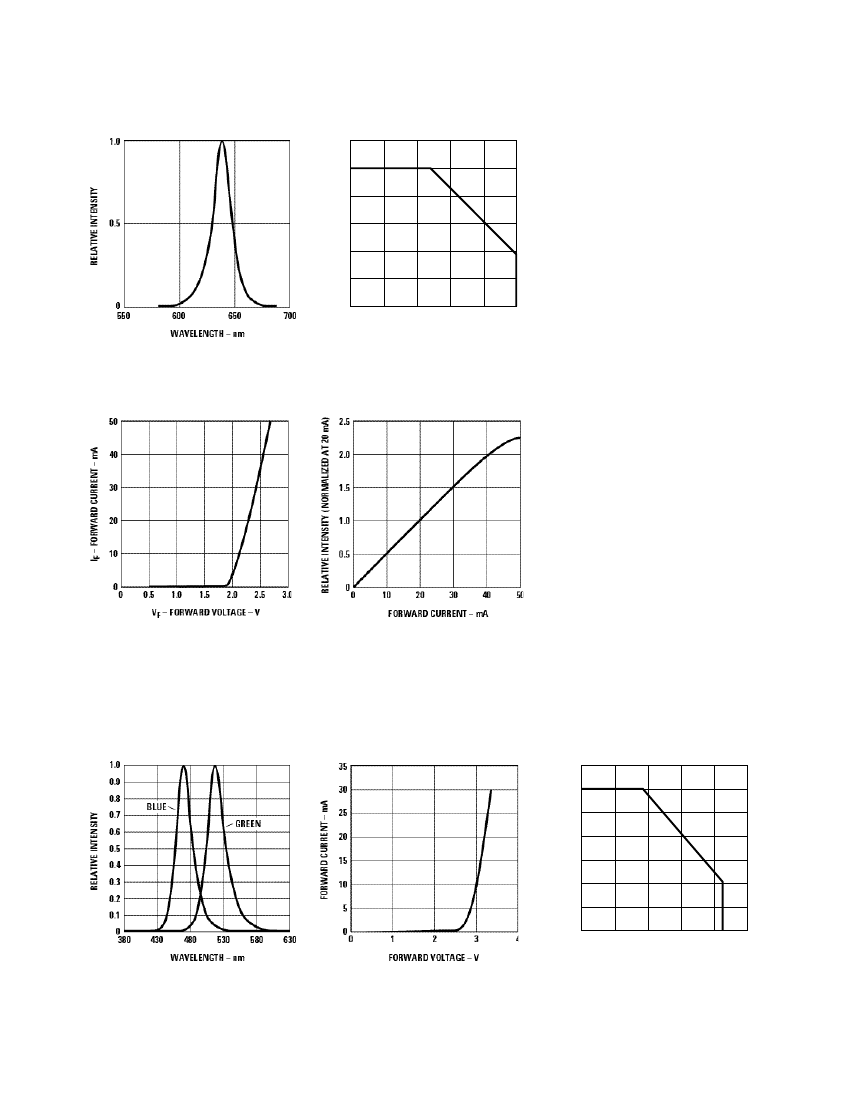

Figure 1. Relative intensity vs. wavelength.
Figure 2. Forward current vs. ambient temperature.
Figure 3. Forward current vs. forward voltage.
Figure 4. Relative luminous intensity vs. forward
current.
InGaN Blue and Green
35
I
F
– MAXIMUM FORWARD CURRENT – mA
30
25
20
15
10
5
0
0
20
40
60
80
100
T
A
– AMBIENT TEMPERATURE –
°C
Figure 5. Relative intensity vs. wavelength.
Figure 6. Forward current vs. forward voltage.
Figure 7. Maximum forward current vs. ambient
temperature.
5
