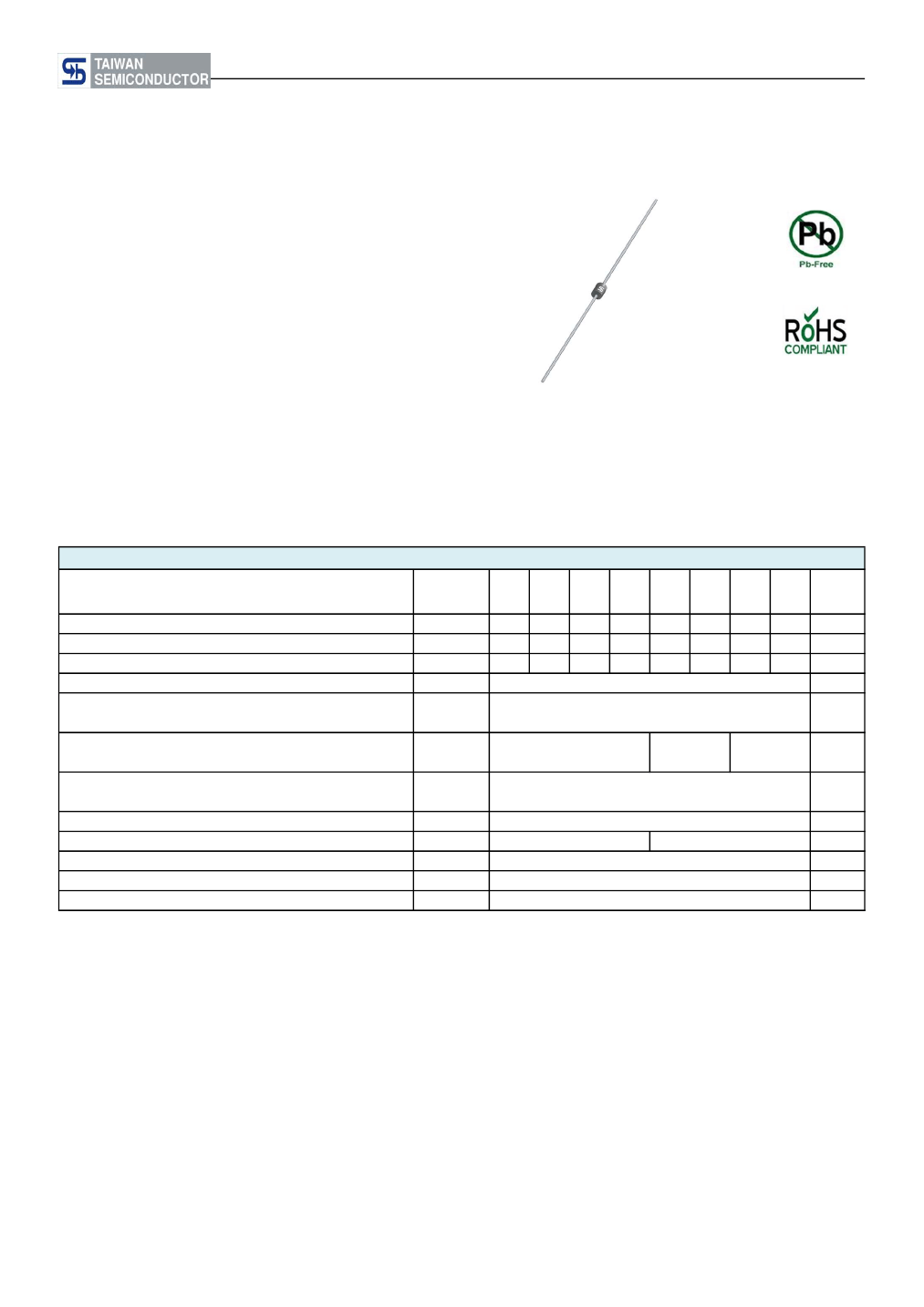

SFT11G - SFT18G
Taiwan Semiconductor
CREAT BY ART
1A, 50V - 600V Glass Passivated Super Fast Rectifiers
FEATURES
- High efficiency, low VF
- High current capability
- High reliability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
MECHANICAL DATA
Case:
TS-1
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Pure tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Weight:
0.2g (approximately)
TS-1
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJA
T
J
T
STG
20
100
- 55 to +150
- 55 to +150
0.95
5
100
35
10
SFT
11G
50
35
50
SFT
12G
100
70
100
SFT
13G
150
105
150
SFT
14G
200
140
200
1
30
1.3
1.7
SFT
15G
300
210
300
SFT
16G
400
280
400
SFT
17G
500
350
500
SFT
18G
600
420
600
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Document Number: DS_D1312029
Version: I15
SFT11G - SFT18G
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
SFT1xG
(Note 1)
PACKING
CODE
A0
H
A1
R0
B0
Note 1: "x" defines voltage from 50V (SFT11G) to 600V (SFT18G)
*: Optional available
G
PACKING CODE
SUFFIX
(*)
PACKAGE
TS-1
TS-1
TS-1
TS-1
PACKING
3,000 / Ammo box (52mm taping)
3,000 / Ammo box (26mm taping)
5,000 / 13" Paper reel
1,000 / Bulk packing
EXAMPLE
PREFERRED P/N
SFT16GHA0G
PART NO.
SFT16G
PART NO.
SUFFIX
H
PACKING CODE
A0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

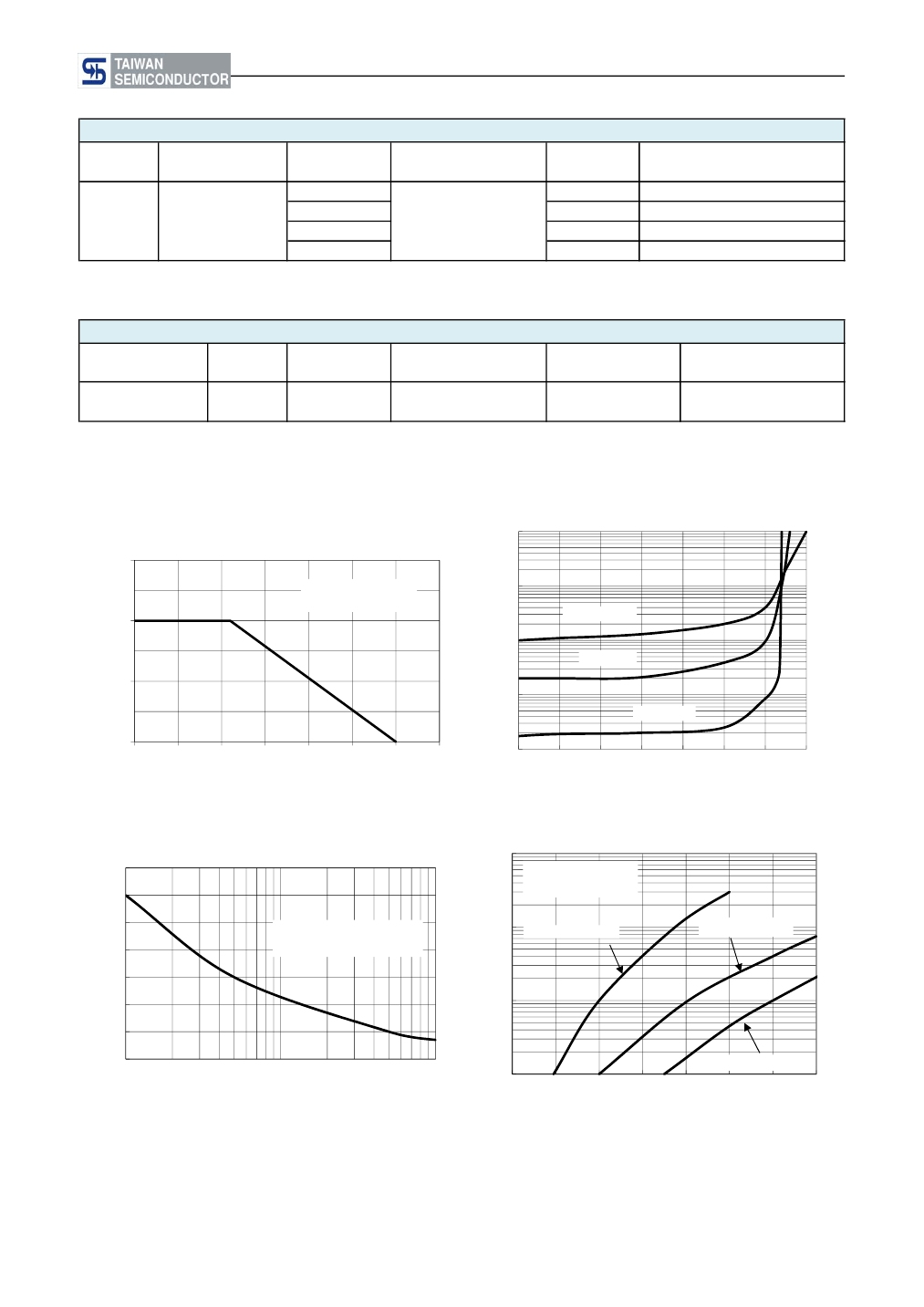

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.2 TYPICAL REVERSE CHARACTERISTICS
1000
INSTANTANEOUS REVERSE CURRENT (μA)
FIG.1 MAXIMUM AVERAGE FORWARD
CURRENT DERATING
AVERAGE FORWARD CURRENT (A)
1.5
RESISTIVE OR
INDUCTIVE LOAD
100
T
J
=125
°
C
10
T
J
=75
°
C
1
T
J
=25
°
C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
1.0
0.5
0.0
0
25
50
75
100
125
(
°
C)
150
175
AMBIENT TEMPERATURE
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
INSTANTANEOUS FORWARD CURRENT (A)
PEAK FORWARD SURGE CURRENT (A)
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
Pulse Width=300μs
1% Duty Cycle
35
30
25
20
15
10
5
0
1
10
NUMBER OF CYCLES AT 60 Hz
8.3ms Single Half Sine Wave
10
SFT11G-SFT14G
SFT15G-SFT16G
1
100
0.1
0.4
0.6
0.8
1
1.2
SFT17G-SFT18G
1.4
1.6
1.8
FORWARD VOLTAGE (V)
Document Number: DS_D1312029
Version: I15
SFT11G - SFT18G
Taiwan Semiconductor
CREAT BY ART
FIG. 5 TYPICAL JUNCTION CAPACITANCE
70
JUNCTION CAPACITANCE (pF)
60
50
40
30
20
10
0
0.1
1
10
100
REVERSE VOLTAGE (V)
f=1.0MHz
Vslg=50mVp-p
SFT11G-SFT14G
SFT15G-SFT18G

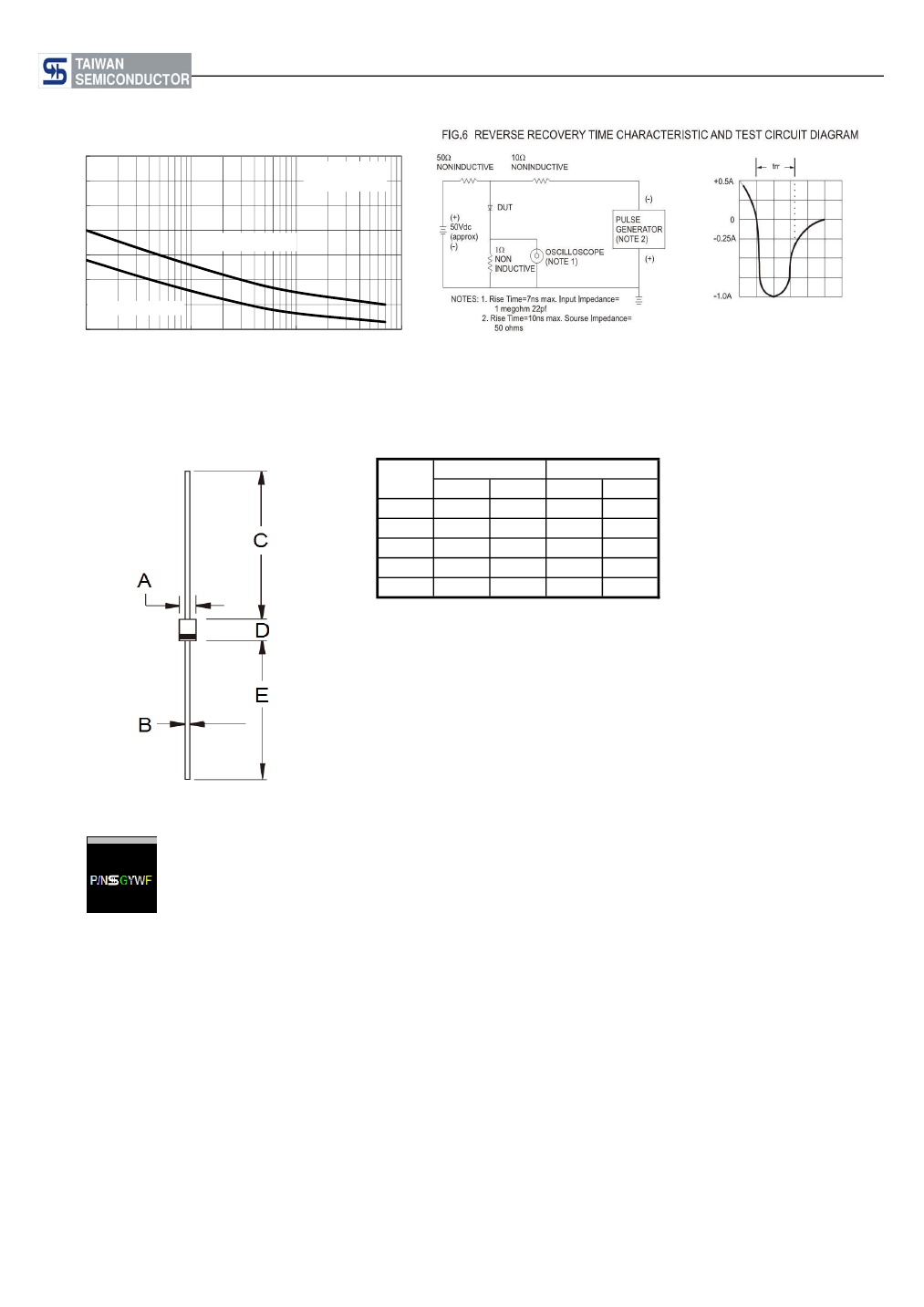

PACKAGE OUTLINE DIMENSIONS
TS-1
DIM.
A
B
C
D
E
Unit (mm)
Min
2.00
0.53
25.40
3.00
25.40
Max
2.70
0.64
-
3.30
-
Unit (inch)
Min
0.079
0.021
1.000
0.118
1.000
Max
0.106
0.025
-
0.130
-
MARKING DIAGRAM
P/N =
G=
YW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1312029
Version: I15
SFT11G - SFT18G
