Material
Plating
Wire Size
Wire Type
High Conductivity
Seamless Copper Tube
Electro-Tin
3/0 STR/FLEX
Stranded Copper: Class B & C
Compact, Class G, H, I, K, M,
Locomotive
R.47 REF
Color coded
barrel markings
3/0 STR/FLEX
LCCX3/0-38D
PANDUIT
PANDUIT
Wire Strip Length
Stud Size
UL Listed Wire
Connector
1-5/8 in.
3/8 in.
Yes, for applications up to 35kv.
Consult cable manufacturer for
voltage stress relief instructions
with applications greater than
2000 volts.
90 C
Yes
ORANGE
1.06±.04
UL Temperature
Rating
C.S.A Certified
Wire Connector
Panduit Color Code
on Barrel
.39±.04
1.00±.02
3.81±.06
.41±.02 DIA
(2) PLS
ORANGE DIE P50 (14)
Panduit Die Index No. P50
on Barrel
Alternate Industry
Die Index No. ( )
on Barrel
(14)
Wire inspection window
1.56±.04
Beveled wire
entry
.57±.01
.71±.04
CERTIFIED
LISTED
Wire Connector
.14±.01
CORP.
00
REV
TINLEY PARK, ILLINOIS
6/03
DATE
SAC SAC
BY
CHK
RELEASED
DESCRIPTION
10850
ECN
LCCX3/0-38D-X

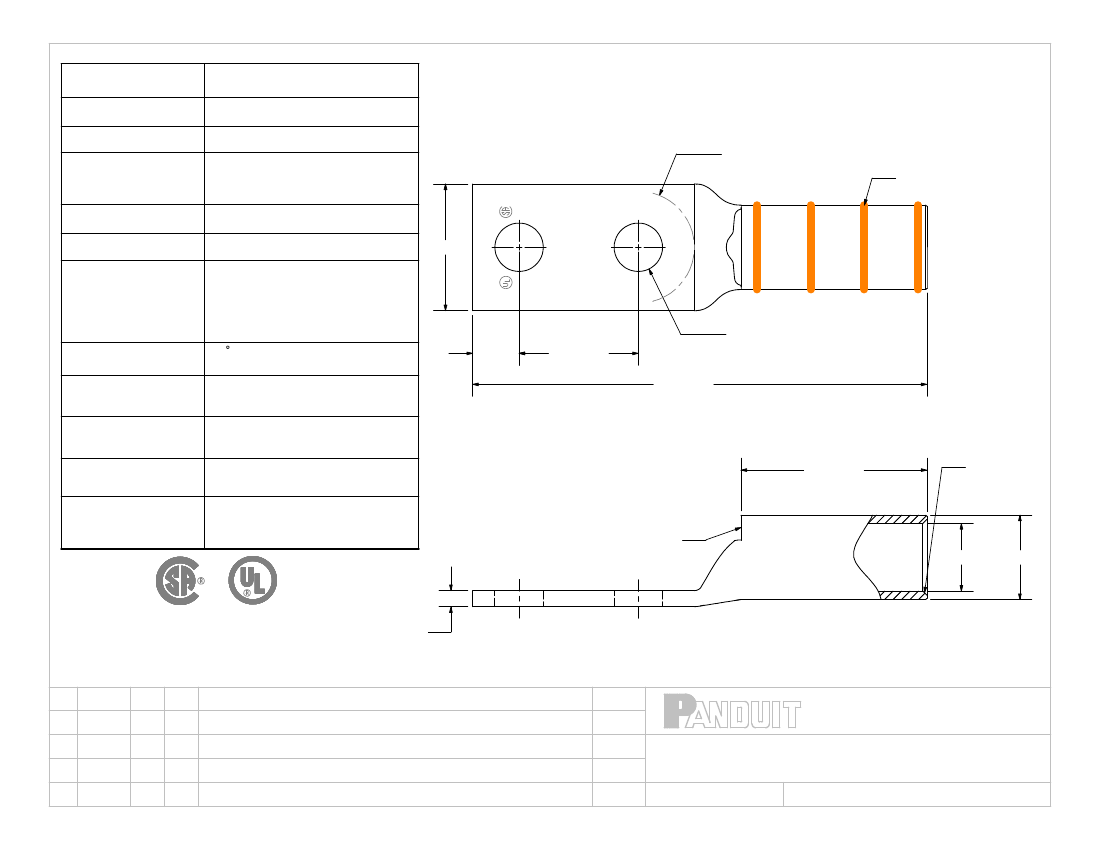

Copper Lug - Two-Hole, Long Flex Barrel with Window
SCALE
N/A
DRAWING NO / CAD FILE
LCCX3_0-38D-CUST
