71308-0588: 产品描述Headers & Wire Housings CGrid SMT Bkwy Hdr 15 SAu 88Ckt Tubew/; 产品类别连接器连接器; 文件大小2MB，共6页; 制造商Molex; 官网地址https://www.molex.com/molex/home

下载文档详细参数选型对比全文预览

71308-0588在线购买

供应商	器件名称	价格	最低购买	库存
	71308-0588	-	-	点击查看	点击购买

71308-0588概述

Headers & Wire Housings CGrid SMT Bkwy Hdr 15 SAu 88Ckt Tubew/

71308-0588规格参数

参数名称	属性值
厂商名称	Molex
Reach Compliance Code	unknown
连接器类型	BOARD CONNECTOR
联系完成配合	GOLD (15)/TIN (75) OVER NICKEL
联系完成终止	GOLD (15)/TIN (75) OVER NICKEL
触点性别	MALE
DIN 符合性	NO
滤波功能	NO
IEC 符合性	NO
JESD-609代码	e4/e3
MIL 符合性	NO
制造商序列号	71308
混合触点	NO
安装方式	STRAIGHT
安装类型	BOARD
装载的行数	2
选件	GENERAL PURPOSE
端子节距	2.54 mm
端接类型	SURFACE MOUNT
触点总数	88
UL 易燃性代码	94V-0
Base Number Matches	1

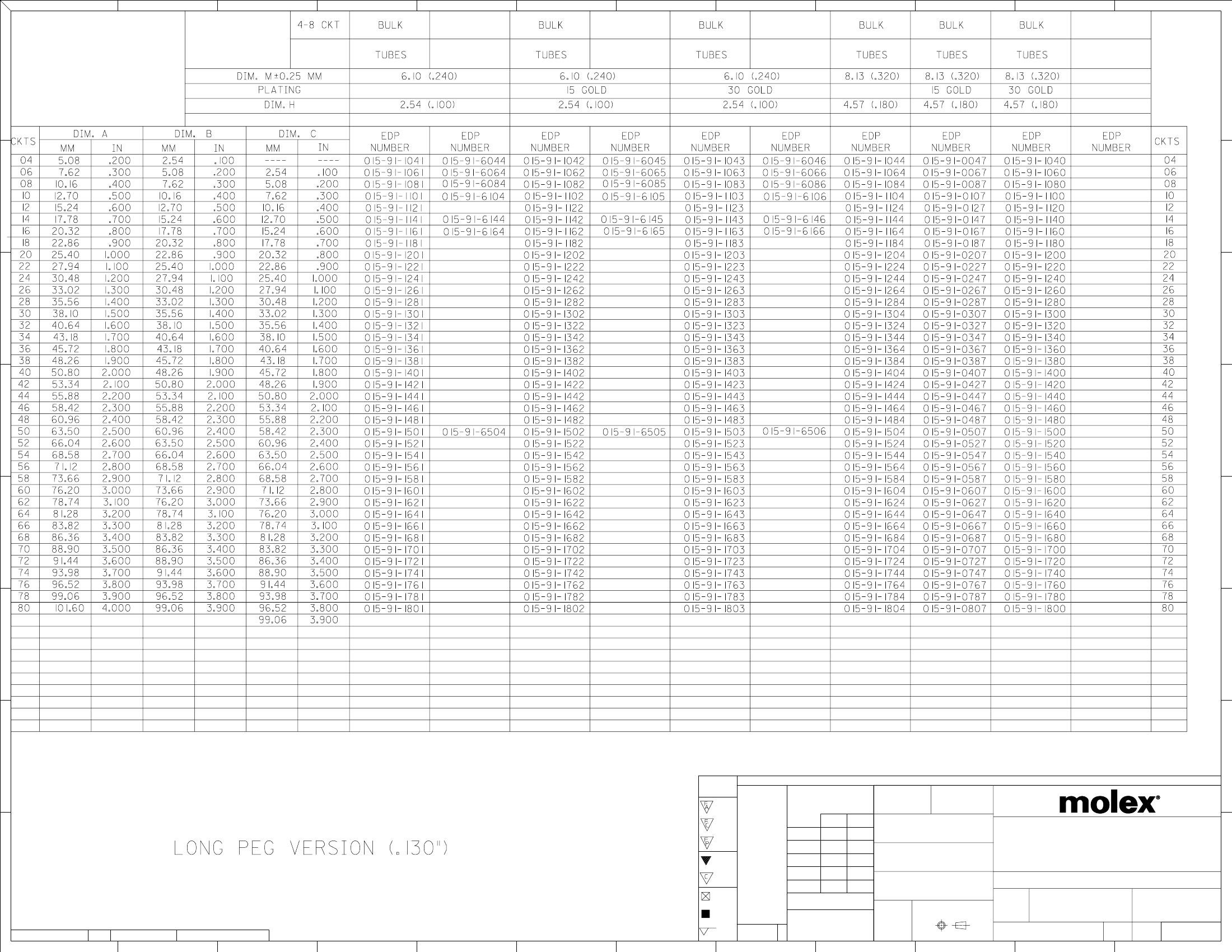

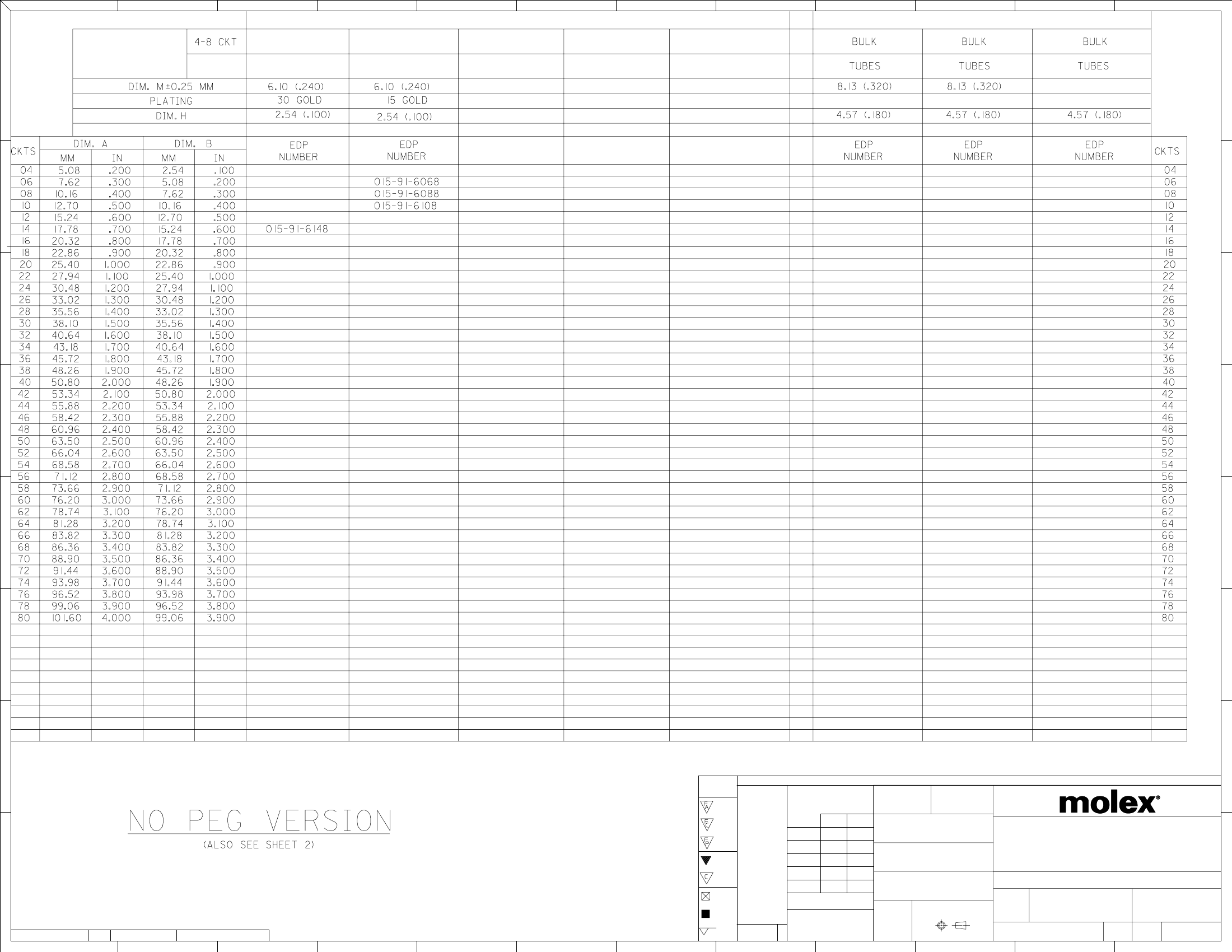

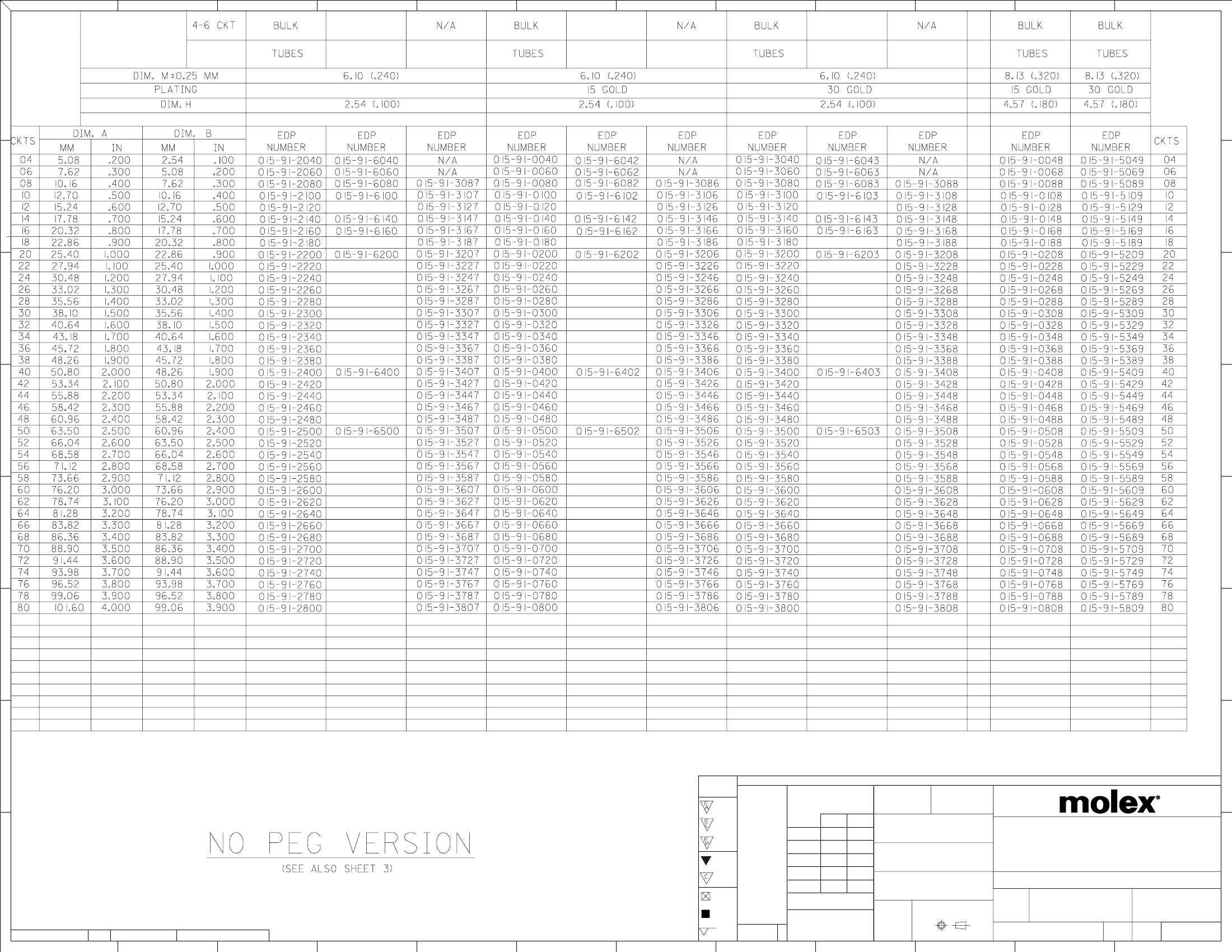

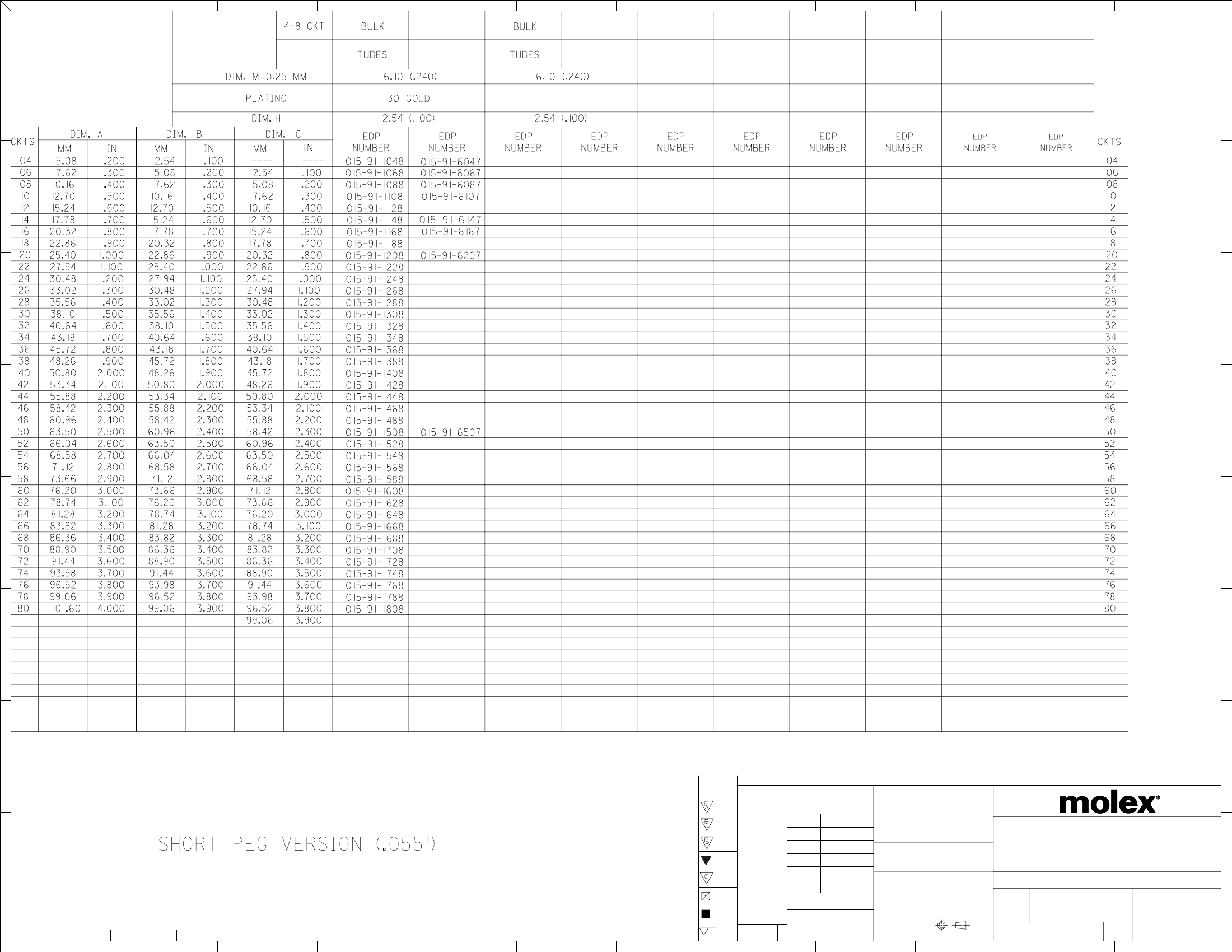

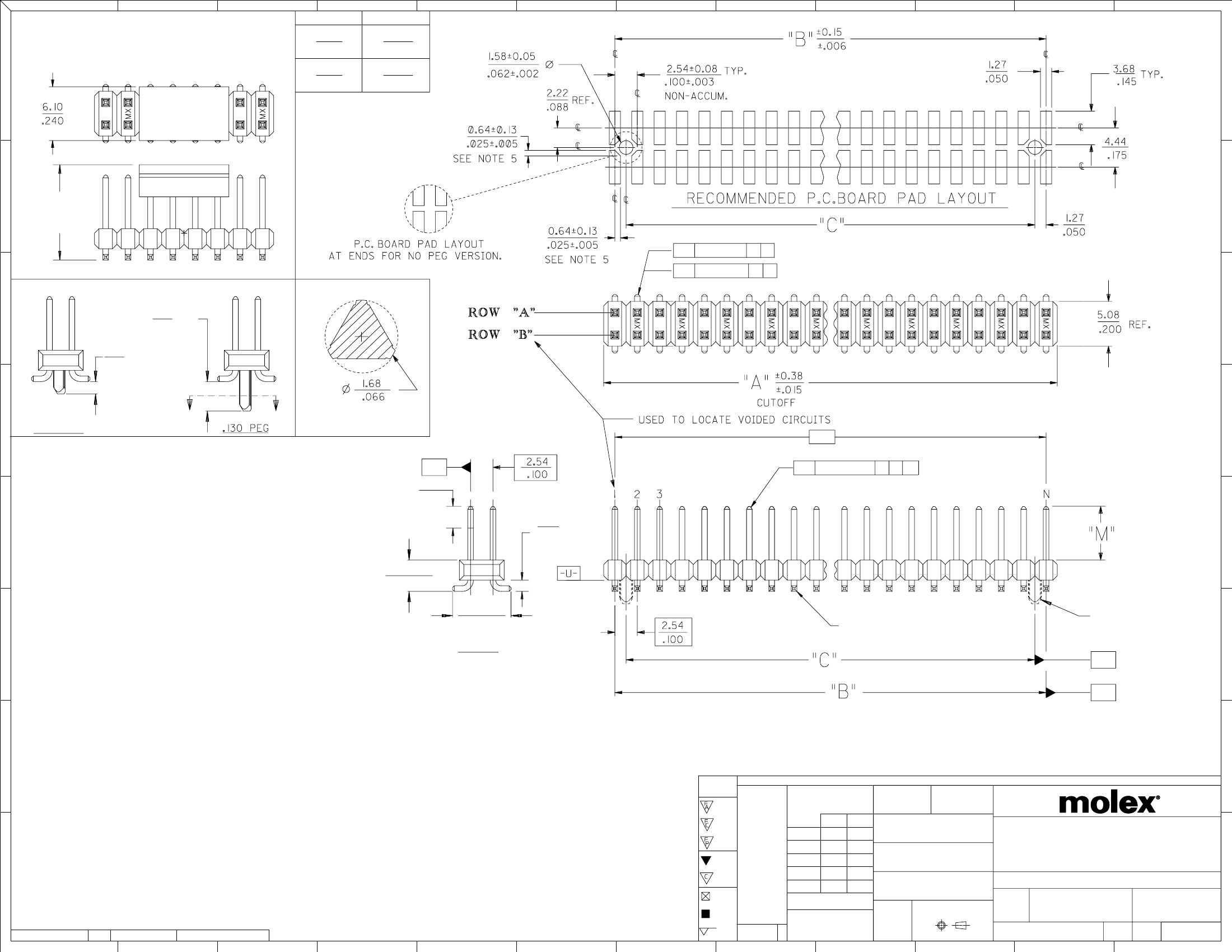

文档预览

下载PDF文档

全文
预览

OPTIONAL

PICK AND PLACE CAP

SEE NOTES 4 & 9.

DIM. "M"

DIM. "G"

6.10

.240

8.13

.320

10.67

.420

12.70

.500

"G"

REF.

⌖

0.50/.020

FOR PARTS WITH PEGS

PEG OPTIONS

⌖

0.50/.020

FOR PARTS WITHOUT PEGS

3.30 REF.

.130

1.40 REF.

.055

.055 PEG

SECTION Z-Z

-W-

NOTES:

-V-

1. MATERIALS: INSULATOR: GLASS FILLED LIQUID CRYSTAL

POLYMER (LCP). UL94 V-0, COLOR: BLACK

TERMINAL: COPPER ALLOY

SEE NOTE 12

2. FINISH:

59 TIN - 0.00150/.000059 MIN. BRIGHT TIN OVER NICKEL OVERALL.

150 TIN - 0.00381/.000150 MIN. BRIGHT TIN OVER NICKEL OVERALL.

REFLOWED MATTE TIN - 0.00152/.000060 MIN. REFLOWED MATTE TIN

OVER NICKEL OVERALL.

3.56

0.25

15 GOLD - 0.00038/.000015 MIN. GOLD IN SELECT AREA OVER

0.00191/.000075 MIN. TIN IN SELECT AREA

.140

.010

OVER NICKEL OVERALL.

30 GOLD - 0.00076/.000030 MIN. GOLD IN SELECT AREA OVER

6.99

0.51

0.00191/.000075 MIN. TIN IN SELECT AREA

.275

.020

OVER NICKEL OVERALL.

50 GOLD - 0.00127/.000050 MIN. GOLD IN SELECT AREA OVER

NO PEG

0.00254/.000100 MIN. TIN IN SELECT AREA

SEE PEG OPTIONS

OVER NICKEL OVERALL.

3. PART TO CONFORM TO PS-71308.

4. PACKAGING (SEE CHARTS): BULK: PER PK-70873-0353

TUBES: PER PK-70873-0041.

71308-82** IN TUBES: PER PK-70873-042.

TUBES W/ VAC CAPS: PER PK-70873-0691

TAPE AND REEL W/ VAC CAPS: PER PK-70873-0805.

SEE SHEET 3 FOR TAPE & REEL PRODUCT WITH SHALLOW POCKET REQUIREMENTS.

5. TYP. DIMENSIONS FOR LANDS SURROUNDING HOLES FOR RETETION PEGS.

6. PIN SOLERABILITY PER MOLEX SPEC. SMES-152.

7. SEE SHEETS 2-6 FOR CHARTED DIMS., PART/EDP NO'S, AND VOIDED CIRCUITS.

8. PIN PUSHOUT FORCE: 3 LBS. MINIMUM.

9. PICK-N-PLACE CAPS WILL BE PLACED SO THAT VACUUM PICK UP AREA

WILL BE IN CENTER OF PART.

10. COPLANARITY FOR CIRCUIT SIZES UP TO 40 IS 0.15 MM/.006 INCH.

FOR CIRCUIT SIZES 42 AND LARGER, CONTACT MOLEX SALES DEPARTMENT.

11. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF

COSMETIC SPECIFICATION PS-45499-002.

12. MEASURE POINT FOR PLATING THICKNESS.

⌖

⌀

0.38/.015

1.27

.050

REF.

OPTIONAL PEG

TYPICAL

COPLANARITY - SEE NOTE 10

-X-

-Y-

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

2016/08/02

2017/01/17

2017/01/20

ADD 71308-8017, 8416

GENERAL TOLERANCES

(UNLESS SPECIFIED)

MM/IN

DRWN BY

DATE

4:1

1999/10/15

DATE

INCH

0.005

0.01

4 PLACES

3 PLACES

2 PLACES

0.13

0.25

KMS

CHK'D BY

112218

MKIPPER

JDFOX

FSMITH

KMS

APPR BY

DATE

1999/10/15

THIRD ANGLE PROJECTION

SALES ASSY INSULATOR

DUAL ROW SMT W/BREAK-OFF .025SQ PIN

GULLWING .100

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

1 PLACES

0 PLACES

KMS

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

71308

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE

DOC PART

SHEET NUMBER

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-C

REVISION: C

DATE: 2016/02/04

RELEASE DATE

REV

SD-71308-001

PSD

000

1 OF 6

71308-0588相似产品对比

	71308-0588	71308-0488	71308-0484	71308-0700	71308-6096	71308-0492	71308-0482
描述	Headers & Wire Housings CGrid SMT Bkwy Hdr 15 SAu 88Ckt Tubew/	Headers & Wire Housings CGrid SMT Bkwy Hdr Tin 88Ckt Tubew/VC	Headers & Wire Housings CGrid SMT Bkwy Hdr Tin 84Ckt Tubew/VC	Headers & Wire Housings CGrid SMT Bkwy Hdr 30 SAu100Ckt Tubew/	Headers & Wire Housings CGrid SMT Hdr w/S.Pg 30 SAu 96Ckt Tub	Headers & Wire Housings CGrid SMT Bkwy Hdr Tin 92Ckt Tubew/VC	Headers & Wire Housings CGrid SMT Bkwy Hdr Tin 82Ckt Tubew/VC
厂商名称	Molex	Molex	Molex	Molex	-	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	-	unknown	unknown
连接器类型	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
联系完成配合	GOLD (15)/TIN (75) OVER NICKEL	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL	GOLD (30)/TIN (75) OVER NICKEL	-	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL
联系完成终止	GOLD (15)/TIN (75) OVER NICKEL	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL	GOLD (30)/TIN (75) OVER NICKEL	-	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL
触点性别	MALE	MALE	MALE	MALE	-	MALE	MALE
DIN 符合性	NO	NO	NO	NO	-	NO	NO
滤波功能	NO	NO	NO	NO	-	NO	NO
IEC 符合性	NO	NO	NO	NO	-	NO	NO
JESD-609代码	e4/e3	e3	e3	e4/e3	-	e3	e3
MIL 符合性	NO	NO	NO	NO	-	NO	NO
制造商序列号	71308	71308	71308	71308	-	71308	71308
混合触点	NO	NO	NO	NO	-	NO	NO
安装方式	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT
安装类型	BOARD	BOARD	BOARD	BOARD	-	BOARD	BOARD
装载的行数	2	2	2	2	-	2	2
选件	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
端子节距	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
端接类型	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT
触点总数	88	88	84	100	-	92	82
UL 易燃性代码	94V-0	94V-0	94V-0	94V-0	-	94V-0	94V-0
触点材料	-	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
