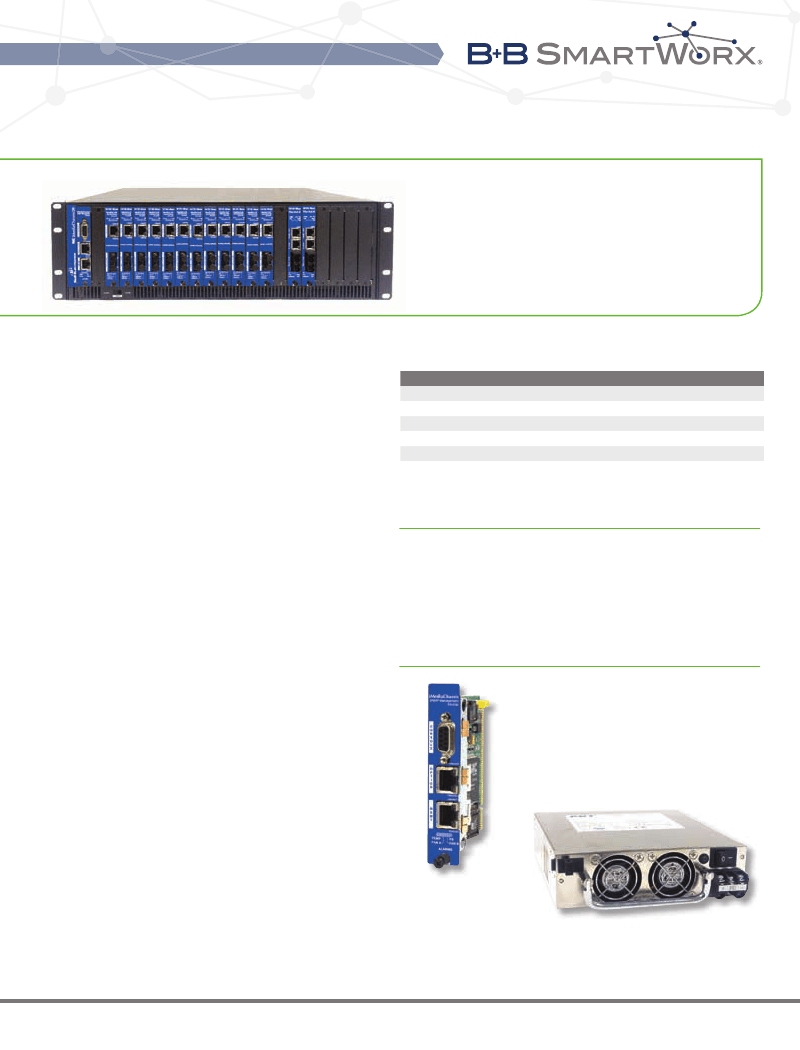

SNMP-Manageable Chassis for “iMcV” Series
Modular Media Converters
iMediaChassis/20
PRODUCT FEATURES
• 20-slot chassis supporting low to high density deployment
• Install wide varieties of media conversion and optical demarcation
modules
• SNMP management using optional SNMP management module
• 19” rack or rack shelf mountable
• Dual (redundant) AC or DC and AC/DC power supplies and fans
The iMediaChassis/20 is an intelligent, carrier-class optical access
platform that supports modules which provide conversion of Ethernet
to fiber and a variety of other telco networking technologies, including
VDSL, T1/E1, DS3/E3/STS-1 and WDM. The iMediaChassis/20 enables
network operators to drastically reduce the capital and operational
expenses by providing copper-to-fiber, multi-mode to single-mode fiber
and TDM conversions in a variety of speeds ranging from 10Mbps up
to 10GB from the same managed chassis platform. Having the highest
port density in the industry - along with a robust design, hot-swappable
architecture, SNMP-management, and redundant power supplies for
fault tolerance - makes the iMediaChassis ideal for installing in the
Central Office (CO) where a multitude of diverse applications, using
a variety of protocols, is required. Pair this multi-slot chassis with a
MediaChassis or other standalone B+B SmartWorx unmanaged device
at the customer premises, for complete end-to-end management.
•
•
•
An independent SNMP-management slot to isolate management
data from user traffic
Fans on the 20-slot chassis can be remotely controlled via SNMP
Remote temperature monitoring on all chassis
ORDERiNg
Model NuMber
iMediachassis/20 *
850-10960-2AC
850-10960-ACDC
605-10144-2AC
605-10145-2DC
605-10144-10
iNFORMATiON
descriptioN
Includes 2 AC power supply modules
Includes 1 AC, 1 DC power module
Includes 2 AC power supply modules
Includes 2 DC power supply modules
Empty chassis with power supply cage.
Requires one AC and one DC power supply (see accessories)
*An SNMP module is required to utilize full SNMP functionality in the iMediaChassis family.
ACCESSORiES
806-39960-AC - Power Supply, 960-AC Power Module (100-240V AC)
806-39960-DC - Power Supply, 960-DC Power Module (300 Watt, -48V DC)
850-39950
- iMediaChassis SNMP Management Module
605-10144-AC - AC Power Supply (300W, 100-240V AC)
605-10145-DC - DC Power Supply (300Watt, -48V DC)
SNMP Module (optional)
Optional power supplies available for puchase,
depending on chassis style.
(Model# 806-39960-DS shown)
www.bb-smartworx.com
|
Enabling connEctEd intElligEncE
iMediaChassis/20_0615ds
SNMP-Manageable Chassis
for “iMcV” Series Modular
Media Converters
iMediaChassis/20
SpecificationS
Technical
SNMP-manageable with use of SNMP module
SNMP Write Lock switch protects the SNMP-configured settings
Built to NEBS-III specicfications
Last Gasp feature sends notification of AC line failures and power supply failures
Available with AC or DC power
Available with redundant power
Highest port density, 20 slots
Includes fan tachometers
MiB:
Port Type
Fan speeds
Traps
Fiber Type
Module Type
Link Status of Ports
Chassis temperature
Power Supply Type/Status
User-Definable Name/ID of Product and Each Port
Enable/Disable Ports
Enable/Disable FO/FX LinkLoss, TP/TX LinkLoss
Enable/Disable FiberAlert, Auto Negotiation
Mechanical
Dimensions
Shipping Weight
ac input load: dual ac
850-10960 series:
100 to 240V AC±10%, 50-60Hz, 3.5/1.5A
605-10144 series:
100-240V AC + - 10%, 50-60Hz, 4.5/2A
dc input load: dual dc
850-10960 series:
-48V DC, 5A Max (per module)
605-10144 series:
-48V DC, 9A
ac/dc load for 850-10960-ac/dc Model
-48V DC, 4.4A Max, per module
850-10960 series:
100 to 240V AC±10%, 50-60Hz, 2A
environMental
Operating Temperature:
+32° to +122° F (0° to +50° C)
-4° to +176° F (-20° to +80° C): Dual AC, AC/DC
Storage Temperature:
-4° to +140° F (-20° to +60° C): Dual DC
5% to 95% (non-condensing),
Operating Humidity
0 – 10,000 ft. altitude
regulatory approvals
Dual AC: FCC Class B
Dual DC: FCC Class B
AC/DC: FCC Class B
UL/cUL, CSA, CE
5.17”H x 19.0”W x 14”D
(13.13cm H x 48.26cm W x 35.56cm D)
30 lbs (13.60 kg)

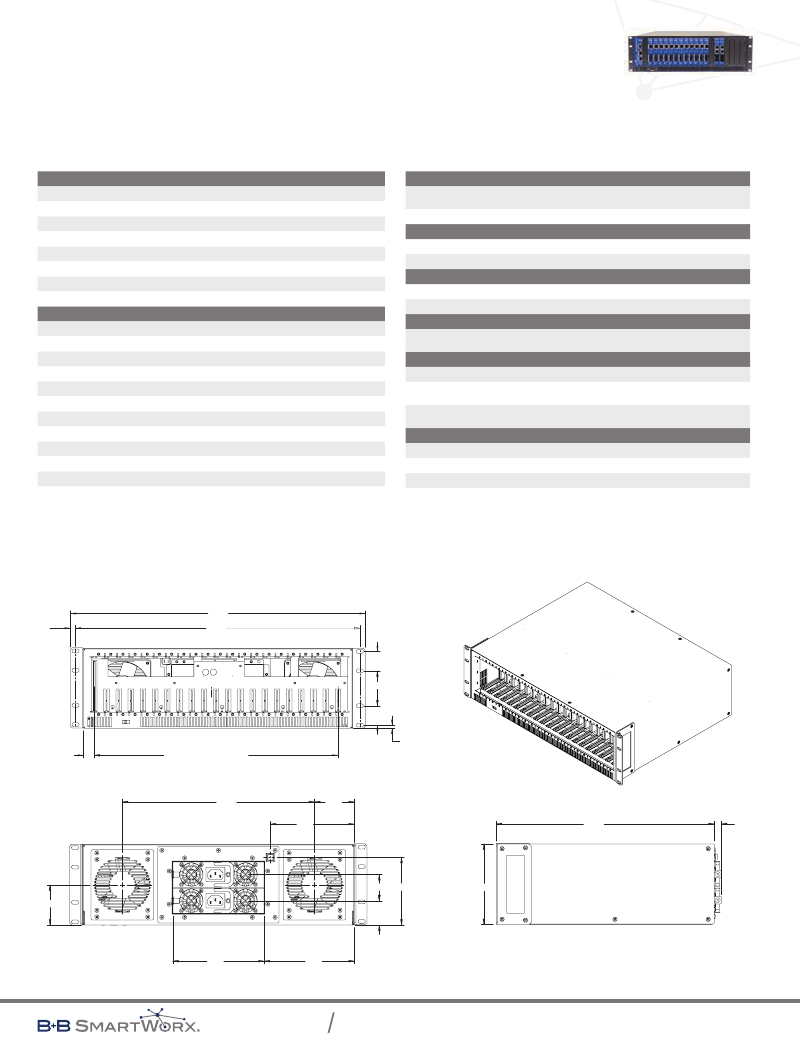

MEChANiCAl DiAgRAM
(dimensions in inches)
19.00
.34
18.32
1.25
2.25
1.25
.21
.70
20 EQ SP @ .785 = 15.700
12.29
5.39
2.55
14.00
.47
1.68
2.57
1.56
4.33
5.17
5.85
5.78
Chassis shown with optional power supply.
Power supplies available for purchase, depending on chassis style.
orders@bb-smartworx.com
support@bb-smartworx.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
