TECHNICAL DATASHEET
LED Driver
LNE-100W Series / LNE-
□
V100W
□□□
LNE

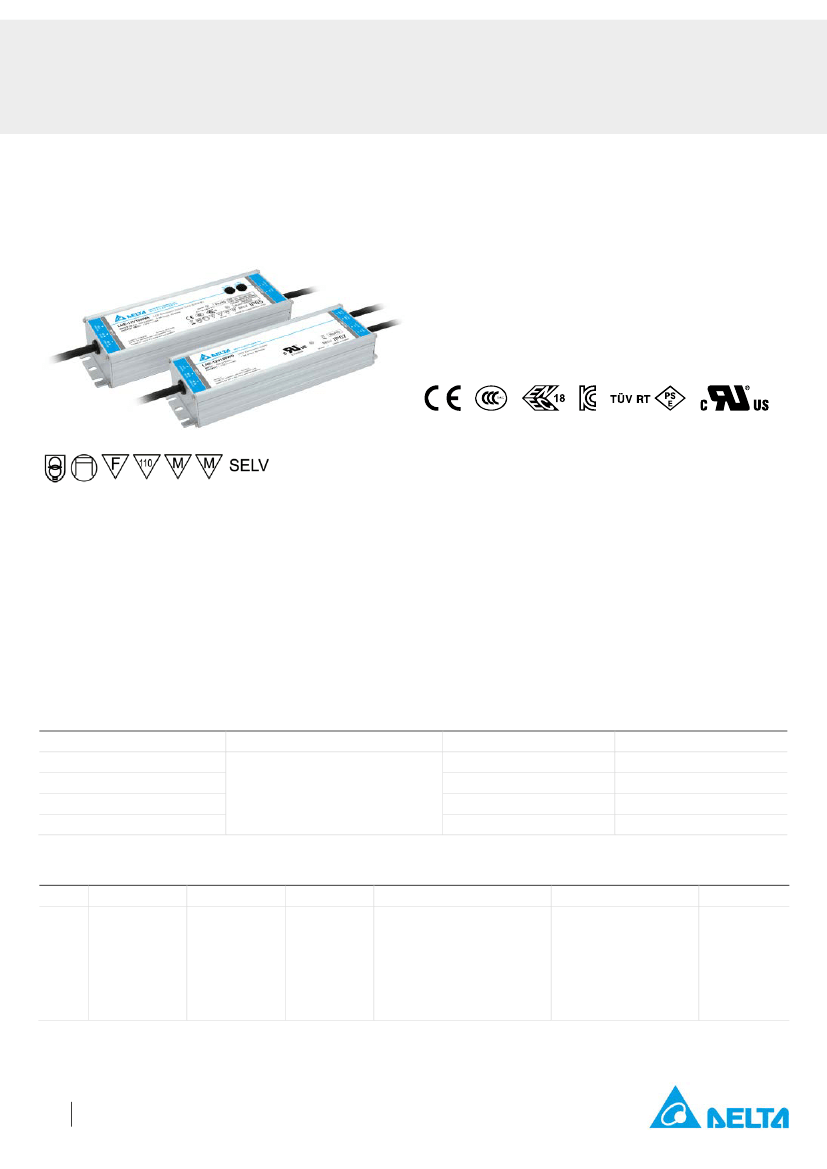

Highlights & Features
–
–
–
–
–
–
North American and International AC voltage options
Up to 93.0% efficiency
6kV common mode & 4kV differential mode surge immunity
Active PFC. Meets IEC/EN 61000-3-2, Class C
Adjustable voltage & current; dimming option available
IP65 or IP67 assembly for indoor and outdoor applications
Safety Standards
CB Certified for worldwide use
Model Number:
LNE-☐V100W☐☐☐
Unit Weight:
0.98 kg (2.16 lb)
Dimensions (L x W x D):
220 x 68 x 38.8 mm
(8.66 x 2.68 x 1.53 inch)
General Description
Delta LNE series of LED drivers comes with different combinations of features to suit different application requirements and energy
optimization needs. Options include externally adjustable output voltage and current levels, and adjustment of LED brightness via 3-
way built-in dimming function. All models in the LNE series come with a full corrosion resistant aluminum casing, major international
safety certifications and are compliant with EN55015 immunity/Emissions/Harmonic requirements. The products are designed and
rigorously tested to work in various indoor and outdoor LED lighting conditions. High surge immunity (common mode: 6kV, differential
mode: 4kV), MTBF > 700,000hrs and compliance to IP65/IP67, all make the Delta LNE series an essential part of an energy efficient
LED lighting power solution for both indoor and outdoor applications.
Model Information
LNE LED Driver
Model Number
LNE-12V100W☐☐☐
LNE-24V100W☐☐☐
LNE-36V100W☐☐☐
LNE-48V100W☐☐☐
Input Voltage Range
90-305Vac (LNE-☐V100W☐A☐)
90-264Vac (LNE-☐V100W☐C☐)
Rated Output Voltage
12Vdc
24Vdc
36Vdc
48Vdc
Rated Output Current
8.00A
4.00A
2.65A
2.00A
Model Numbering
LN
LED
Driver
E–
Product Series
E – High
efficiency and
PFC
□V
Output Voltage
12V
24V
36V
48V
100W
□
Output Power Package Type
(100W series A – IP65 with potentiometers
model)
to adjust output voltage &
constant current level
D – IP67 with dimming cable
to adjust constant current
level
□
Safety Approval
A – UL approval
C – ENEC, CE, KC,
PSE and CCC approval
□
Variable
A – Delta
standard
1
All parameters are specified at 25°C ambient for all products unless otherwise indicated.
www.DeltaPSU.com (April 2016, Rev. 03)
TECHNICAL DATASHEET
LED Driver
LNE-100W Series / LNE-
□
V100W
□□□
Specifications
Model Number
LNE-12V100W☐
LNE-24V100W☐
LNE-36V100W☐
LNE-48V100W☐
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range*
Nominal Input Frequency
Input Frequency Range
Input Current
Efficiency at 100% Load
115Vac
230Vac
277Vac
Max Inrush Current (Cold Start)
Power Factor at 100% Load
100-277Vac (LNE-☐V100W☐A☐)
100-240Vac (LNE-☐V100W☐C☐)
90-305Vac (LNE-☐V100W☐A☐)
90-264Vac (LNE-☐V100W☐C☐)
50-60Hz
47-63Hz
1.30A max. @ 115Vac, 0.65A max. @ 230Vac,
0.60A max. @ 277Vac
90.0% typ.
92.0% typ.
92.0% typ.
92.0% typ.
93.0% typ.
93.0% typ.
91.5% typ.
93.0% typ.
92.5% typ.
92.0% typ.
93.0% typ.
93.0% typ.
65A typ. @ 230Vac
0.98 typ. @ 115Vac
0.95 typ. @ 230Vac
0.93 typ. @ 277Vac
< 20% @ 115Vac/60 Hz & 230Vac/50 Hz (≥ 60% load)
< 20% @ 277Vac/50 Hz (≥ 75% load)
< 0.75mA @ 305Vac (LNE-☐V100W☐A☐)
< 0.75mA @ 264Vac (LNE-☐V100W☐C☐)
Total Harmonic Distortion
Leakage Current
* Output power is de-rated at low input voltage. Please refer to Fig. 2 on page 10.
2
All parameters are specified at 25°C ambient for all products unless otherwise indicated.
www.DeltaPSU.com (April 2016, Rev. 03)
TECHNICAL DATASHEET
LED Driver
LNE-100W Series / LNE-
□
V100W
□□□

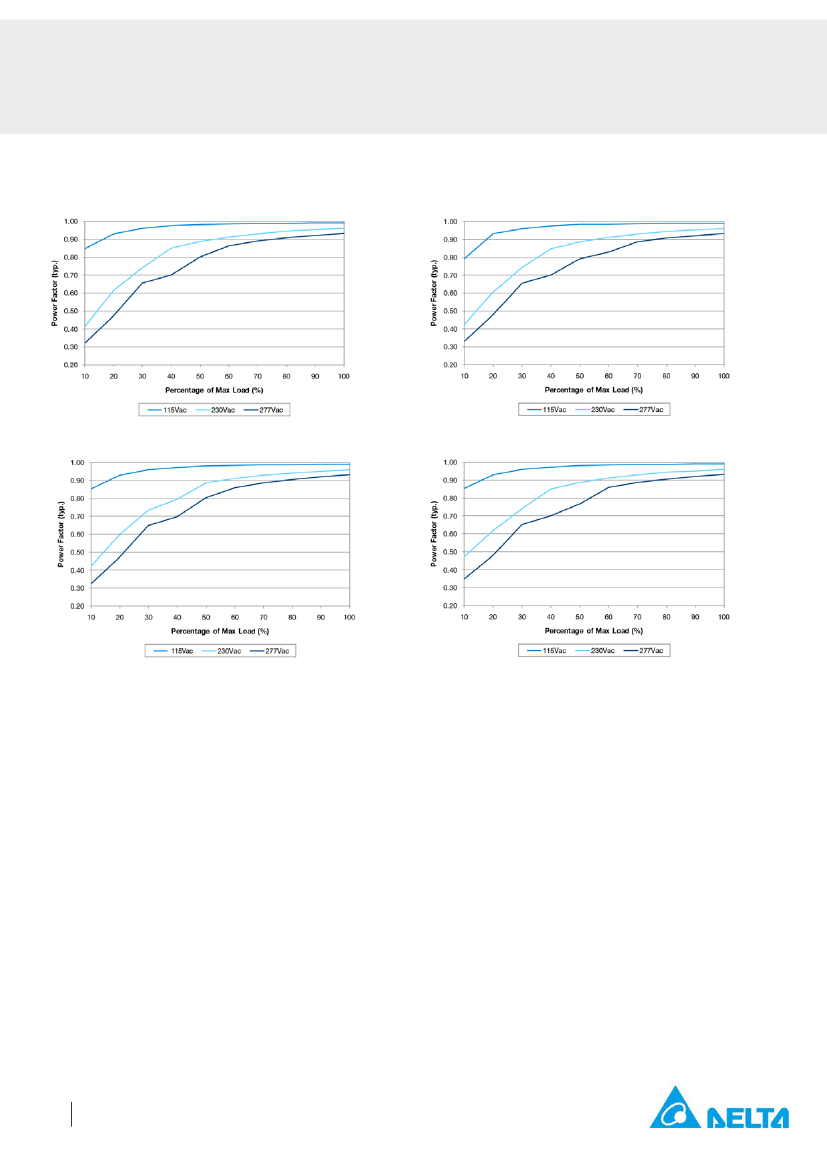

Power Factor Vs Output Load
LNE-12V100W☐
LNE-24V100W☐
LNE-36V100W☐
LNE-48V100W☐
3
All parameters are specified at 25°C ambient for all products unless otherwise indicated.
www.DeltaPSU.com (April 2016, Rev. 03)
TECHNICAL DATASHEET
LED Driver
LNE-100W Series / LNE-
□
V100W
□□□
Efficiency Vs Output Load at Nominal Output Voltage
LNE-12V100W☐
LNE-24V100W☐
LNE-36V100W☐
LNE-48V100W☐
4
All parameters are specified at 25°C ambient for all products unless otherwise indicated.
www.DeltaPSU.com (April 2016, Rev. 03)
TECHNICAL DATASHEET
LED Driver
LNE-100W Series / LNE-
□
V100W
□□□
Model Number
LNE-12V100W☐
LNE-24V100W☐
LNE-36V100W☐
LNE-48V100W☐
Output Ratings / Characteristics*
Nominal Output Voltage
LED System Voltage Range in CC Mode
Output Voltage Adjustment Range**
Nominal Output Current
Output Current Adjustment Range**
Output Power
Line Regulation
@ 90-305Vac (LNE-☐V100W☐A☐)
@ 90-264Vac (LNE-☐V100W☐C☐)
Load Regulation (0-95% load)
@ 90-305Vac (LNE-☐V100W☐A☐)
@ 90-264Vac (LNE-☐V100W☐C☐)
PARD*** (20MHz)
Rise Time
Start-up Time
Hold-up Time
Dynamic Response
(Overshoot & Undershoot O/P Voltage)
** For LNE-☐V100WA☐☐ package type only.
*** PARD is measured with an AC coupling mode, and in parallel with 0.1µF ceramic capacitor & 47µF electrolytic capacitor.
12Vdc
6-12Vdc
10.8-13.5V
8.0A
4.0-8.0A
96W
± 0.5%
24Vdc
12-24Vdc
22.0-27.0V
4.0A
2.0-4.0A
96W
36Vdc
18-36Vdc
33.0-40.0V
2.65A
1.325-2.65A
95.4W
48Vdc
24-48Vdc
43.0-53.0V
2.0A
1.0-2.0A
96W
± 2.0%
± 1.0%
± 0.5%
± 0.5%
< 150mVpp
< 150mVpp
< 200mVpp
< 200mVpp
< 50ms @ 115Vac & 230Vac & 277Vac
1200ms typ. @ 115Vac (100% load)
500ms typ. @ 230Vac & 277Vac (100% load)
16ms typ. @ 115Vac & 230Vac & 277Vac (100% load)
± 5% @ 0-90% load
,
@ 115Vac & 230Vac & 277Vac
(Slew Rate: 0.1A/µS)
* For power de-rating from 60°C to 70°C, see power de-rating at Fig.1 on page 10.
5
All parameters are specified at 25°C ambient for all products unless otherwise indicated.
www.DeltaPSU.com (April 2016, Rev. 03)
