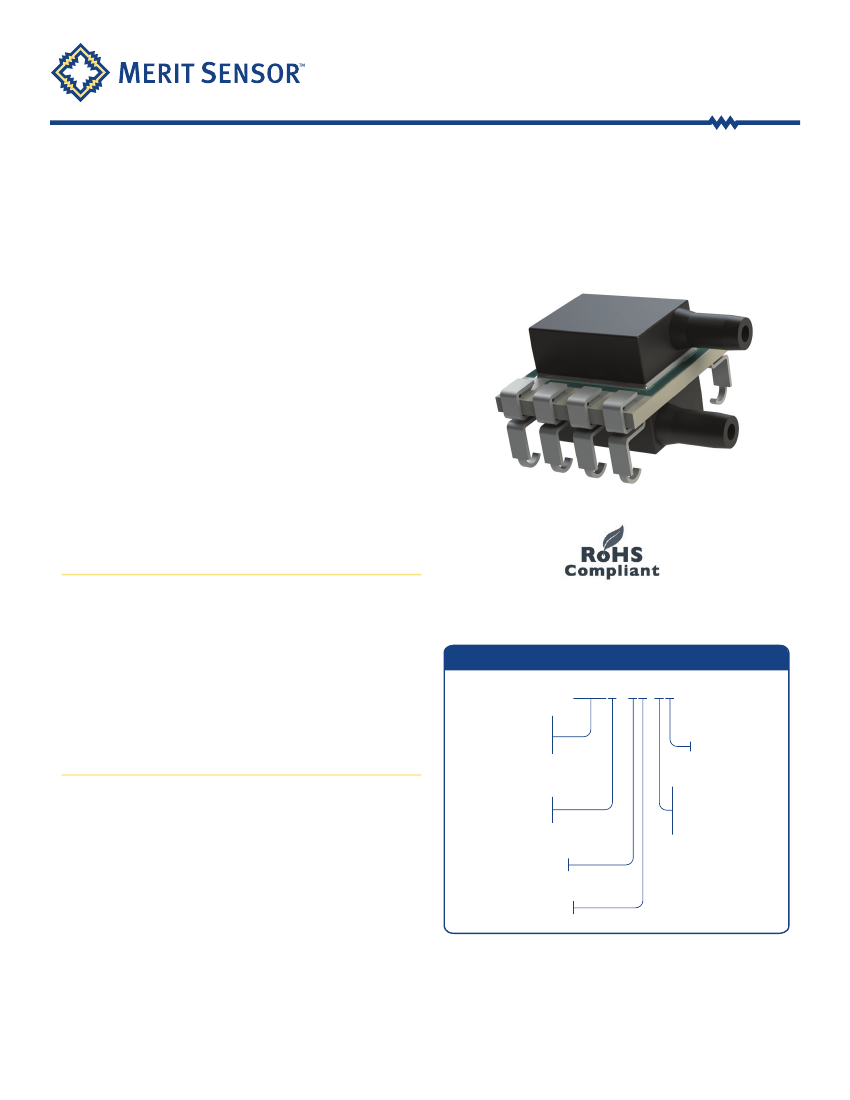

LP Series – Analog
DATA SHEET
LP Series - Analog
is a surface mountable pressure sensor package with a
compensated analog output suitable for
ultra-low pressure sensing applications.
COMPANY:
Merit Sensor is a leader in piezoresistive
pressure sensing and partners with clients to create high
performing solutions for a variety of applications and industries.
SENTIUM:
Merit Sensor products incorporate a proprietary
Sentium
®
technology developed to provide a best-in-class operating
temperature range (-40°C to 85°C) and superior stability.
TECHNOLOGY:
Merit Sensor utilizes a piezoresistive Wheatstone
bridge in a design that anodically bonds glass to a chemically etched
silicon diaphragm. All products are RoHS compliant.
CAPABILITIES:
Merit Sensor designs, engineers, fabricates, dices,
assembles, tests, sells and services die and packaged products from
a state-of-the-art facility near Salt Lake City, Utah
FEATURES
Pressure
Range
Output
Type
Media
Packaging
0.15 to 1 psi (10.3 to 68.9 mbar; 1.03 to 6.89 KPa;
4.2 to 27.7 in H
2
O)
Amplified Analog
Gage and Differential
Clean, Dry Air and Non-corrosive Gases
Tape and Reel
1410 Family
Part Number Configurator
1410-XXX
X
-XX-
XX
Pressure
P15 = .15psi
P30 = .30psi
P50 = .50psi
Reference
D = Differential
G = Gage
Supply Voltage
1 = 5.0V
Output Range
2 = 0.5V to 4.5V
Pin Type
1 = J-lead
Port
1 = Dual
horizontal, facing
same direction
Customization
Sensitivity, Resistance, Bridge, Constraint, etc.
BENEFITS
Performance
Enjoy best-in-class performance due to Merit’s
proprietary Sentium technology
Cost
Security
Save money over time with high-performing die
Feel confident doing business with an experienced
company backed by a solid parent company
(NASDAQ: MMSI)
Get to market quickly with creative and
flexible solutions
Experience prompt, personal and
professional support
Speed
Service
Sales
+1 801.208.4722
·
Customer Service
+1 801.208.4700
·
Fax
+1 801.208.4798
·
sensors@merit.com
·
www.MeritSensor.com
1600 W. Merit Parkway
·
South Jordan, Utah
·
84095
·
USA
1410seriesDS.003
LP Series – Analog
SPECIFICATIONS
Parameter
Electrical
Supply Voltage (Vdd)
Supply Current
Output Current
4.75
0.25
2.2
5
1
5.25
1.4
85
100
V
mA
mA
(1)
Minimum
Typical
Maximum
Units
Notes
Operating Temperature
Storage Temperature
Min Output Load Resistance
Recommended Input Capacitance
Performance
ADC Resolution
Ratiometric output voltage
Accuracy
Startup time
Analog update time
Sampling range
Proof Pressure
Burst Pressure
Transfer Function Formula
-40
-55
5
0.1
°C
°C
kΩ
μF
(2)
12
.5V
-1.5
5
200
5X
10psi
4.5
1.5
8
Bit
V
% FSO
ms
ms
Hz
(5)
(5)
(1)
(3) (4)
Notes:
(1)
@5V input voltage
(2)
Must be added at the
point of use
(3)
Over 0°C to 60°C
(4)
Applicable if Vdd = 4.75V
to 5.25V
(5)
Full scale pressure
Media Compatibility
For Use With Non-corrosive Dry Gasses
Solder temperature: max 250 °C, 5 seconds max

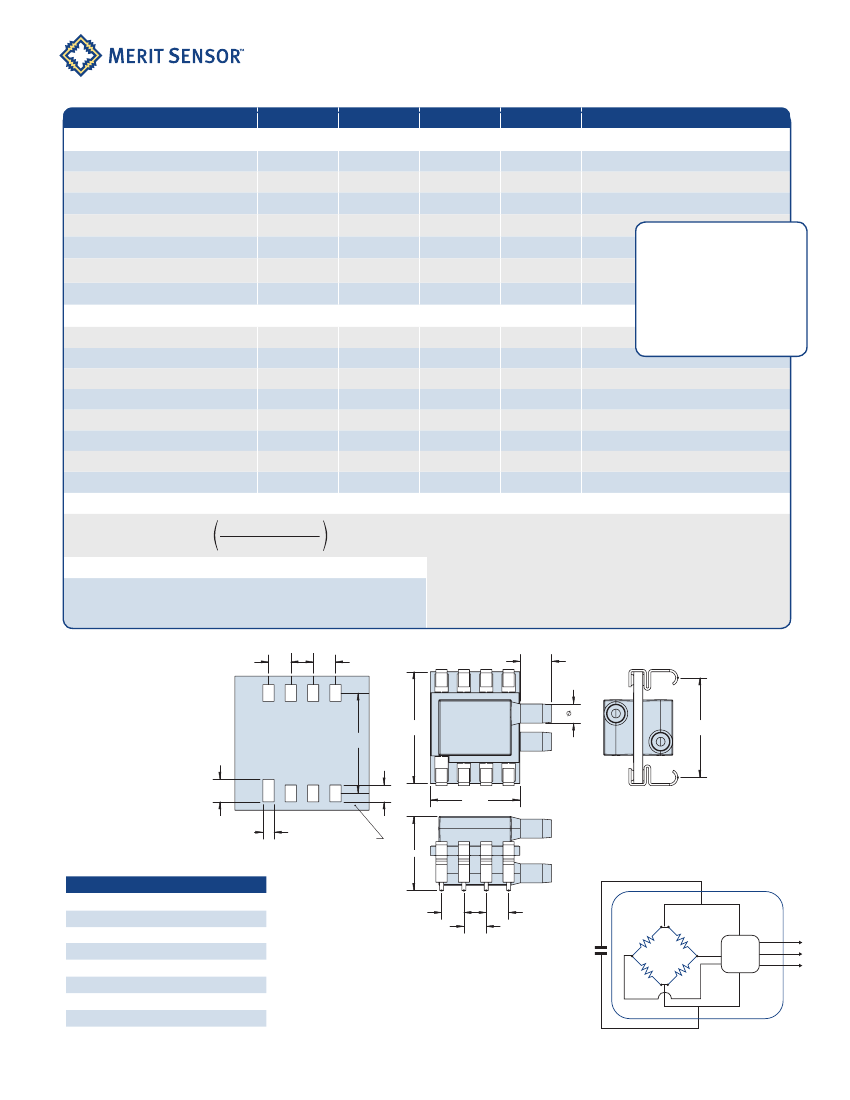

DIMENSIONS
(millimeters)
2.5
8
7
Device Pinout
P1
= Vdd
P2
= N/C
P3
= N/C
P4
= VSS - Ground
P5
= N/C
P6
= Analog output
P7
= N/C
P8
= N/C
VSS
2.5
2.5
2.5
Sales
+1 801.208.4722
·
Customer Service
+1 801.208.4700
·
Fax
+1 801.208.4798
·
sensors@merit.com
·
www.MeritSensor.com
1600 W. Merit Parkway
·
South Jordan, Utah
·
84095
·
USA
(
P
psi
=
(
P
max
– P
min
•
V
out
– V
minCompV
+ P
min
V
maxCompV
– V
minCompV
Where
P
psi
P
Max
P
Min
V
minComV
V
maxComV
V
out
= Measured Pressure in PSI
= Maximum Calibrated Pressure
= Minimum Calibrated Pressure
= Minimum Compesated Volatage (Usually 0.5V)
= Maximum Compesated Volatage (Usually 4.5V)
= Output voltage (pin 6)
2.5
2.5
8
6
5
2.2
12.7
11.4
11.3
7
6
5
3.6
1
2.5
1
2
3
4
1.9
2
3
4
10.2
1.3
SMT Landing Pad Layout
8.4
1
VDD
Typical .1µf
placed near
pins 1 and 4
SCL
8
7
6
Digital out
SSC
SDA
INT
4
LP Series – Analog
Example 1: 0.0 to 0.15 PSI Gage 0-60°C
5
Part: 1410-P15G-12-11
Calibrated Range (Pressure)
Part: 1410-P15G-12-11
P
min
=0.0 psi, P
max
=0.15 psi
Voltage
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
-0.01875
0
0.01875
0.0375
0.05625
0.075
0.09375
0.1125
0.13125
0.15
0.16875
V
out
=2.5 V
V
minCompV
= 0.5 V,
V
maxCompV
=4.5 V
PSI
=
(
0.15–0.0)
•
PSI
=.075
Example 2: -0.15 to 0.15 PSI Differential 0-60°C
5
Part: 1410-P15D-12-11
P
min
=-0.15 psi, P
max
=0.15 psi
V
out
=3.25 V
V
minCompV
=0.5 V,
V
maxCompV
=4.5 V
Voltage
PSI=
.05625
Example 3: 0.0 to .5 PSI Gage 0-60°C
5
Part: 1410-P50G-12-11
P
min
= – 0.0
psi, P
max
= 0.15
psi
V
out
= 3.70 V
V
minCompV
=.5 V,
V
maxCompV
=4.5 V
Voltage
PSI
=
(
0.5 –0)
•
PSI=
0.4
Sales
+1 801.208.4722
·
Customer Service
+1 801.208.4700
·
Fax
+1 801.208.4798
·
sensors@merit.com
·
www.MeritSensor.com
1600 W. Merit Parkway
·
South Jordan, Utah
·
84095
·
USA
(
P
psi
=
(
P
max
–
P
min
•
3.70
–
0.5
4.5
–
0.5
(
PSI=
(
0.15–(–0.15)
(
P
psi
=
(
P
max
– P
min
(
P
psi
=
(
P
max
– P
min
•
V
out
– V
minCompV
+
P
min
V
maxCompV
– V
minCompV
2.5
–
0.5
+0
4.5
–
0.5
PSI
Part: 1410-P15D-12-11
Calibrated Range (Pressure)
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
-0.01875
-0.15
-0.1125
-0.075
-0.0375
0
0.0375
0.1125
0.13125
0.15
0.16875
•
V
out
– V
minCompV
+
P
min
V
maxCompV
– V
minCompV
•
3.25
–
0.5
+(
–0.15)
4.5
–
0.5
PSI
Part: 1410-P50G-12-11
Calibrated Range (Pressure)
4.5
4
3.5
3
2.5
2
V
out
– V
minCompV
+
P
min
V
maxCompV
– V
minCompV
1.5
1
0.5
0
-0.0625
+(
0)
0
0.0625
0.125
0.1875
0.25
03.125
0.375
0.4375
0.5
0.562
PSI
