Inductors
For Power Line
SMD
FEATURES
• The product has good heat durability that withstands lead-free
compatible reflow soldering conditions.
• Lead-free material is used for the plating on the terminal.
• The NLFC series features magnetic shielding and is recom-
mended for power supply line applications.
• This product conforms to the standards that are slated to be
introduced under the RoHS Directive.
APPLICATIONS
• Audio-visual equipment including TVs, VCRs and digital
cameras.
• Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.
• Other electronic equipment including HDDs and ODDs.
SPECIFICATIONS
Operating temperature range
Storage temperature range
–40 to +85°C
[Including self-temperature rise]
–40 to +85°C
NLFC Series NLFC2016 Type
IRON SOLDERING
Tip temperature
300 to 350°C
Heating time
3 seconds/soldering
Soldering rod specifications
Output: 30W Tip diameter: 1mm
•
Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.
PRODUCT IDENTIFICATION
NLFC 201614 T- 2R2 M -PF
(1)
(2)
(3) (4) (5) (6)
(1)Series name
(2)Dimensions
201614
2.1
×
1.6
×
1.4mm (
L
×
W
×
T)
(3)Packaging style
T
Taping (reel)
(4)Inductance value
RECOMMENDED SOLDERING CONDITIONS
REFLOW SOLDERING
10s max.
255˚C
230˚C
180˚C
150˚C
Pre-heating
90 to 120s
Natural
cooling
1R0
220
1
µ
H
22
µ
H
(5)Inductance tolerance
K
M
±10%
±20%
(6) Lead-free compatible product
PF
40s max.
Lead-free compatible product
PACKAGING STYLE AND QUANTITIES
Time (s)
Packaging style
Taping
Quantity
2000 pieces/reel
FLOW SOLDERING
10s max.
260˚C max.
Natural
cooling
170˚C
150˚C
Pre-heating
60 to 120s
Time (s)
• Regarding RoHS Directive conformity: This claim is based on the individual judgment made by TDK Corporation that this product conforms to EU
Directive 2002/95/EC. This does not constitute a guarantee that the product conforms to all laws and regulations based on the RoHS Directive enacted in
individual EU member states.
• All specifications are subject to change without notice.
(2/2)
002-03 / 20040927 / e531_nlfc2016.fm
Inductors
For Power Line
SMD

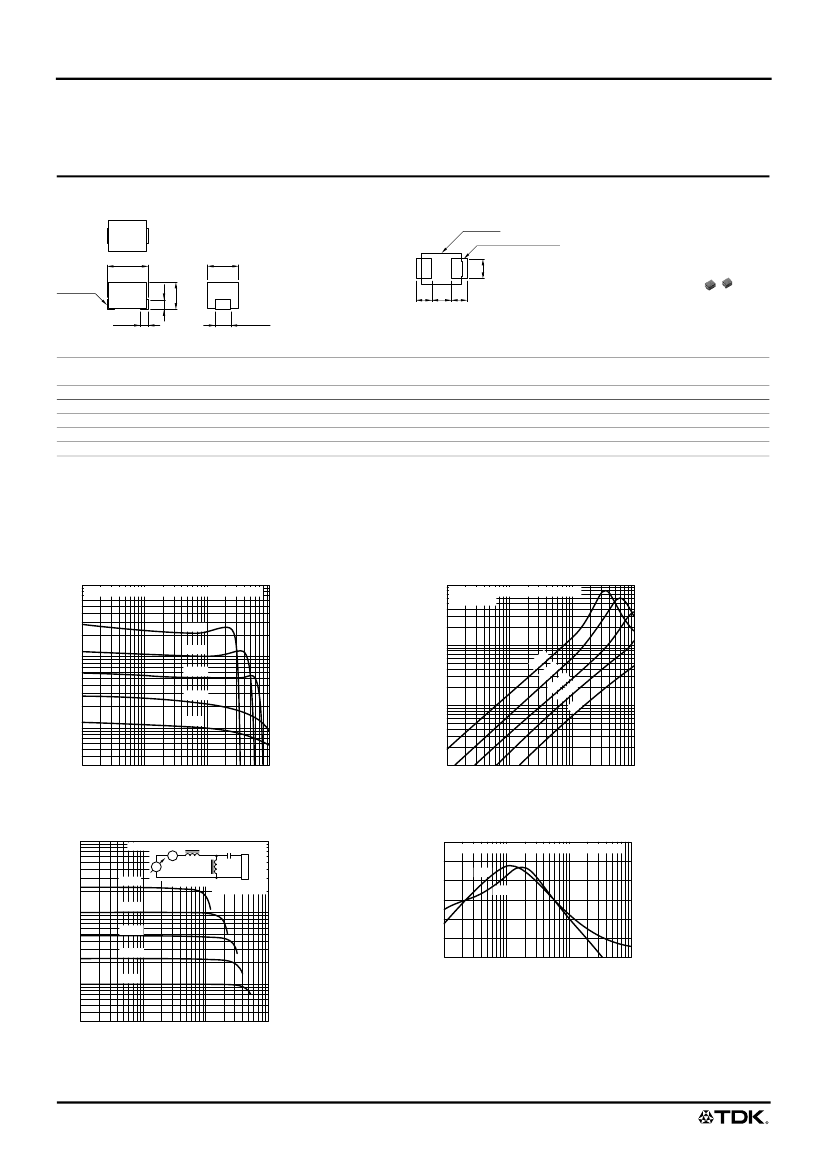

NLFC Series NLFC2016 Type
SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD PATTERN
Inductor
Solder land pattern
2.1±0.2
1.4±0.2
0.5
Terminal
electrode
(0.4)
1.6±0.2
1
0.8 1 0.8
0.8±0.1
Weight: 15mg
Dimensions in mm
ELECTRICAL CHARACTERISTICS
Inductance
Inductance
Q
Test frequency
Self-resonant frequency DC resistance
Rated current
∗
Part No.
(µH)
tolerance
ref.
L, Q (MHz)
(MHz)min.
(
Ω
)±30%
(mA)max.
1
±20%
5
7.96
100
0.16
300
NLFC201614T-1R0M-PF
2.2
±20%
5
7.96
80
0.23
240
NLFC201614T-2R2M-PF
4.7
±20%
5
7.96
45
0.4
150
NLFC201614T-4R7M-PF
10
±10%
10
2.52
32
0.7
120
NLFC201614T-100K-PF
22
±10%
10
2.52
16
1.7
75
NLFC201614T-220K-PF
∗
Rated current: Value obtained when current flows and the temperature has risen to 20°C or when DC current flows and the initial value of inductance has
fallen by 10%, whichever is smaller.
• Test equipment L, Q: YHP4194A IMPEDANCE ANALYZER+YHP16085A+YHP16093B+TF-1, or equivalent
SRF: HP8753C NETWORK ANALYZER (Zin=Zout=50
Ω
), or equivalent
Rdc: MATSUSHITA VP-2941A DIGITAL MILLIOHM METER, or equivalent
TYPICAL ELECTRICAL CHARACTERISTICS
INDUCTANCE vs. FREQUENCY CHARACTERISTICS
100
4194A IMPEDANCE/GAIN-PHASE ANALYZER
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
10k
4194A IMPEDANCE/GAIN-PHASE
ANALYZER
30
Inductance (
µH
)
3k
22µH
Impedance (
Ω
)
10µH
4.7µH
1k
10
22
300
µ
H
10
µ
H
4.
3
2.2µH
1µH
100
H
7
µ
H
2
µ
2.
H
1
µ
1
30
0.3
0.1
0.3
10
1
3
Frequency (MHz)
30
100
10
0.1
0.3
10
1
3
Frequency (MHz)
30
100
INDUCTANCE CHANGE vs. DC SUPERPOSITION
CHARACTERISTICS
100
Universal
bridge
Test circuit
DC
Q vs. FREQUENCY CHARACTERISTICS
15
L=0.1H C=20000µF
A
Specimen
4194A IMPEDANCE/GAIN-PHASE ANALYZER
1µH
30
Inductance (
µH
)
22µH
10µH
4.7µH
YHP model-4275A
or equivalent
10
22µH
Q
5
0
10
3
2.2µH
1µH
0.1
0.3
10
1
3
Frequency (MHz)
30
100
1
0.3
1
3
100
10
30
DC current (mA)
300
1000
• All specifications are subject to change without notice.
