MAPD-011007

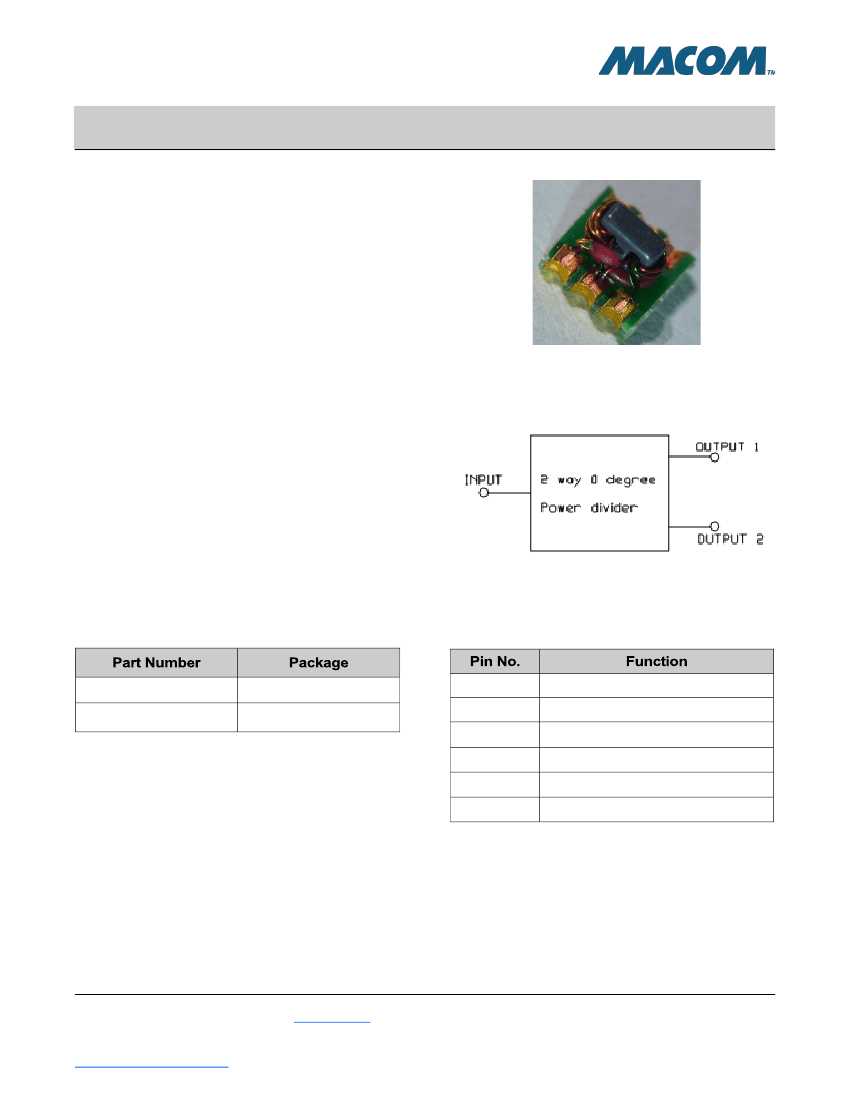

2 Way 0° Power Divider
5 - 2150 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 75
Ω,
P
IN
= 0 dBm
Rev. V4
Impedance
Power Split
Insertion Loss 1
(pin 6 - pin 4)
Insertion Loss 2
(pin 6 - pin 3)
—
—
5 - 1002 MHz
1003 - 1218 MHz
1218 - 1600 MHz
1600 - 2150 MHz
5 - 1002 MHz
1003 - 1218 MHz
1218 - 1600 MHz
1600 - 2150 MHz
5 - 1002 MHz
1003 - 1218 MHz
1218 - 1600 MHz
1600 - 2150 MHz
5 - 1002 MHz
1003 - 1600 MHz
1600 - 2150 MHz
5 - 1002 MHz
1003 - 1600 MHz
1600 - 2150 MHz
5 - 1002 MHz
1003 - 1600 MHz
1600 - 2150 MHz
5 - 1002 MHz
1003 - 1600 MHz
1600 - 2150 MHz
5 - 10 MHz
10 - 65 MHz
66 - 870 MHz
871 - 1002 MHz
1003 - 1600 MHz
1600 - 2150 MHz
Ω
dB
dB
—
—
—
75
3
0.3
0.5
0.6
1.0
0.6
0.8
1.0
1.5
0.3
0.3
0.3
0.5
0.8
1.0
0.2
39
22
18
28
18
14
40
22
18
30
42
34
31
31
24
—
—
0.7
1.0
1.2
2.0
1.0
1.2
1.6
3.2
0.5
0.5
0.5
1.5
4.0
6.0
7.0
—
—
—
dB
—
Amplitude Balance
dB
—
Phase Balance
Input Return Loss (pin 6)
Output Return Loss (pin 4)
Output Return Loss (pin 3)
degree
dB
dB
dB
—
20
14
11
17
13
9
20
15
12
24
30
26
24
22
15
Isolation (pin 4 - pin 3)
dB
—
Recommended Maximum Ratings
Input RF Power
DC Current
0.5 W
500 mA
Operating Temperature
-40°C to +85°C
2
1. Exceeding any one or combination of these limits may cause
permanent damage to this device.
2. MACOM does not recommend sustained operation near these
survivability limits.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAPD-011007
2 Way 0° Power Divider
5 - 2150 MHz

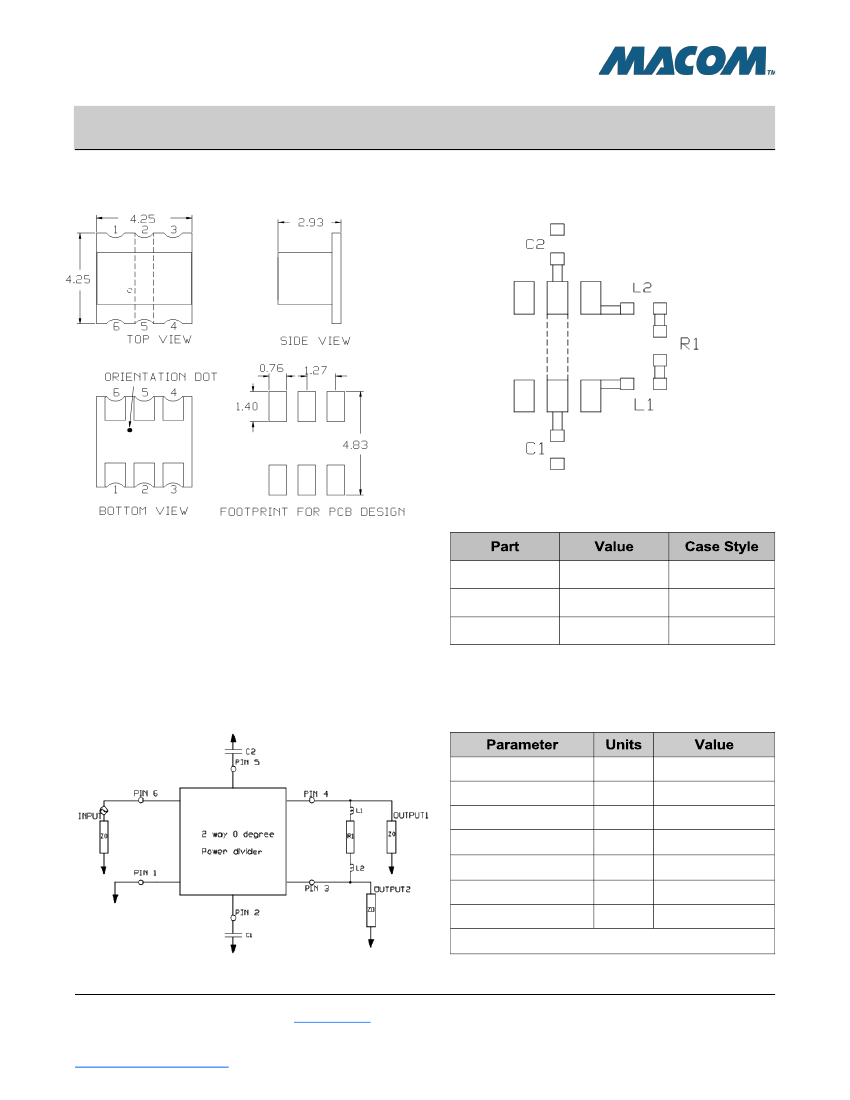

Outline Drawing
Recommended Layout
Rev. V4
Component List
Dimensions in mm.
Tolerance: ±0.2mm unless otherwise noted.
Model number and lot code are printed on the reel.
Plating finish: ENIG on both sides, 0.05 to 0.1 µm gold over 3 to
6 µm nickel
C1, C2
L1, L2
R1
0.5 pF
8.2 nH
240
Ω
0402
0402
0402
Application Circuit
Tape & Reel Information
Reel size
Tape width (W)
Pitch (P
1
)
A
0
B
0
K
0
Orientation
mm
mm
mm
mm
mm
mm
-
330
12.00
8.00
4.5
4.5
3.2
F18
Reference Application note ANI-019 for orientation
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAPD-011007
2 Way 0° Power Divider
5 - 2150 MHz

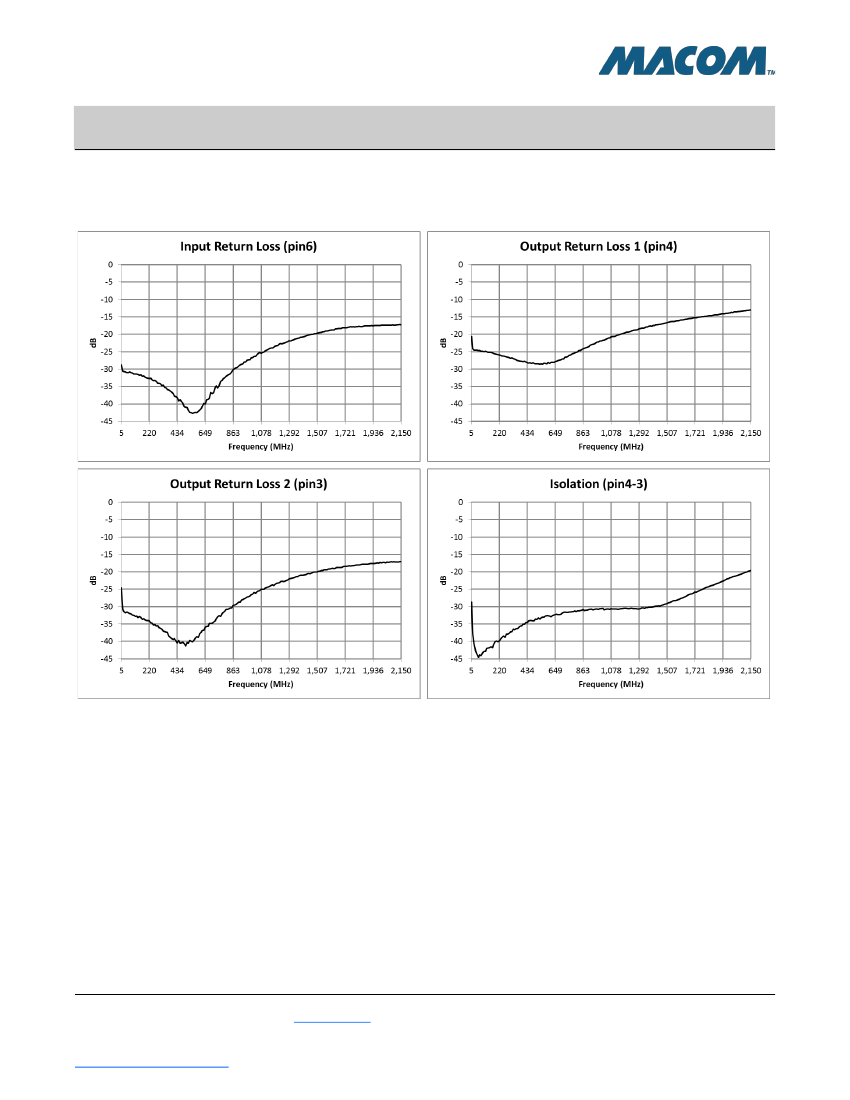

Typical Performance Curves: Z
0
= 75
Ω,
T
A
= 25°C, P
IN
= 0 dBm
Rev. V4
Full temperature plots available on request
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAPD-011007
2 Way 0° Power Divider
5 - 2150 MHz

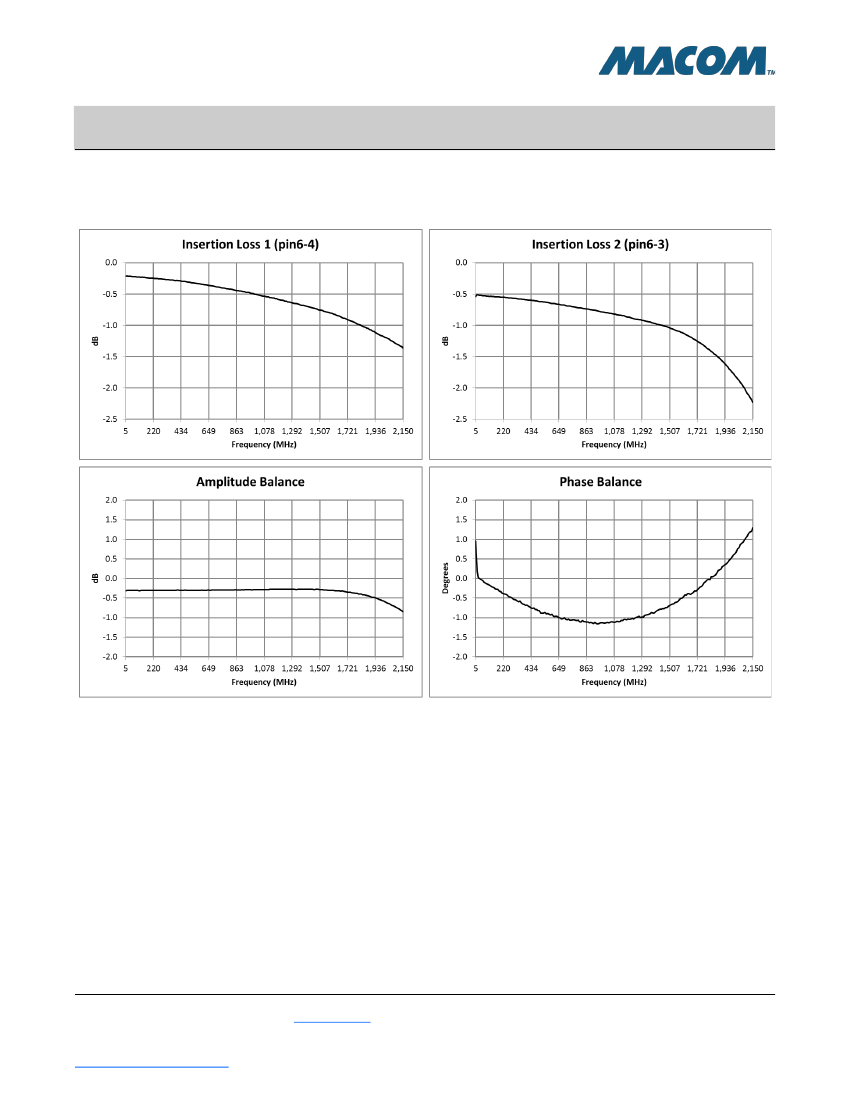

Typical Performance Curves: Z
