-008177 is ideally suited for applications where low
control voltage, low insertion loss, high isolation,
small size and low cost are required. Typical
applications are to replace mechanical relays in
CATV systems. This part can be used in all 75 ohm
systems operating up to 1.0 GHz.
The MASW-008177 is fabricated using a 0.5 micron
gate length GaAs PHEMT process. The process
features full passivation for performance and
reliability.
N/C
V1
Pin Configuration
2
Pin No.
1
2
3
4
5
Pin Name
GND
RF1
G1
V1
N/C
V2
GND
RF2
GND
N/C
N/C
GT1
V2
Description
Ground
RF In
RF Ground
Control 1
No Connection
Control 2
Ground
RF Out
Ground
No Connection
No Connection
RF Ground
Ordering Information
Part Number
MASW-008177-000000
MASW-008177-TR1000
MASW-008177-TR3000
MASW-008177-001SMB
1
6
Package
Bulk Packaging
1000 piece reel
3000 piece reel
5-1000 MHz Configuration,
Sample Board
7
8
9
10
11
12
1. Reference Application Note M513 for reel size information.
2. The exposed pad centered on the package bottom must be
connected to both RF and DC ground.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-008177
SPST High Isolation CATV Switch
5 - 1000 MHz
Electrical Specifications: T
A
= 25°C, V
C
= 0V / 5V, Z
0
= 75
Parameter
Insertion Loss
Isolation
Return Loss (On)
Return Loss (Off)
(RF1 only)
IP3
Trise, Tfall
Ton, Toff
Transients
Control Current
Rev. V1
Test Conditions
5 - 50 MHz
50 - 1000 MHz
5 - 50 MHz
50 - 1000 MHz
5 – 50 MHz
50 – 1000 MHz
5 – 50 MHz
50 – 1000 MHz
Two Tone, +10 dBm / tone, 6 MHz Spacing, > 50 MHz
10% to 90% RF, 90% to 10% RF
50% control to 90% RF, and 50% control to 10% RF
In Band
|Vc| = 5V
Units
dB
dB
dB
dB
dB
dB
dB
dB
dBm
nS
nS
mV
µA
Min.
—
—
—
50
—
—
—
—
—
—
—
—
—
Typ.
0.45
0.65
70
53
30
16
30
18
52
20
40
30
10
Max.
—
0.9
—
—
—
—
—
—
—
—
—
—
25
3. External DC blocking capacitors are required on all RF ports.
Absolute Maximum Ratings
4,5
Parameter
Input Power
(5 - 1000 MHz, 2.5V Control)
Operating Voltage
Operating Temperature
Storage Temperature
Truth Table
6
V1
1
0
o
o
Absolute Maximum
+32 dBm
+8.5 volts
-40 C to +85 C
-65 C to +150 C
o
o
V2
0
1
RF1—RF2
On
Off
6. 0 = 0 V +/- 0.2 V; 1 = +2.5 V to +5.0 V.
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. M/A-COM does not recommend sustained operation near
these survivability limits.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-008177
SPST High Isolation CATV Switch
5 - 1000 MHz

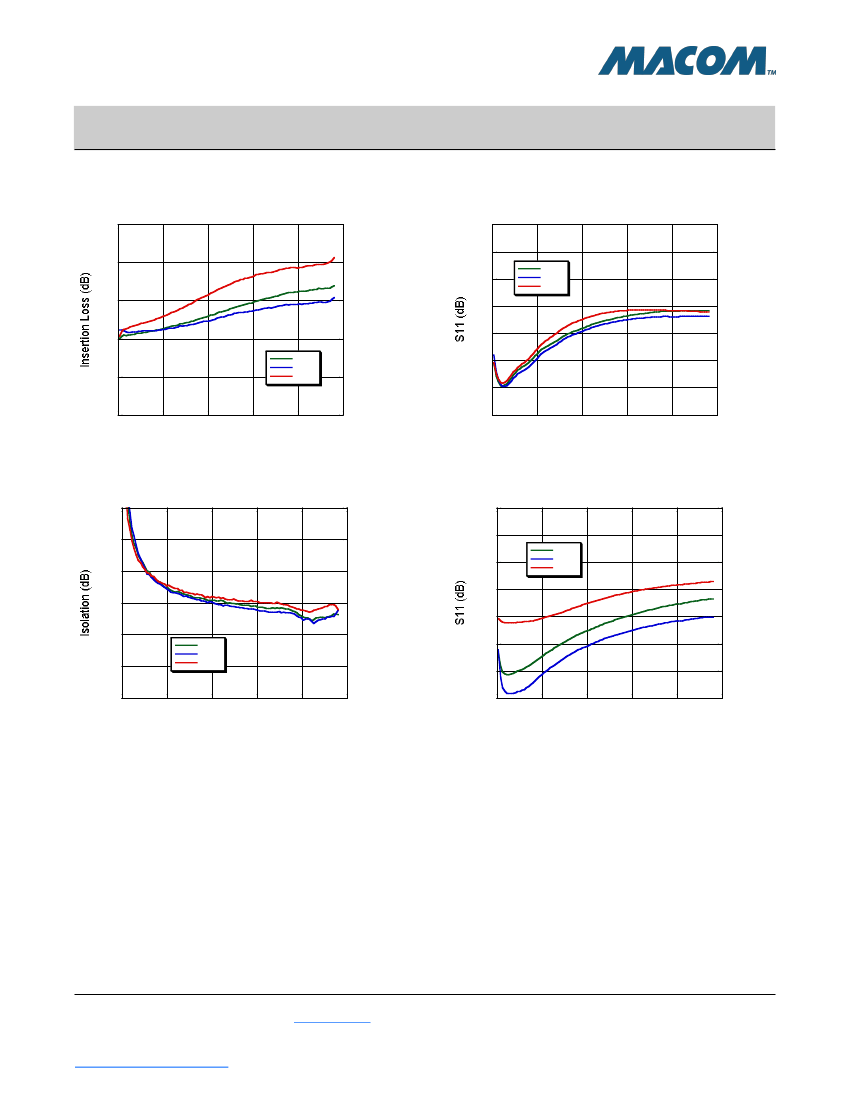

Typical Performance Curves
Insertion Loss vs. Frequency over Temperature
1.0
Rev. V1
S11 (Switch On) vs. Frequency over Temperature
0
-5
0.8
-10
0.6
+25°C
-40°C
+85°C
-15
-20
+25C
-40°C
+85°C
0.4
-25
-30
0.2
0.0
0
250
500
750
1000
1250
-35
0
250
500
750
1000
1250
Frequency (MHz)
Frequency (MHz)
Isolation vs. Frequency over Temperature
70
S11 (Switch Off) vs. Frequency over Temperature
0
-5
-10
-15
+25°C
-40°C
+85°C
65
60
55
-20
50
+25°C
-40°C
+85°C
-25
-30
-35
45
40
0
250
500
750
1000
1250
0
250
500
750
1000
1250
Frequency (MHz)
Frequency (MHz)
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-008177
SPST High Isolation CATV Switch
5 - 1000 MHz

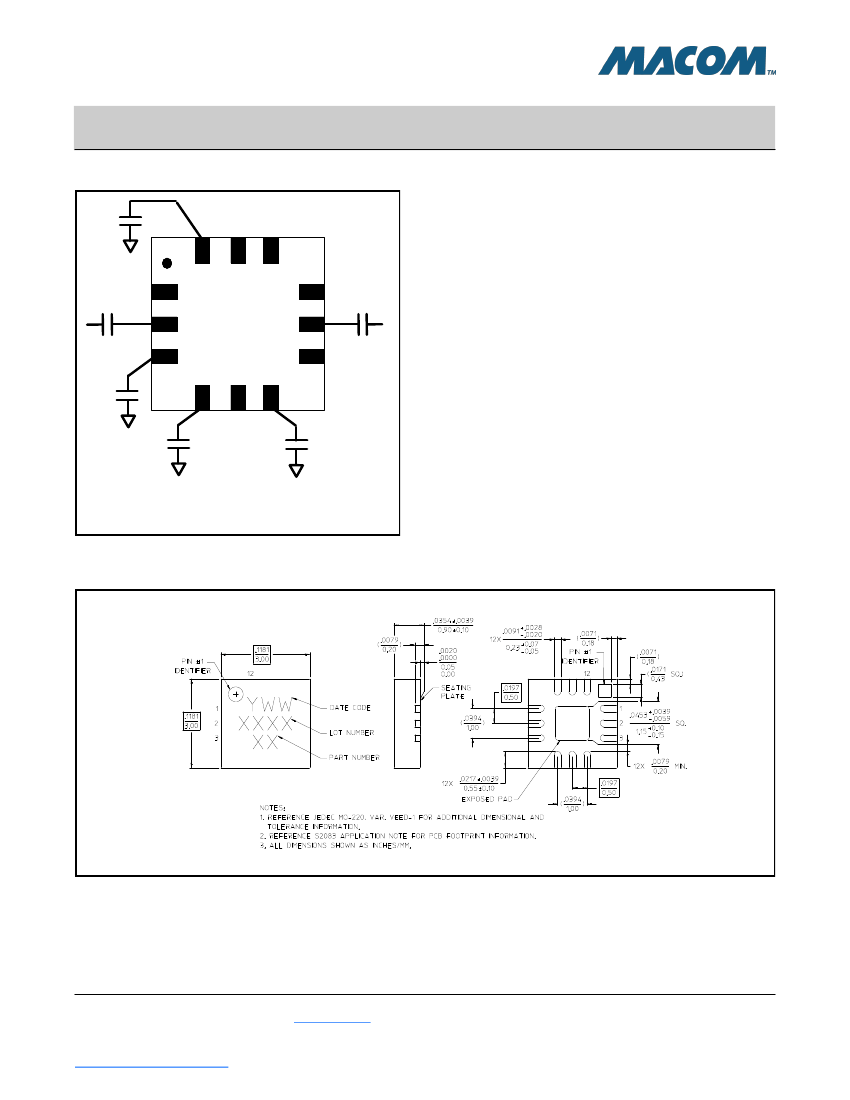

Application Schematic
Qualification
GND
GND
GT1
Rev. V1
C3
Qualified to M/A-COM Specification Rel 201,
Process Flow –2.
Handling Procedures
C1
GND
RF1
G1
GND
RF2
GND
C2
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium arsenide integrated circuits are sensitive to
electrostatic discharge (ESD) and can be damaged
by static electricity. Use proper ESD control
precautions when handling these devices.
GND
C4
C5
V1
C6
C1 – C4 = 0.01 uF, DC Blocking Capacitors
C5, C6 = 0.01 uF, Logic Control Decoupling Capacitors
Lead-Free
3 mm 12-Lead PQFN
†
†
Reference Application Note M538 for lead-free solder reflow recommendations.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
V2
MASW-008177
SPST High Isolation CATV Switch
5 - 1000 MHz
Rev. V1
