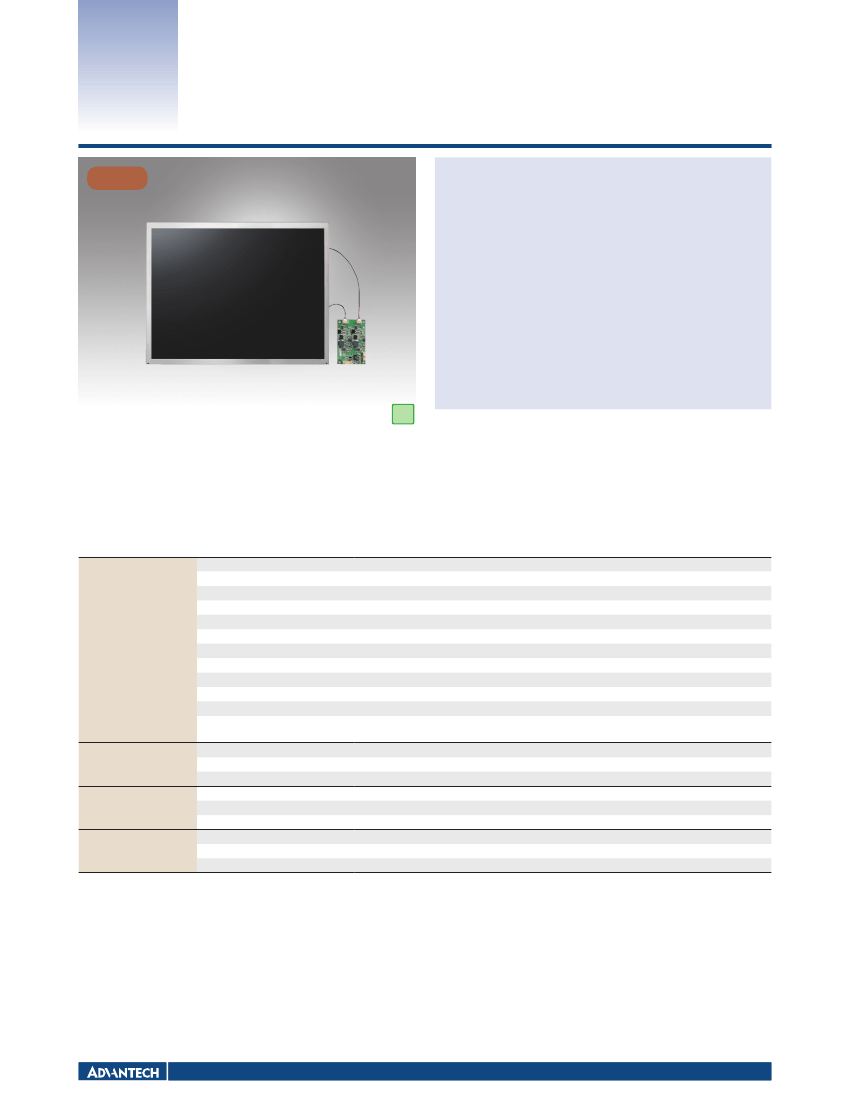

IDK-2119
NEW
Features
19" 1,200 cd/m
2
Ultra High
Brightness Industrial Display
Kit with LED B/L
19" LCD supports 1280 x 1024 pixels and wide operating temperature
(0 ~ 50° C)
Ultra-high brightness of 1200 cd/m
2
with LED backlight
High contrast ratio of 1000:1
High uniformity of 85%
Superior sunlight readability
LVDS signal interface
Low power consumption 35.42 W
AR surface treatment (optional)
Manually VR brightness control (optional)
Auto-dimming solution with light sensor (optional)
Optical bonding (optional)
RoHS
COMPLIANT
2002/95/EC
Introduction
The Advantech IDK-2119 series comes with a 19" 1200 cd/m
2
industrial grade LCD display, and an LED driver board. The series is also available with flexible options for touch
screens and enhanced treatment such as AR surface treatment and optical bonding solution. IDK-2119 series supports 1200 cd/m2 high brightness with low power consumption at
the maximum consumption of 35.42 W. Equipped with high level of brightness and wide operating temperature, IDK-2119 provides superior sunlight readability and is perfect for
applications whether in semi-outdoor or outdoor environments.
Specifications
Display Size
Resolution
Viewing Angle (U/D/L/R)
Brightness
Contrast Ratio
Response Time (ms)
Colors
Voltage
Power Consumption
Signal Interface
Weight
Dimensions (W x H x D)
LED Driver Board
Efficiency
Output Current & Voltage
Dimensions (W x H x D)
Touch Screen
Light Transmission
Durability
Operating Temperature
Storage Temperature
Humidity
19" LED backlight panel
1280 x 1024
80° / 80° / 85° / 85°
1200 cd/m
2
1000 : 1
5 ms
16.7 M
5V
35.42 W
2 channel LVDS
N series: 2500 g (N series)
N series: 396 x 324 x 17.8 mm
R series: 396 x 324 x 21.7 mm
85%
1500 mA / 24 V (Max.)
80 x 54.2 x 6.5 mm
5-Wire Resistive
81± 3%
10 millions times
0 ~ 50° C
-20 ~ 60° C
5 ~ 95% @ 40° C, non-condensing
LCD Panel
Touch Screen (R series)
Environment
Industrial Display Solutions
All product specifications are subject to change without notice
Last updated : 24-Jul-2014
IDK-2119
Dimensions
IDK-2119N Series
396.00±0.5 (LCM Outline)
(17.80)
9.84
376.32±0.2(Active Area)
324.00±0.5 (LCM Outline)
M3 User Hole -4x
Depth=4.0mm Max
Unit: mm
301.06±0.2(Active Area)
174
AA center
192.00
245±10
66.00
75
(8.80)
11.57
(8.80)
IDK-2119R Series
M3 User Hole -4x
Depth=4.0mm Max
(21.70)
161.89±1
393.40±0.3 (T/S Outline)
377.30±0.2(Active Area)
2.55
396.00±0.5 (LCM Outline)
324.00±0.5 (LCM Outline)
302.05±0.2(Active Area)
316.65±0.3 (T/S Outline)
174
AA center
75
(8.80)
3.78
(8.80)
Ordering Information
Part No.
IDK-2119N-K2SXA2E
IDK-2119R-K2SXA2E
Size
19"
19"
Brightness (cd/m
2
)
1200
1200
Interface
LVDS
LVDS
Touch screen
N/A
5-Wire Resistive
Touch Interface
N/A
USB
Packing List
Part Number
Description
ETM-RES04C-EEH4EE
1 x 5-wire USB touch controller
1700020324-01
1 x USB cable for Touch controller
Note: Package contents are subject to change without prior notice
Optional Order
SBC Part
No.
MIO-5270
LVDS cable P/N
96CB-L3040PAF5
Display
interface
Dual channel
24bit LVDS
(SXGA)
Dual channel
24bit LVDS
(SXGA)
LVDS 1
B/L cable P/N
Touch
Touch
power
interface
input
5V
25
0±
10
304.95±6
245±10
25
0±
10
96CB-E0605HAB1 USB
AIMB-214
96CB-L3040PAF5
96CB-E0605HAB1 USB
5V
Online Download
www.advantech.com/products
