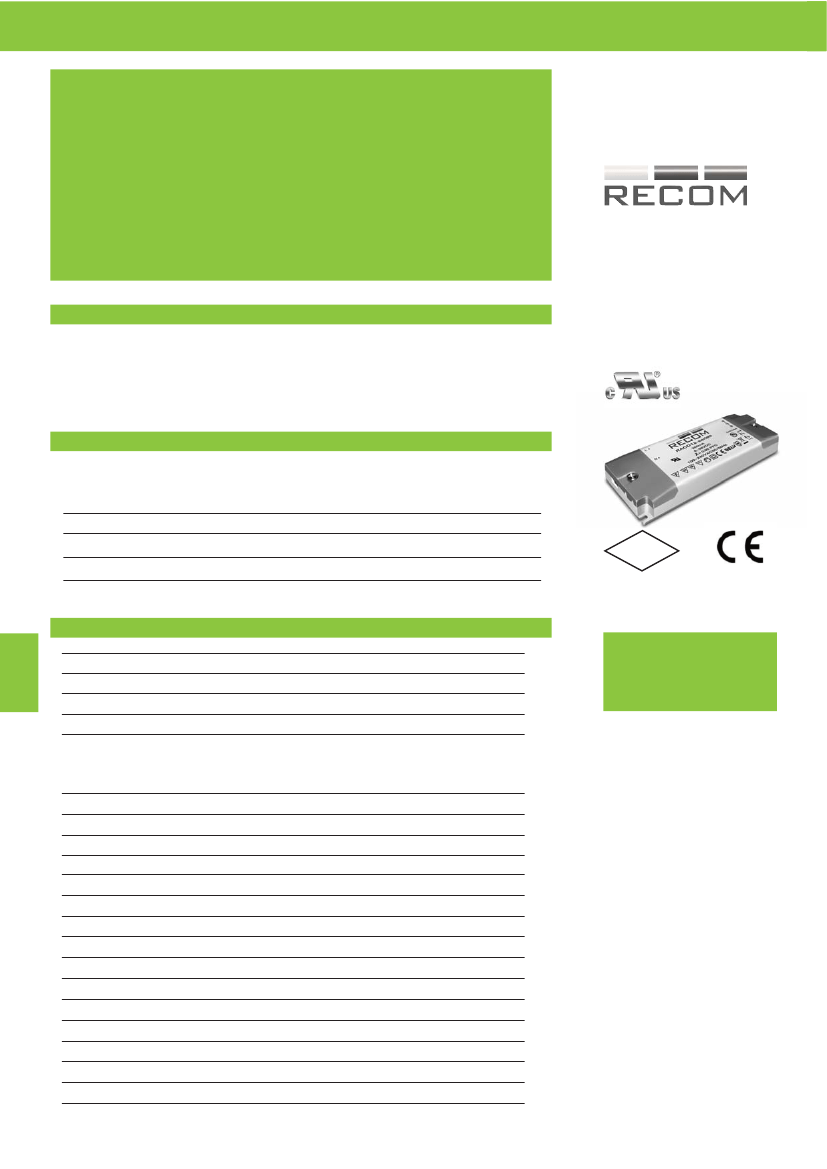

Features
LED
DRIVER
●
●
●
●
●
●
●
●
●
●
●
12W Class II AC/DC LED Power Supply
350mA or 700mA Constant Current Output
Drives 1 - 10 High Brightness LEDs
Universal AC Input
Active Power Factor Corrected >0.95
Fused Input, Protected Output
3kVAC Input/Output Isolation
Output Socket Connector
cUL/UL-8750 Certified
Low Cost
Long 5 Year Warranty
LIGHTLINE
AC/DC-Converter
with 5 year Warranty
Description
A compact 12W constant current switching power module suitable for driving up to ten high power LEDs (Vf = 3.6V).
The output current is fixed at 350mA, 500mA or 700mA. Active power factor correction is standard and the converters
are UL8750 certified for use with LED assemblies. The driver modules features both screw terminal and socket output
connections. The socket connecter avoids the possibility of miswiring and damaging the LED load if the LEDs are pre-
assembled into a wiring harness or lamp fitting.
12 Watt PFC
Single
Output
E340696
Selection Guide
Part
Number
RACD12-350
RACD12-500
RACD12-700
Nominal
Input Voltage
(VAC)
universal
universal
universal
Input Current
at 230VAC
(mA)
200
200
200
Output
Output
Voltage Range Current
(VDC)
(mA)
3-36
3-24
3-17
350
500
700
Max
#
LEDs
10 x 1W
6 x 2W
4 x 2W, 8 x 1W
2002/95/EC
6/6
RoHS
Specifications
(typical at 25°C and after warm up time unless otherwise specified )
RACD12
Input Voltage Range
Rated Power
Input Frequency Range
Power Factor
Open Circuit Voltage
(Zener Clamp)
Inrush Current (<2mS)
Input Current
Leakage Current
Input Fuse
Output Current Accuracy
Minimum Load
Output Ripple
Hold Up Time
Operating Frequency
Efficiency at Full Load
RMS Isolation Voltage (input to output)
Temperature Coefficient
Overload Protection
Short Circuit Protection
Output Overvoltage Protection
Full Load, 115VAC/230VAC
350mA Version
500mA Version
700mA Version
115VAC/230VAC
230VAC, Full Load
115VAC/240VAC - 60/50Hz
Standard
(combined Tolerance, Load Regulation and Line Regulation)
Open Circuit Protected
90VAC-264VAC
12 Watts max.
47-63 Hz
0.95
39VDC
26VDC
19VDC
10A max.
200mA max.
0.5mA typ.
T1A
±10%.
1 LED
150mA max.
18ms min.
50-120kHz typ.
78%
3kVAC / 1 minute
±0.02%/°C typ.
120% typ.
Continuous Current Limit
Zener Diode Clamp
continued on next page
18
REV: 3/2011
UL-8750 Certified
cUL-8750 Certified
EN 61347 Certified
RACD12
Please Read Application Notes
www.recom-electronic.com
LIGHTLINE
AC/DC-Converter
Specifications
cont.
(typical at 25°C and after warm up time unless otherwise specified )
Overtemperature Protection
Operating Temperature Range
(free air convection)
Weight
Packing Quantity
Storage Temperature Range
Humidity
IP Rating
PCB Material
Case Material
Designed to meet Standards
RACD12
Shutdown, Automatic restart after cooling down
Ambient Temperature
-20°C to +50°C
Case Temperature
85°C max.
100g
1pc
-40°C to +100°C
95% RH max.
IP20, Indoor Use Only
Plastic Resin with Fibreglass (UL94V-0)
Plastic
Electrical Lighting, EMC Emissions
EN55015:2006 + A1: 2007 + A2:2009
Limits for Harmonics Emissions
EN 61000-3-2:2006
EMC Compatibilty: Flicker and Voltage Variations
EN 61000-3-3:2006
Electrical Lighting: EMC Immunity
EN 61547:1995 + A1:2000
Class II Power Supply Safety
complies with UL1310
FCC
complies with FCC18A
<20%
LED Lighting Safety
UL8750
LED Lighting Safety (Canada)
cUL8750
SEMKO CE Certification, General Safety
EN 61347-1: 2008
SEMKO CE Certification, Safety of AC supplied Control Gear for LED Modules
EN 61347-2-13: 2006
25°C ambient
AC Input
LED Output
LED Output
>70 x 10³ hours in operation
Screw terminal
Screw Terminal
5.5mm Socket with 2mm Pin (Suitable matching plug Switchcraft S760 or similar)*
THD
Certifications
Design Lifetime
Connections
RACD12
* Do not connect or disconnect the LED load while the converter is on. This may damage the LED or reduce its life.
Package Style and Pinning
117
26
45.0
3rd angle
projection
5.5mm socket
Tc
39
Cable entry
with strain relief
Connections
3.5mm dia.
123.0
70
CN1
L
N
Function
VAC in (L)
VAC in (N)
Function
LED+
LED-
15.5
18.5
CN2
+
-
2 Mounting screws are included
Tc= Case Temperature Measuring Point
5.5mm Socket* Function
Pin
Shell
Tolerenace
XX = +/-0.5mm
XX.X =+/-0.25mm
LED+
LED-
www.recom-international.com
REV:3/2011
19
