SMD Power Choke (Shielded)—
CSN0410H series
A. Electrical specifications:
Part No.
CSN0410H-2R2M
CSN0410H-3R3M
CSN0410H-4R7M
CSN0410H-6R8M
CSN0410H-100M
CSN0410H-150M
CSN0410H-220M
CSN0410H-330M
CSN0410H-470M
CSN0410H-560M
CSN0410H-680M
CSN0410H-820M
CSN0410H-101M
Mark
2R2
3R3
4R7
6R8
100
150
220
330
470
560
680
820
101
L (uH)
2.2
3.3
4.7
6.8
10
15
22
33
47
56
68
82
100
Test Freq.
100 KHz
100 KHz
100 KHz
100 KHz
100 KHz
100 KHz
100 KHz
100 KHz
100 KHz
100 KHz
100 KHz
100 KHz
100 KHz
DCR (max)
Ω
0.12
0.17
0.22
0.30
0.46
0.68
1.07
1.65
2.84
3.20
3.70
4.69
5.21
I rms. (mA)
950
770
750
620
500
400
300
240
180
150
130
110
100

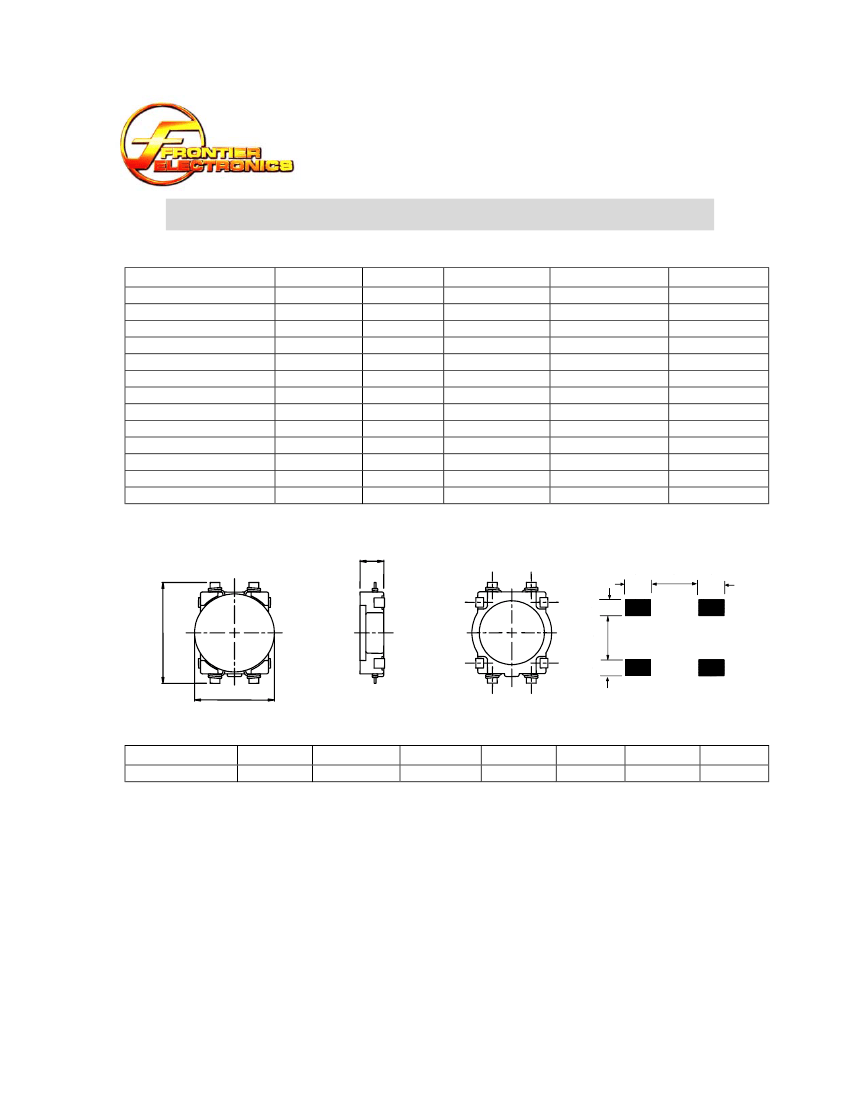

B. Mechanical dimensions: (Unit: mm)
C
F
E
G
F
XXXX
A
D
E
B
SERIES #
CSN0410H
A
5.8 Max.
B
4.1 ± 0.30
C
1.20 Max.
D
2.40
E
0.80
F
1.40
G
2.5
C. Features:
•
•
•
•
Tolerance: M: ± 20%.
Operating temperature: -25ºC TO +85ºC.
Inductance measured on the HP4284A or HP4285A LCR meter.
DCR measured on the 502BC milli-ohm meter.
•
•
•
Inductance drops no more than 10% at rated current applied or temperature rises
∆
t < 40ºC.
Very low profile used for DC-DC converter, LCD driver power supply, Notebook PC, and Electro-
Luminescent backlight for Digital Video Camera, Digital Still Camera, GPS, PDC etc. Portable
equipment.
Inductance range: CSN0410H-series From 2.2uH(0.950A) to 100uH(0.100A).
D.
Note:
RoHS
compliant; for the
ROHS
parts, we add “-LFR” at the end of the P/N.
SMD Power Choke: P/N CSN0410H-series
Rev. A
Jan. 01, 2006. Page: 1 of 2
Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998
FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web: frontierusa.com
SMD Power Choke—
CSN0410H series

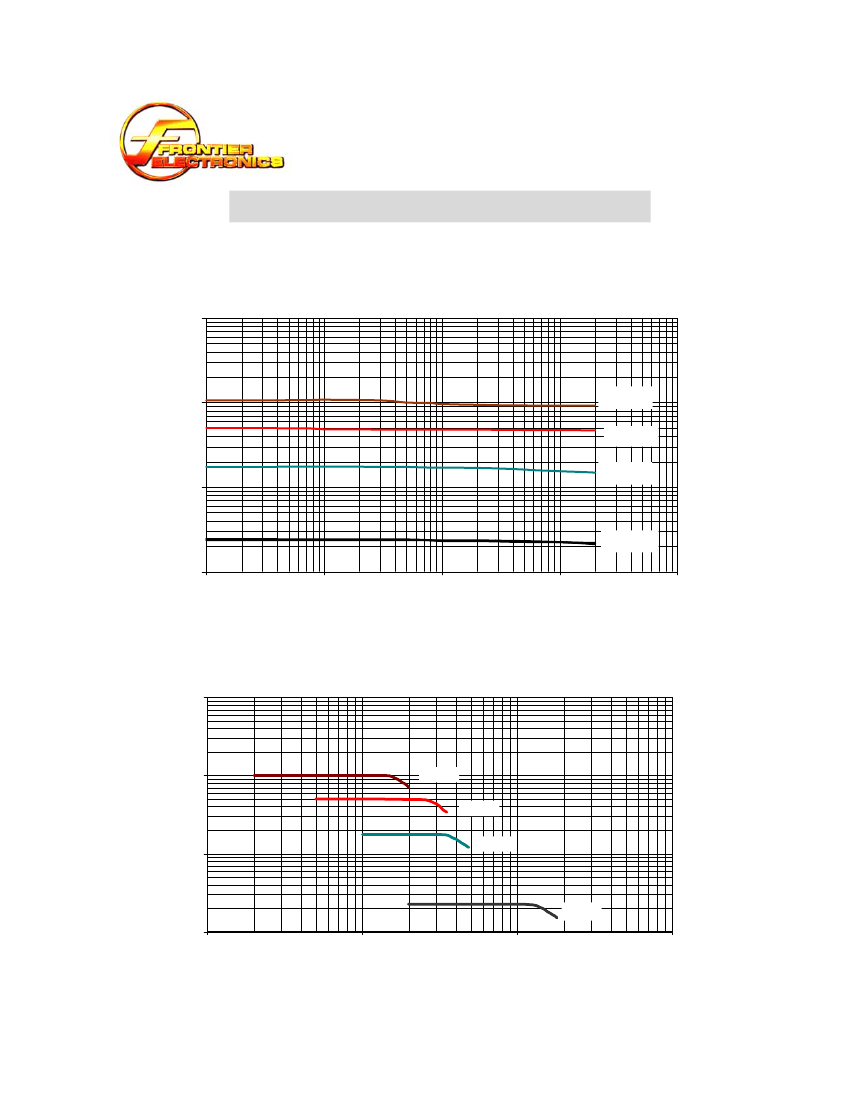

D. Characteristic curve:
