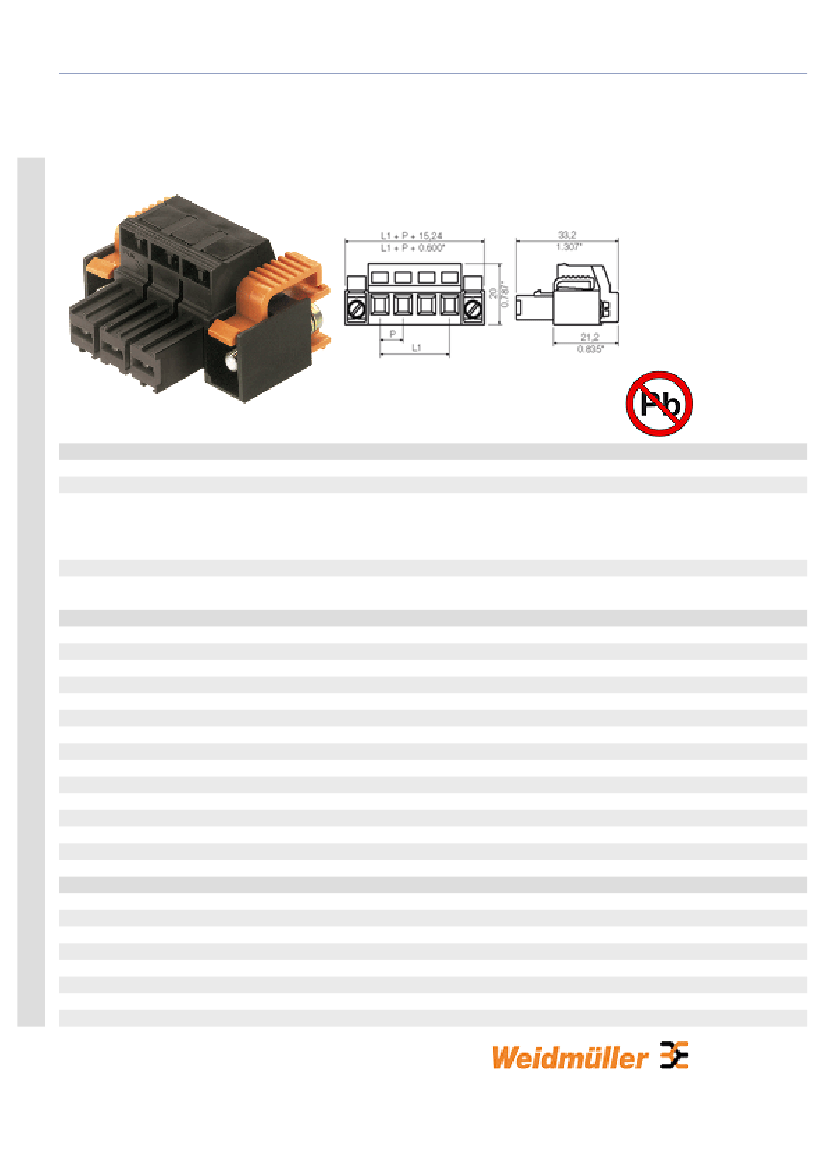

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Socket
connectors, tension spring connection, pitch 7.62 | BVZF 7.62 | BVZF 7.62/180SF
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1853280000
BVZF 7.62/11SF SW
PCB plug-in connector, Female connectors,
Tension clamp connection, Clamping range, max.:
6 mm², Pitch: 7.62 mm, No. of poles: 11, 180°,
Box
4032248388004
50 pc(s).
Tension clamp connection
180°
7.62 mm
0.3 inch
11
1
0.8 x 4.0
DIN 5264-A
M 2.5
8 mm
76.2 mm
3 inch
IP 20
Safe from finger touch
PBT
black
Similar to RAL 9011
IIIa
V-0
>= 200
Copper alloy
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Socket
connectors, tension spring connection, pitch 7.62 | BVZF 7.62 | BVZF 7.62/180SF
Material data
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
0.2 mm²
6 mm²
22
10
0.2 mm²
6 mm²
0.5 mm²
6 mm²
0.25 mm²
4 mm²
0.25 mm²
4 mm²
2.8 mm x 2.0 mm; 2.4 mm
38 A
31 A
33 A
27 A
800 V
630 V
500 V
6 kV
6 kV
6 kV
3 x 1s with 420 A
300 V
27 A
600 V
5A
22
10
300 V
27 A
600 V
5A
22
10
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Socket
connectors, tension spring connection, pitch 7.62 | BVZF 7.62 | BVZF 7.62/180SF
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1853210000
1853220000
1853230000
1853240000
1853250000
1853260000
1853270000
1853290000
Part designation
BVZF 7.62/04SF SW
BVZF 7.62/05SF SW
BVZF 7.62/06SF SW
BVZF 7.62/07SF SW
BVZF 7.62/08SF SW
BVZF 7.62/09SF SW
BVZF 7.62/10SF SW
BVZF 7.62/12SF SW
Version
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 4, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 5, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 6, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 7, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 8, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 9, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 10, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 12, 180°, Box
-3-
