Datasheet> 器件分类 > 连接器> 连接器支架> 807-22-001-30-017101

807-22-001-30-017101: 产品描述SPRING PIN INSULATED; 产品类别连接器连接器支架; 文件大小401KB，共1页; 制造商Mill-Max; 官网地址https://www.mill-max.com

下载文档详细参数选型对比全文预览

807-22-001-30-017101在线购买

供应商	器件名称	价格	最低购买	库存
	807-22-001-30-017101	-	-	点击查看	点击购买

807-22-001-30-017101概述

SPRING PIN INSULATED

807-22-001-30-017101规格参数

参数名称	属性值
厂商名称	Mill-Max
Reach Compliance Code	compliant
连接器支架类型	CONNECTOR ACCESSORY

文档预览

下载PDF文档

全文
预览

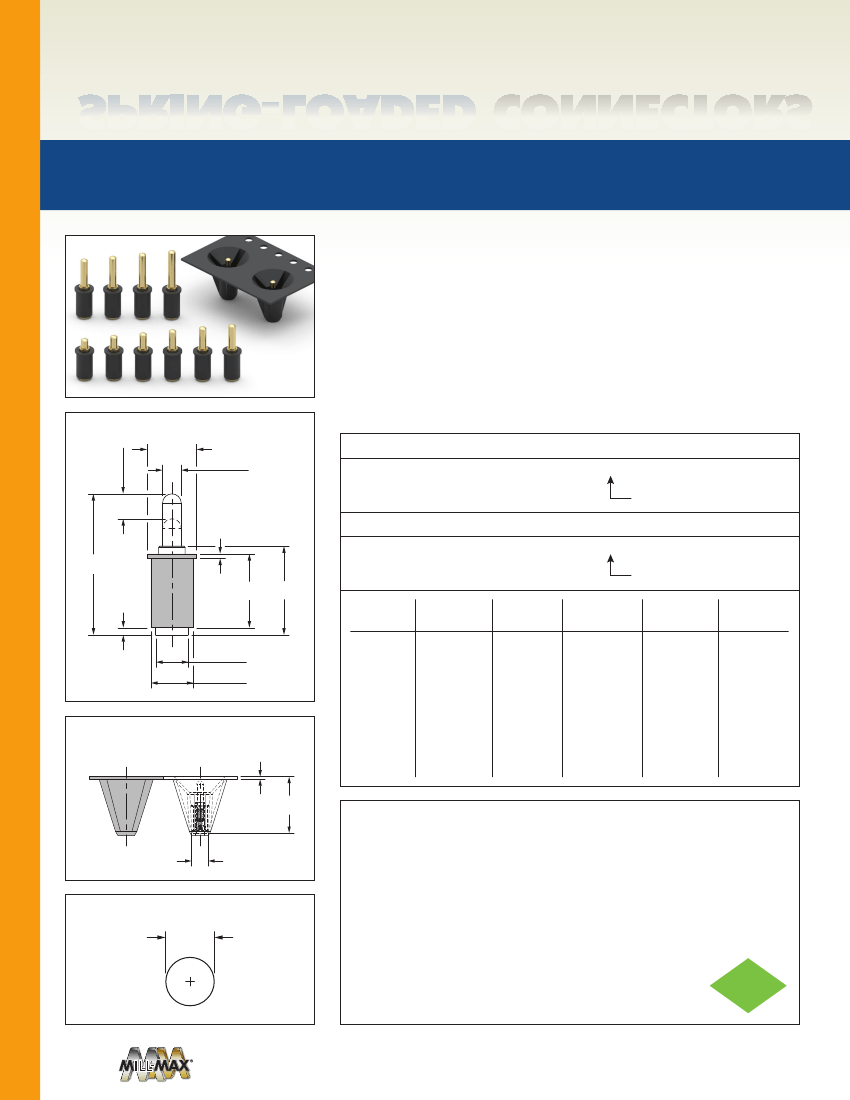

SPRING-LOADED

CONNECTORS

SERIES 807 • DISCRETE INSULATED SPRING-LOADED PINS •

SURFACE MOUNT

• Discrete insulated spring-loaded pins; available in ten heights from .255” to .430”,

with working travel of .0275”

• Precision-machined piston / base and gold-plated components assure up to 1,000,000

cycle life durability

• Low resistance contacts are rated at 2 amps continuous, 3 amps peak

• High temperature thermoplastic insulators are suitable for most SMT soldering processes

• 807 series, contact styles 0 through 9, are available in bulk or on 16mm wide carrier

tape for automated pick and place assembly. Tape and Reel packaging per EIA-481.

See below for ordering information

Series 807 (Contact Style 0-9)

Stroke

.110 DIA.

.042 DIA.

ORDERING INFORMATION

Series 807 (Bulk Packaged)

807-22-001-30-01X101

Specify contact style

0-9

.010

Series 807 (Tape & Reel Packaged)

807-22-001-30-01X191

.165

.016

.198

Specify contact style

0-9

Contact

Style

Initial

Height (A)

.255

.275

.295

.315

.335

.350

.370

.390

.410

.430

Working

Travel

.0275

Full Stroke

Range (B)

.045-.055

.045 -.055

.045-.055

Tape

Depth (C)

.285

.326

.361

.401

.441

Quantity

per Reel

750

600

550

475

430

.072 DIA.

.094 DIA.

Series 807 (Tape Pocket Depth)

.016

PAGE 19.4 | SPRING-LOADED CONNECTORS

.106

Series 807 (Suggested footprint layout)

.082 DIA.

Materials:

Contact piston & base: Machined copper alloy plated 20μ” gold over 100μ” nickel

Spring (Contact style 0-9): Beryllium copper-plated 10μ” gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height (A) (Contact style 0-9): 25 grams

Spring force @ mid stroke (B/2) (Contact style 0-9): 60 grams

Durability: Up to 1,000,000 cycles

Electrical:

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mW max.

RoHS - 2

2011/65/EU

Insulation resistance: 10,000MW min.

Dielectric strength: 700Vrms min.

Technical Specifications

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
