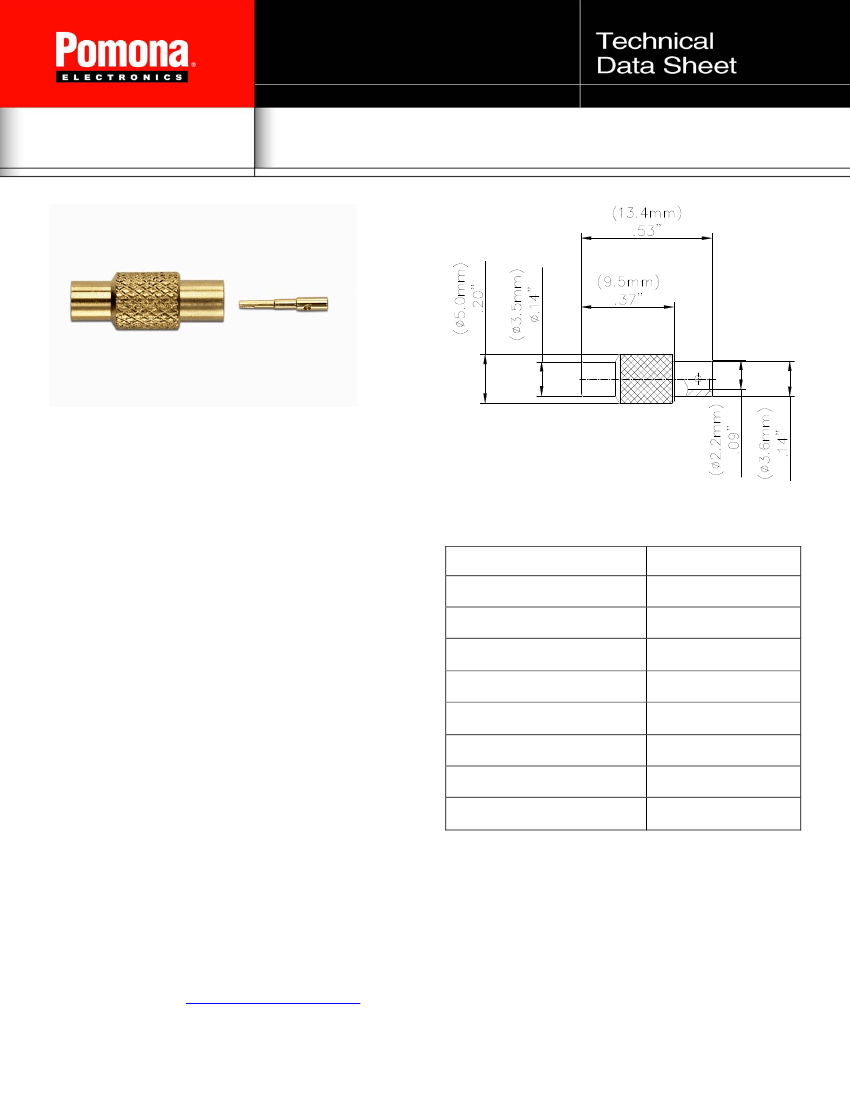

Model 73037
MMCX JACK STRAIGHT SEMI-RIGID, RG405
Model 73037 MMCX JACK STRAIGHT SEMI-RIGID, RG405
Snap-on coupling and micro-
miniature size for fast connect
and disconnect where space is
limited
Features
•
•
•
•
•
•
DC - 6 GHz bandwidth.
50% smaller than MCX connectors.
Connectors allow rotation of 360˚ for layout
flexibility.
Non-slotted contact design for low RF leakage.
Meets CECC 22340.
Perfect for applications where space, weight,
performance and ease of assembly are required.
Body is machined brass with gold plating.
Center contacts – Plug is gold plated Phosphor
bronze and Jack is gold plated beryllium copper.
High quality PTFE insulators.
Crimp Ferrules are gold or nickel plated copper.
Specifications
Impedance
Frequency Range
Working Voltage
Dielectric Withstanding
Voltage
VSWR
Center / Outer contact
resistance
Number of insertions
Insulation resistance
Temperature Range
50
Ω
DC - 6 GHz
170 Vrms max.
500 Vrms
1.3 max.
0.01 / 0.005
Ω
500 cycles minimum
> 500 MΩ
-55˚ C to 155˚ C, -67˚
F to 311˚ F
Materials
•
•
•
•
Ordering
Information
Model: 73037
Description: MMCX JACK STRAIGHT SEMI-RIGID,
RG405
USA:
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (.51 mm),
.xxx = ± .005” (.127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
D2003466 REV 001
Copyright © 2007 12/18/2008
Page 1 of 2
Model 73037
MMCX JACK STRAIGHT SEMI-RIGID, RG405
Cable Types and Crimp Die Information
Connector
Model #
73037
.
Cable Groups
RG405
Crimp Die
Cavity Size for
Outer Ferrule
.151 (3.8)

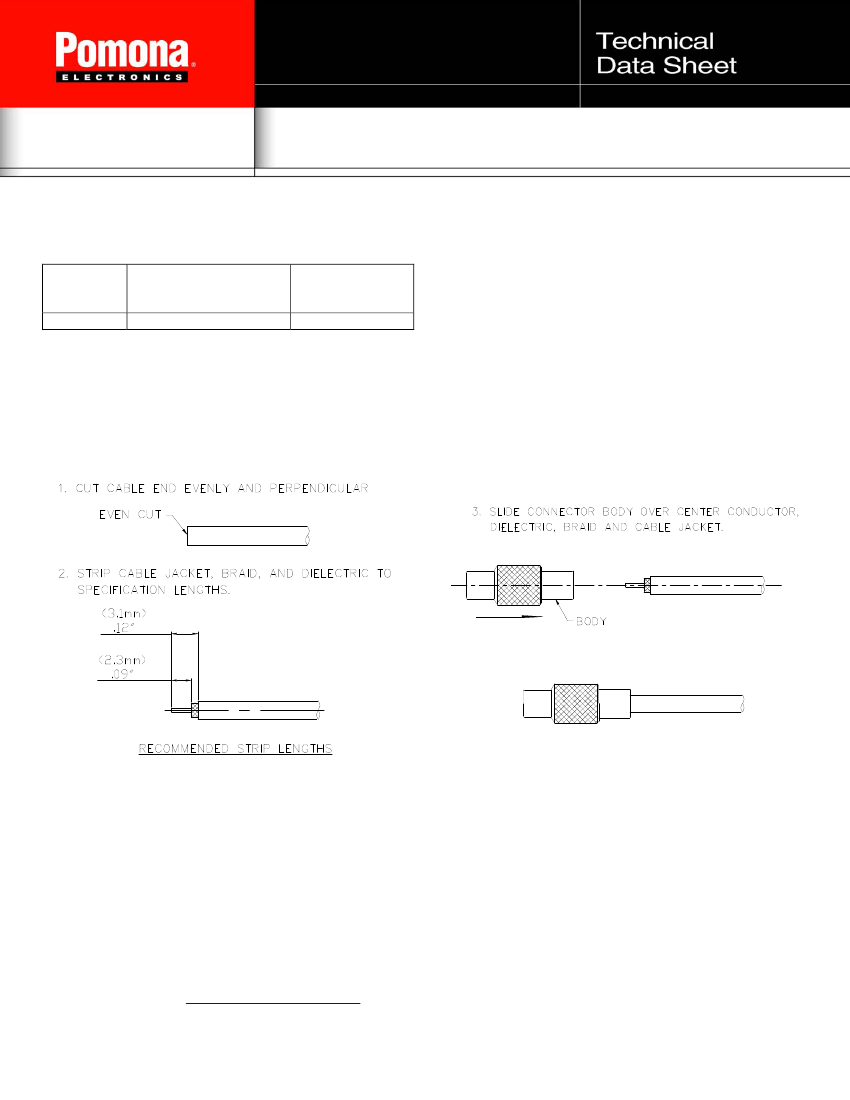

Cable Assembly Instructions
USA:
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (.51 mm),
.xxx = ± .005” (.127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
D2003466 REV 001
Copyright © 2007 12/18/2008
Page 2 of 2
