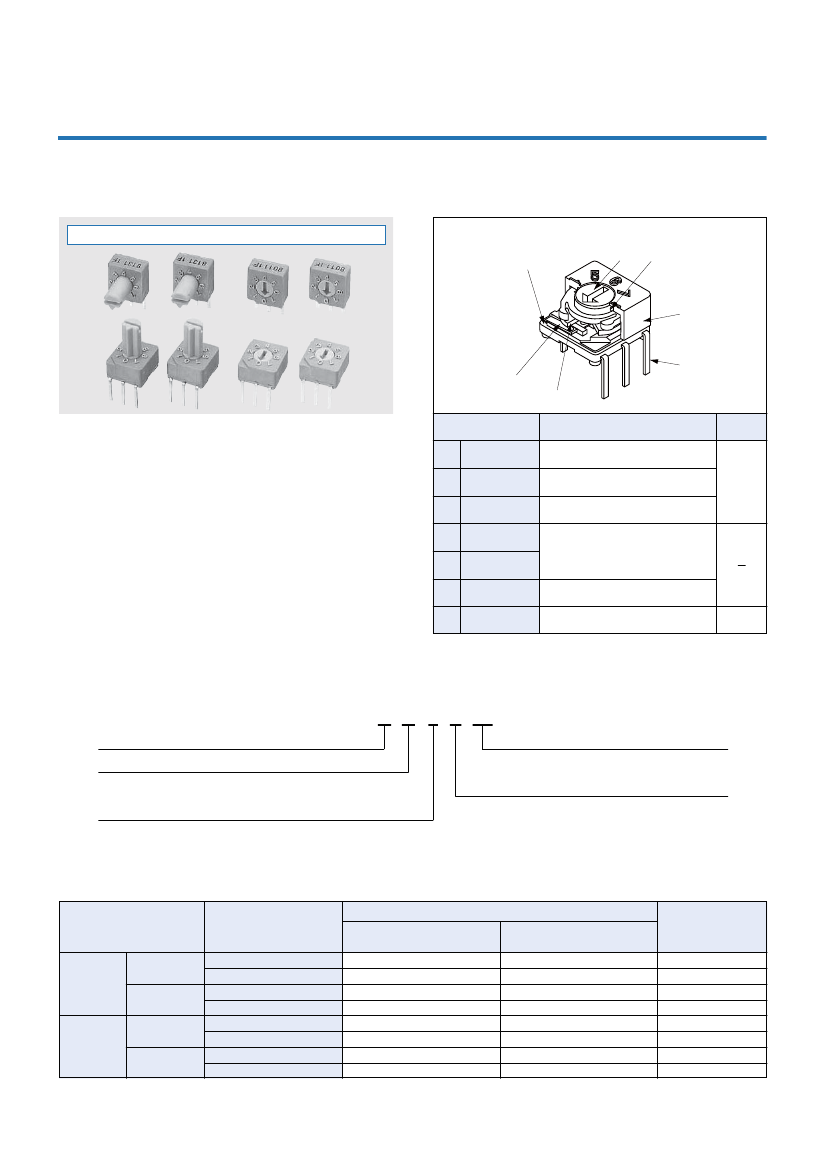

ROTARY CODED SWITCHES
S-8000
INTERNAL STRUCTURE
③
①
②
⑦
RoHS compliant
④
⑤
⑥
Part name
Material
Polyoxymethylene
Silicone rubber
Polybutyleneterephthalate
UL94HB
Flammability
■
FEATURES
O
RoHS compliant
O
3 bits 8 positions type
O
Protection against dust and washable after soldering
O
DIP-pin configuration: 2.54 mm pitch
①
②
③
④
⑤
⑥
⑦
Rotor
“O” ring
Base
Terminal pin
Copper alloy, Gold-plated
Contact
P.C.B.
Housing
Gold-plated epoxy board
Polybutyleneterephthalate
UL94HB
■
PART NUMBER DESIGNATION
S - 8 0 1 0 W
Series name
Shape of rotor
0
：
Without knob
1
：
With knob (extended shaft)
Form of packaging
W
：
Tray packaging
Blank
：
Plastic bag
Setting position
0
：
Top setting
1
：
Side setting
Code format
1
：
Real code
3
：
Complementary code
■
LIST OF PART NUMBERS
Binary coded octal
Shape
Form of packaging
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Real code
S-8010W
S-8010
S-8110W
S-8110
S-8011W
S-8011
S-8111W
S-8111
Complementary code
S-8030W
S-8030
S-8130W
S-8130
S-8031W
S-8031
S-8131W
S-8131
Pieces in package
50 pcs./tray
100 pcs./pack
50 pcs./tray
100 pcs./pack
50 pcs./tray
100 pcs./pack
50 pcs./tray
100 pcs./pack
Without knob
Top setting
With knob
Without knob
Side setting
With knob
※
Verify the above part numbers when placing orders.
Tray version can be supplied only in tray units.
S-8000
ROTARY CODED SWITCHES
■
STANDARD SPECIFICATIONS
Circuit type
Operating temperature range
−
25 ~ 70 °C
Storage temperature range
Washable by “O” ring
※Please
refer to page 150,151
Approx. 0.27 g (S-8010, S-8030)
Approx. 0.34 g (S-8110, S-8130)
Approx. 0.33 g (S-8011, S-8031)
Approx. 0.40 g (S-8111, S-8131)
BCO (Real code, complementary code)
■
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
Dielectric strength
DC50 V 100 mA
DC5 V 100 mA
DC20 mV 1
μA
100 mΩ maximum
1000 MΩ (DC100 V) minimum
AC250 V, 60 s
Sealing
Net weight
■
MECHANICAL CHARACTERISTICS
No. of positions
Adjustment torque
Stepping angle
Terminal strength
Solderability
8
■
ENVIRONMENTAL CHARACTERISTICS
Vibration
(Amplitude) 1.5 mm or
(Acceleration) 98 m/s
2
,
10-500-10 Hz, 3 directions for 2 h each
490 m/s
2
, 11 ms
6 directions for 3 times each
10000 steps minimum
DC5 V, 100 mA
40 °C, Relative humidity 90 ~ 95 %, 240 h
70 °C, 96 h
−25
°C, 96 h
−25
(0.5 h) ~ 70 °C (0.5 h), 5 cycles
36 mN·m {367 gf·cm} maximum
45°
10 N {1.02 kgf} minimum
245
±
3 °C, 2 ~ 3 s
Flow : 260
±
3 °C as the temperature
in a pot of molten solder, immersion
from head of terminal to backside of
board, 5 ~ 6 s, two times maximum
Shock
Load life
Humidity (Steady state)
High temperature exposure
Low temperature exposure
Thermal shock
Manual soldering
：
380
±
10 °C, 3 ~ 4 s
{ } : Reference only
Soldering heat
■
CODE FORMAT
No. of positions
4
Real code
Code
Complemen-
tary code
2
1
4
2
1
0
1
2
3
4
5
6
7
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O O
O
O
O
O
O
O
O
O
…
Contact closed
S-8000
ROTARY CODED SWITCHES
■

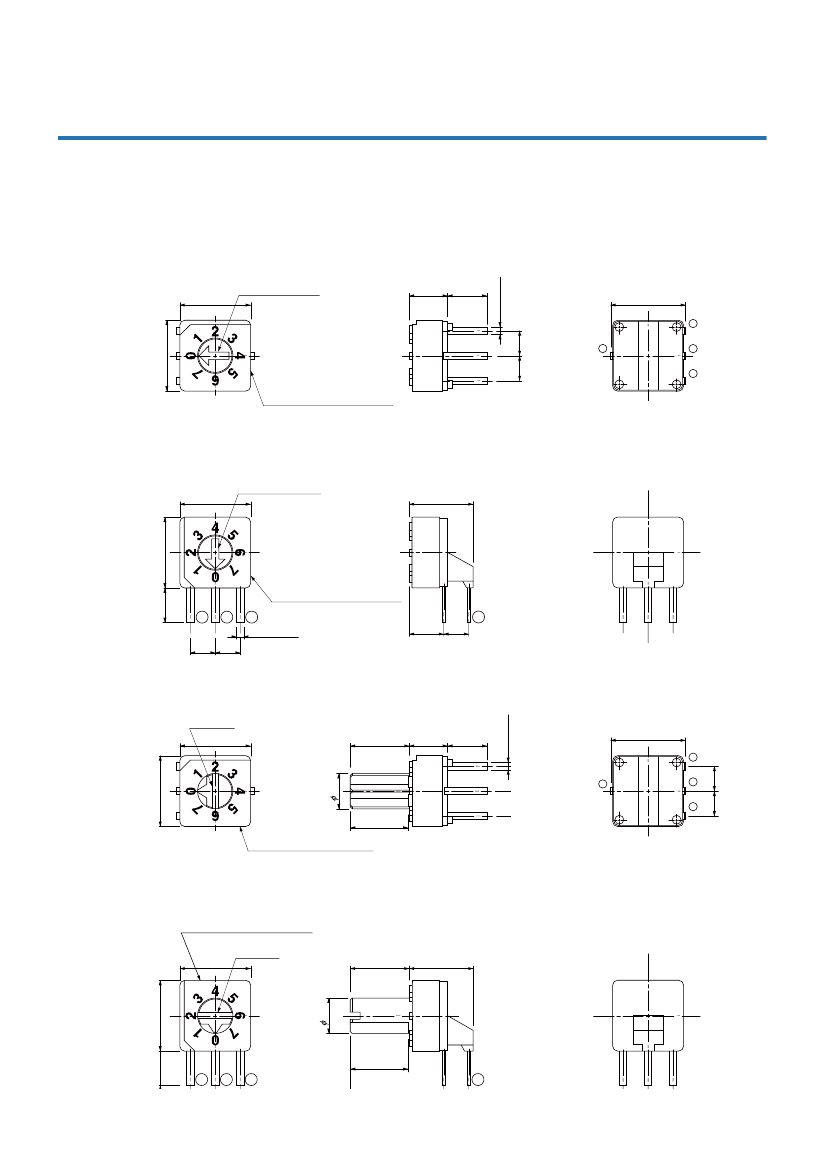

OUTLINE DIMENSIONS
O
S-8010 (Real code)
O
S-8030 (Complementary code)
7.2
0.6 W
×
2.6 L
×
1.2 D
3.9
40.5
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
4 – 0.6±0.1
t = 0.15
7.62
4
4
2.54 2.54
7.2
C
2
1
C
2
1
Part No. & Production date code
O
S-8011 (Real code)
O
S-8031 (Complementary code)
7.2
0.6 W
×
2.6 L
×
1.2 D
6.5
3.5
±
0.5
7.2
Part No. & Production date code
4
2
1
4 – 0.6
±
0.1
t = 0.15
3.5
2.54
C
2.54 2.54
O
S-8110 (Real code)
O
S-8130 (Complementary code)
0.7 W
×
1 D
7.2
6
3.9
40.5
4 – 0.6
±
0.1
t = 0.15
7.62
4
C
2
1
5.9
Part No. & Production date code
O
S-8111 (Real code)
O
S-8131 (Complementary code)
Part No. & Production date code
0.7 W
×
1D
7.2
6
6.5
3.5
±
0.5
7.2
3.6
5.9
4
2
1
C
2.54 2.54
4
7.2
3.6
C
2
1
S-8000
ROTARY CODED SWITCHES
■
TERMINAL CONNECTION / P.C.B. THROUGH HOLE DIMENSIONS
Top setting
Real code
4 2 1
(Unit: mm)
Side setting
Operating face
of real code
4 2 1
Complementary code
4 2 1
Operating face of
complementary code
4 2 1
Terminal pin layout
(Bottom view)
C
C
C
C
2.54±0.1
4 –
φ
0.8 hole
7.62±0.1
2.54±0.1
2.54±0.1
Operating face
4 –
φ
0.8 hole
P.C.B. dimensions
(Bottom view)
S – 8000 case
S – 8000 case
■
PACKAGING SPECIFICATIONS
<Tray packaging specifications>
O
Tray version is packaged in 50 pcs. per tray. Orders will
be accepted for units of 50 pcs., i. e., 50, 100, 150 pcs.
etc.
O
Tray version is boxed with 10 trays.
<Bulk pack specifications>
O
The smallest unit of bulk pack in a plastic bag is 10 pcs.
per pack.
Orders will be accepted for unit of minimum 10 pcs., i.e.,
10, 20, 30 pcs., etc.
O
Boxing of bulk in a plastic bag is performed with 50 pcs.
(standard 100 pcs.) per box.
