V19
︳

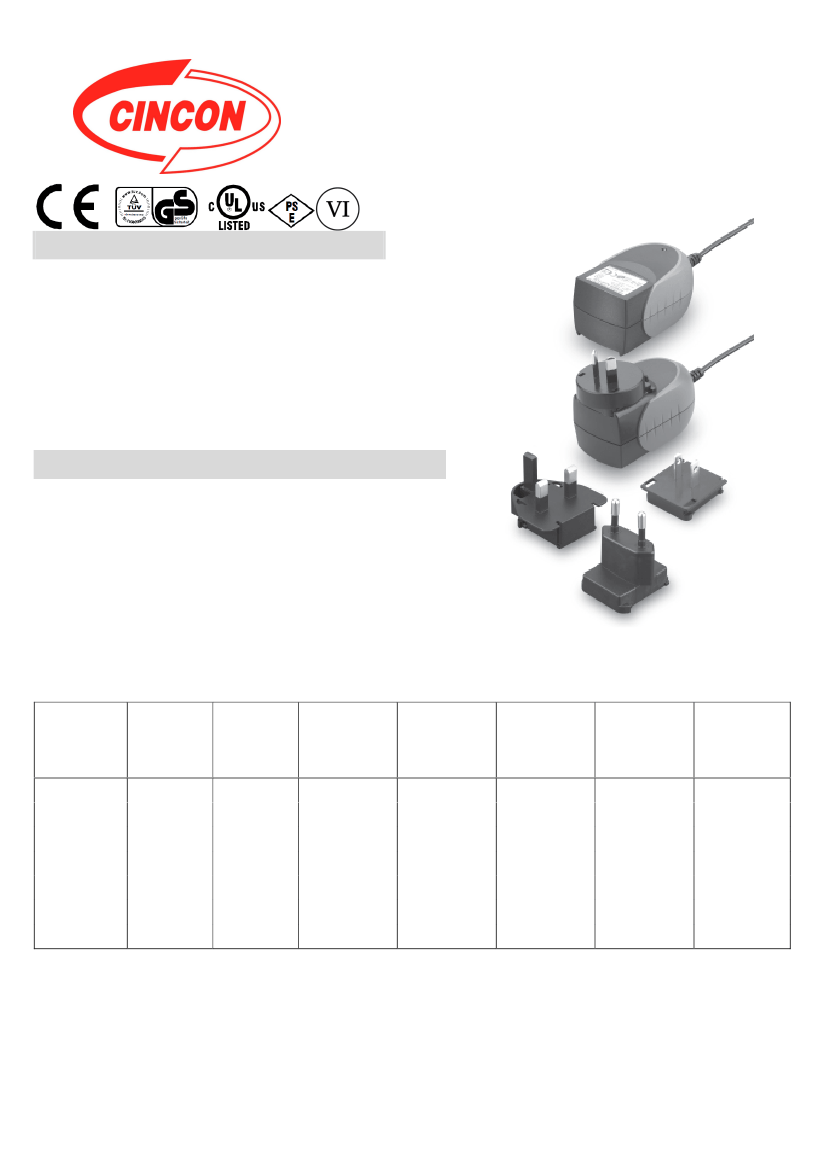

Features
* Universal Input Range 90~264VAC
* Two Color Case
* Meets EN55022 Class “B”
* Continuous Short Circuit Protection
* Interchangeable AC Plugs
* Over Voltage Protection
* Meet CoC V5 Tier 2 & DoE Level VI
(Output Cable Length
≦
1800mm)
TR15RA SERIES
15W SWITCHING
ADAPTER
Ordering information
TR15RAXXX
Model No.
-
XX
DC Plug Type
E XX
-
XX
-BK
DC Cable Length and Type Color of Overmold Case
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
* 18AWG / UL1185
BE: Blue
GY: Gray
RD: Red
PE: Purple
OE: Orange
MODEL
OUTPUT
VOLTAGE
5V
5.9 V
9V
12 V
15 V
18 V
24 V
OUTPUT
CURRENT
2.0 A
1.7 A
1.4 A
1.1 A
1.0 A
830 mA
625 mA
RIPPLE &
NOISE
NOTE 1
1%
1%
1%
1%
1%
1%
1%
VOLTAGE
ACCURACY
NOTE 2
±3%
±2%
±2%
±2%
±2%
±2%
±2%
LINE
REGULATION
NOTE 3
±1%
±1%
±1%
±1%
±1%
±1%
±1%
LOAD
REGULATION
NOTE 4
±4%
±3%
±2%
±2%
±2%
±2%
±2%
79.01%
79.03%
83.55%
83.81%
84.51%
84.49%
84.51%
% EFF. (AVG.)
TR15RA050
TR15RA059
TR15RA090
TR15RA120
TR15RA150
TR15RA180
TR15RA240
Specifications are subject to change without notice.
1
V19
Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…........................................... 90~264Vac
Inrush Current ………………….………….................... 90A max. @240Vac
Leakage Current …………………………………………….…… 0.25mA max.
Frequency ………………………………………….……………..... 47 to 63Hz

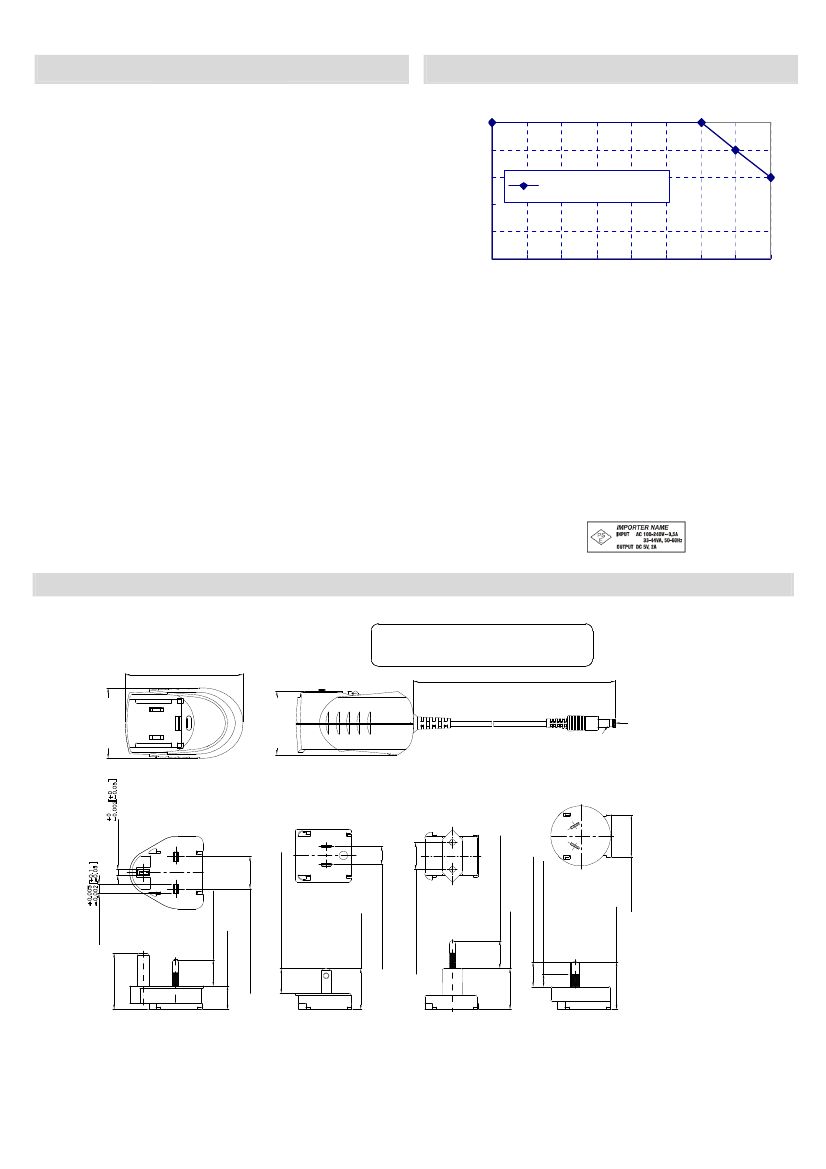

TR15RA Series Derating Curve
100%
Rated Load(%)
80%
60%
40%
20%
0%
-20
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Hold-up Time …………………………………………… 10ms typ. @115Vac
Short Circuit Protection …………….…………… Continuous(Auto Recovery)
Over Voltage Protection ………………………….. TVS Component to Clamp
Temperature Coefficient ……………………............................... ±0.05% /
℃
-10
GENERAL SPECIFICATIONS:
Isolation ……………………..……………..…… Input to output = 4,242VDC
Operating Temperature ................................ -20 ~ 60℃(see derating curve)
Storage Temperature ……………………………...….......……........ -20~85℃
Humidity .................................................... 93% RH max. Non condensing
Cooling ………………………………….………………… Natural Convection
Switching Frequency …………………………….……………. 65KHz Typical
MTBF ….…… MIL-HDBK-217F, GB, at 25℃/115VAC ……. 200Khrs min.
Altitude ……………………..…………………………….……..……….. 2000m
Dimensions …….…….. 3.173x1.885x1.705 inches (80.60x47.90x43.30mm)
Weight ……………………………………………………… 150g(0.33 Pounds)
NOTE:
0
10
20
30
40
o
Ambient Temperature( C)
50
60
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
2. Voltage setpoint at 60% full load.
3. Line regulation measured from 100Vac to 240Vac full load.
4. Load regulation measured from 60% to full load and from 60% to
20% load (60% +/- 40% load).
5. ”Various TR Series adapters are PSE certified. PSE certification alone
is not sufficient for importation into Japan. A valid PSE mark must
contain the name of the importer as shown in the example below. If PSE
mark is required, the name of the registered importer must be supplied
to Cincon on order placement. Product labels will not contain PSE
mark if importer name is not supplied. Consult factory or local
representative for details”.
SAFETY AND EMC:
Emission and Immunity …....................... EN55022 Class B, EN61000-6-3
EN61000-3-2, EN61000-3-3, EN55024, EN61204-3 , EN61000-6-1
Safety …………………………….… IEC60950-1, EN60950-1 , UL60950-1
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
DC Plug type: V+ ─●)─ V-
DC Plug :Straight(ψ5.5／ψ2.1) L12mm
18AWG／1800mm
70.866[1800.00]±1.969[50.00]
1.704[43.30]
3.173[80.60]
1.885[47.90]
+
-
0.157[4.00]
TR30RAM/TR15RA-A
0.748[19.00]±0.019[0.50]
1.102[28.00]
0.669[17.00]±0.031[0.70]
0.665[16.90]±0.011[0.30]
0.343[8.70]±0.019[0.50]
0.492[12.50]±0.002[0.05]
0.874[22.20]±0.005[0.13]
0.727[18.47]±0.002[0.05]
0.712[18.10]Max
0.248[6.30]
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
1.515[38.50]
0.629[16.00]
1.102[28.00]
2
1.275[32.40]
1.137[28.90]
