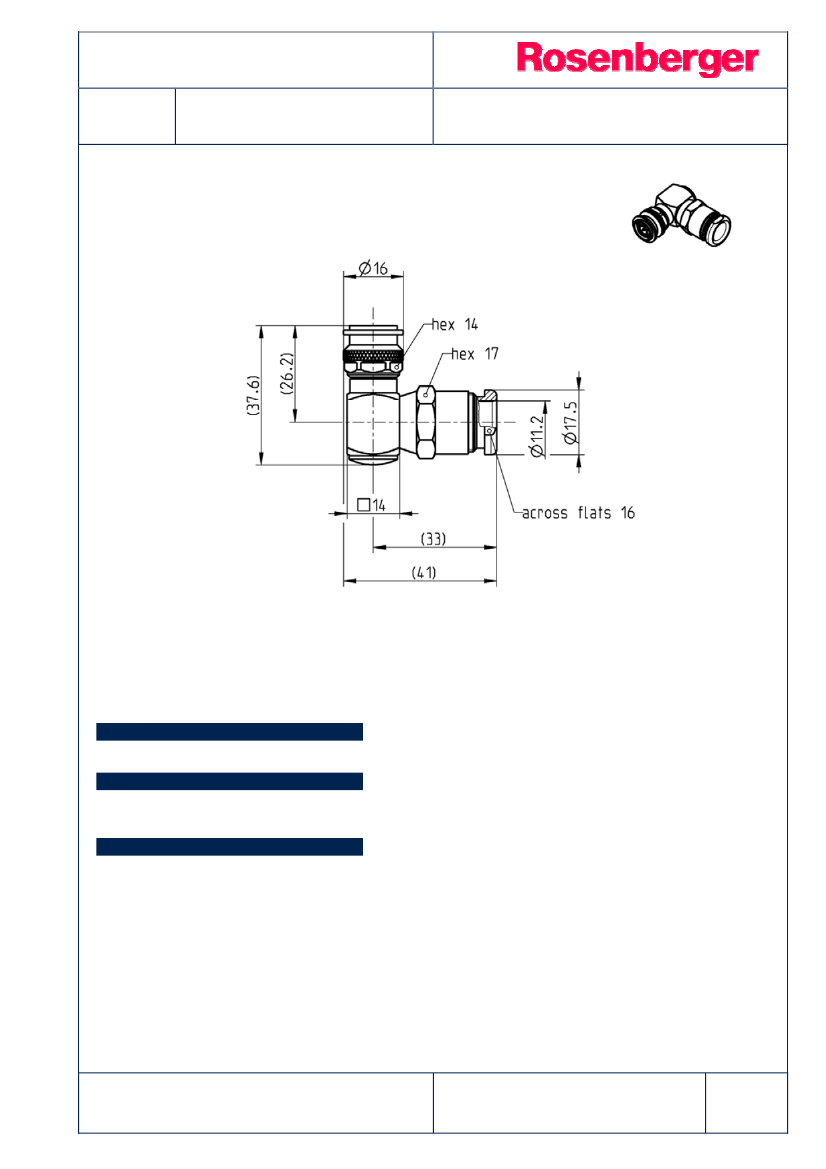

Technical Data Sheet
TNC 50
RIGHT ANGLE PLUG
56S201-015N5
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-17, MIL-PRF-39012, DIN EN 122200
53 F1
Documents
Assembly instruction
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Gasket
Material
Plating
Brass
AuroDur®, gold plated
Brass
Flash white bronze over silver(e.g. Optargen®)
Brass
Flash white bronze over silver(e.g. Optargen®)
PTFE
NeopreneCR 50C6
Silicone
RF_35/08.13/6.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
TNC 50
RIGHT ANGLE PLUG
56S201-015N5
Electrical data
Impedance
Frequency
Return loss
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
50
DC to 10 GHz
30 dB @ DC to 1 GHz
25 dB @ 1 GHz to 2 GHz
15 dB @ 2 GHz to 4 GHz
0.05 x
f [GHz]
dB, DC to 4 GHz
5 G
1.5 m
1 m
1500 V rms
500 V rms
80 W @ 2 GHz
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
(at sea level)
Working voltage
(at sea level)
Power handling
(at 20 °C, sea level, VSWR 1.0)
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
500
15 N
1.7 Nm
0.46 Nm to 0.69 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-65 °C to +165 °C
MIL-STD-202, Method 107, Condition B
MIL-STD-202, Method 101, Condition B
MIL-STD-202, Method 204, Condition B
MIL-STD-202, Method 213, Condition G
MIL-STD-202, Method 106
compliant
Tooling
N/A
Suitable cables
RG 213 /U , RG 214 /U
Weight
Weight
57.5 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Inge Mühlauer
Date
10.08.04
Approved
Sa. Krautenbacher
Date
20.03.14
Rev.
e00
Engineering change number
14-0352
Name
T. Krojer
Date
20.03.14
