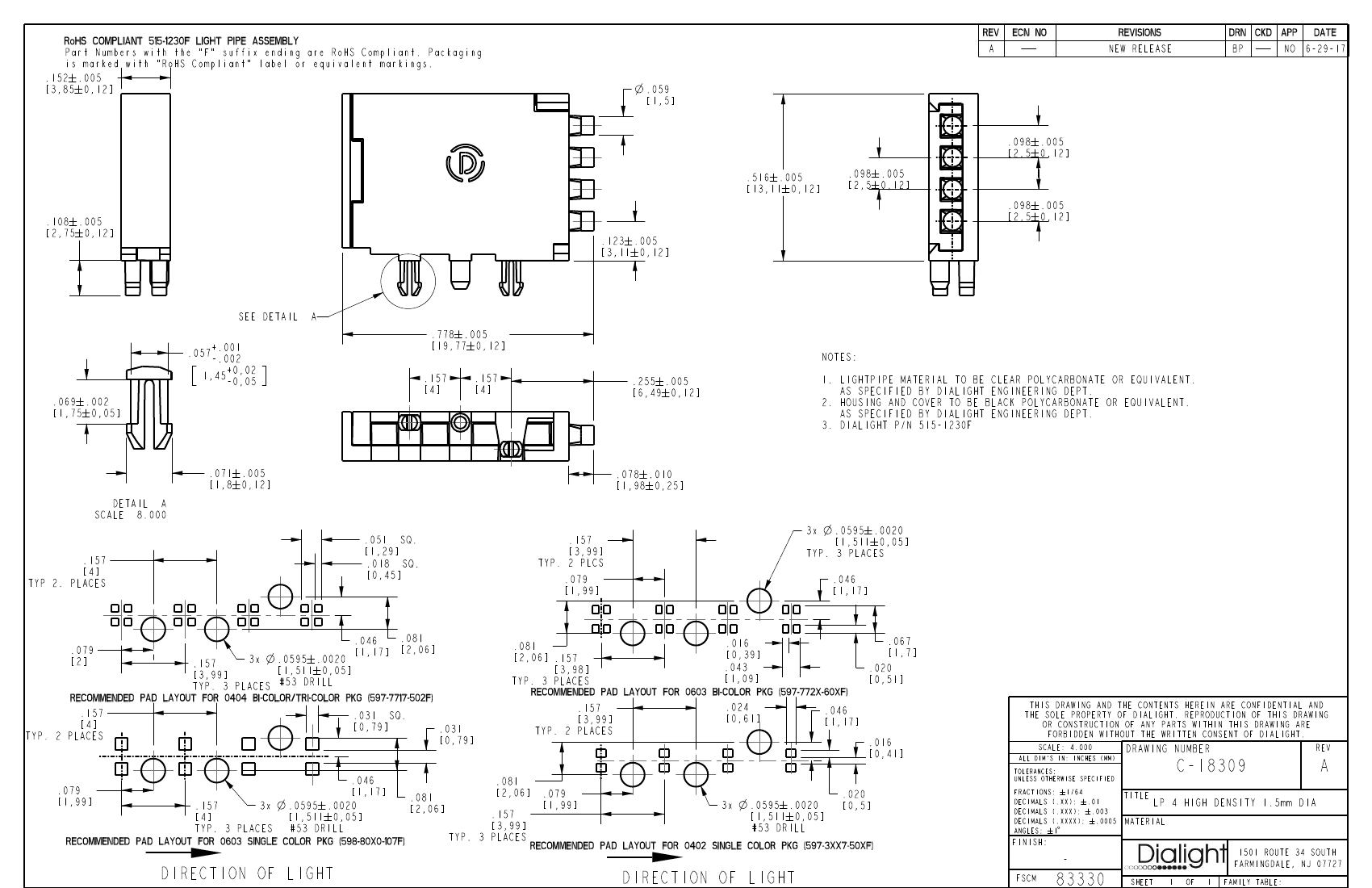

RoHS COMPLIANT 515-1230F LIGHT PIPE ASSEMBLY
Part Numbers with the "F" suffix ending are RoHS Compliant. Packaging
is marked with "RoHS Compliant" label or equivalent markings.
.152 .005
[3,85 0,12 ]
REV
A
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
BP
NO
DATE
6-29-17
.059
[1,5 ]
.098 .005
[2,5 0,12 ]
.516 .005
[13,11 0,12 ]
.098 .005
[2,5 0,12 ]
.098 .005
[2,5 0,12 ]
.108 .005
[2,75 0,12 ]
.123 .005
[3,11 0,12 ]
SEE DETAIL
.057
+.001
-.002
+0,02
1,45
-0,05
A
.778 .005
[19,77 0,12 ]
NOTES:
.255 .005
[6,49 0,12 ]
1. LIGHTPIPE MATERIAL TO BE CLEAR POLYCARBONATE OR EQUIVALENT.
AS SPECIFIED BY DIALIGHT ENGINEERING DEPT.
2. HOUSING AND COVER TO BE BLACK POLYCARBONATE OR EQUIVALENT.
AS SPECIFIED BY DIALIGHT ENGINEERING DEPT.
3. DIALIGHT P/N 515-1230F
.069 .002
[1,75 0,05 ]
[
]
.157
[4]
.157
[4]
.071 .005
[1,8 0,12 ]
DETAIL A
SCALE 8.000
.051 SQ.
[1,29 ]
.018 SQ.
[0,45 ]
.157
[3,99 ]
TYP. 2 PLCS
.079
[1,99 ]
.078 .010
[1,98 0,25 ]
.157
[4]
TYP 2. PLACES
n.0595 .0020
[1,511 0,05 ]
TYP. 3 PLACES
.046
[1,17 ]
3x
.157
[4]
TYP. 2 PLACES
3x n.0595 .0020
.157
[1,511 0,05 ]
[3,99 ]
TYP. 3 PLACES #53 DRILL
RECOMMENDED PAD LAYOUT FOR 0404 BI-COLOR/TRI-COLOR PKG (597-7717-502F)
.031 SQ.
[0,79 ]
.031
[0,79 ]
.079
[2]
.046
[1,17 ]
.081
[2,06 ]
.067
.016
.081
[1,7 ]
[0,39 ]
[2,06 ] .157
.043
.020
[3,98 ]
[1,09 ]
[0,51 ]
TYP. 3 PLACES
RECOMMENDED PAD LAYOUT FOR 0603 BI-COLOR PKG (597-772X-60XF)
.157
[3,99 ]
TYP. 2 PLACES
.024
[0,61 ]
.046
[1,17 ]
.016
[0,41 ]
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
SCALE: 4.000
DRAWING NUMBER
.046
.081
[1,17 ]
[2,06 ] .079
.020
.081
[1,99 ]
3x n.0595 .0020
[0,5 ]
3x n.0595 .0020
.157
[2,06 ]
.157
[1,511 0,05 ]
[1,511 0,05 ]
[4]
[3,99 ]
#53 DRILL
#53 DRILL
TYP. 3 PLACES
TYP. 3 PLACES
RECOMMENDED PAD LAYOUT FOR 0603 SINGLE COLOR PKG (598-80X0-107F)
RECOMMENDED PAD LAYOUT FOR 0402 SINGLE COLOR PKG (597-3XX7-50XF)
.079
[1,99 ]
C-18309
REV
A
FINISH:
FRACTIONS: # 1/64
DECIMALS (.XX): # .01
DECIMALS (.XXX): # .003
DECIMALS (.XXXX): # .0005
ANGLES: # 1 $
TITLE
LP 4 HIGH DENSITY 1.5mm DIA
MATERIAL
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
SHEET
1
OF
1
FAMILY TABLE:
DIRECTION OF LIGHT
DIRECTION OF LIGHT
FSCM
83330
-
