589162006200175: 产品描述PCB Connector; 产品类别连接器; 文件大小83KB，共2页; 制造商AVX

下载文档详细参数选型对比全文预览

589162006200175概述

PCB Connector

589162006200175规格参数

参数名称	属性值
厂商名称	AVX
Reach Compliance Code	compliant
连接器类型	PCB CONNECTOR
DIN 符合性	NO
IEC 符合性	NO
MIL 符合性	NO
制造商序列号	9162
选件	GENERAL PURPOSE
Base Number Matches	1

文档预览

下载PDF文档

全文
预览

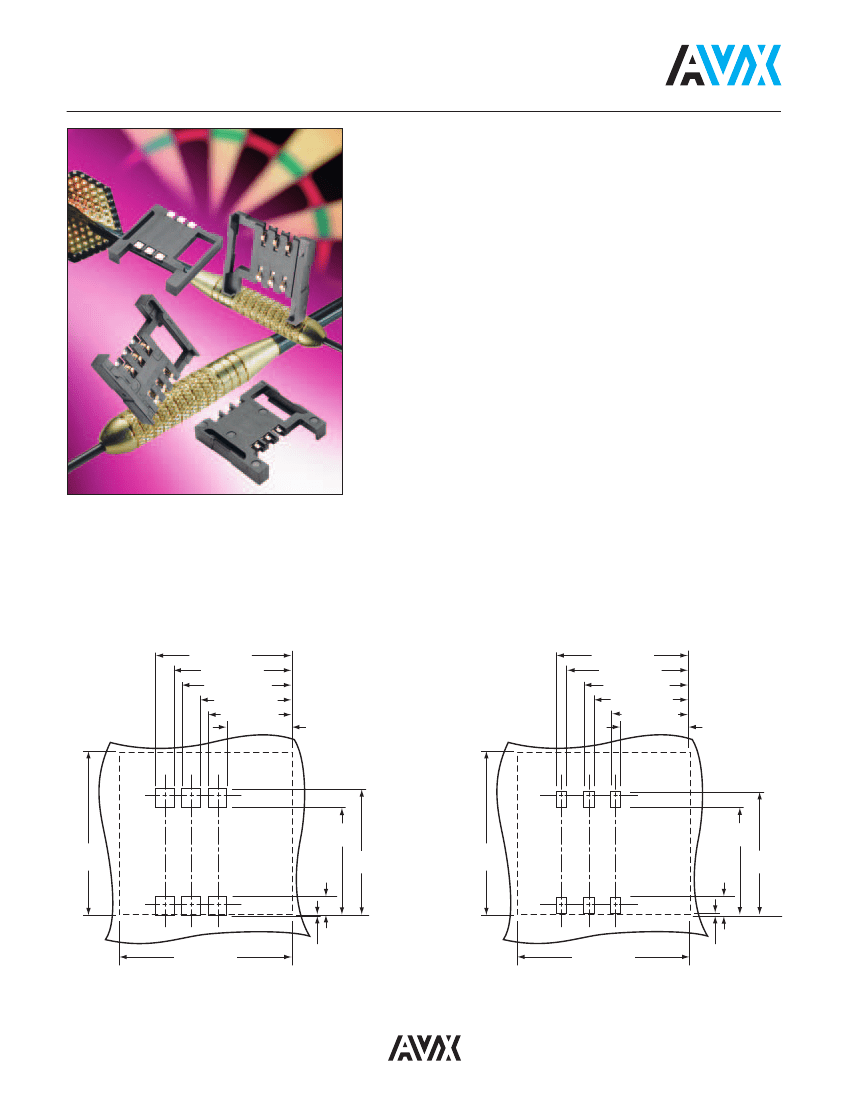

9162 MOBO

™

Slide-In SIM Card Reader

GENERAL DESCRIPTION

The standard SIM connector is specifically designed for handheld devices

requiring secure subscriber identification.

Following on from the introduction of our standard SIM block with an offering

of 3 standard heights, 0.80mm, 1.60mm, 2.40mm, Elco is now adding

another standard to the 9162 series SIM connectors, the slide-in SIM.

Unlike SIM blocks which require SIM card guides to aid insertion, removal

and retention of the SIM card, the slide-in SIM has guides as part of theh

connector mold design.

Contacts are stamped, gold plated, rated 0.5A, and 5000 mechanical cycles.

Our contact design is specifically rounded to avoid any possible damage

during and after card insertion to the card itself, assuming normal use. The

design also incorporates protection features to avoid contact damage during

this operation such as contact snagging.

Please contact the appropriate sales office for further details of this service.

KEY FEATURES AND BENEFITS

• Produced for use with both full ISO cards and micro SIM cards.

• The insulator is molded from high temperature plastic enabling the

connector to be used in convection or infrared soldering processes.

• Supplied on tape and reel packaging for pick and place assembly.

• The all plastic design, assuming normal use prevents damage to the

SIM card on insertion.

• Optional SMT contact site:

Standard SMT contact size – 1.60mm x 1.60mm

Narrow SMT contact size – 1.05mm x 0.60mm

Standard SMT Contact Layout

13.0 (0.512)

11.2 (0.441)

10.46 (0.412)

8.66 (0.341)

7.92 (0.312)

6.12 (0.241)

Narrow SMT Contact Layout

12.6 (0.496)

11.6 (0.457)

10.06 (0.396)

9.06 (0.357)

7.52 (0.296)

6.52 (0.257)

15.7

(0.618)

10.36

(0.408)

12.16

1.74 (0.479)

(0.069)

15.7

(0.618)

10.35

(0.407)

11.85

1.75 (0.467)

(0.069)

16.4 (0.646)

0.06

(0.002)

16.4 (0.646)

0.25

(0.010)
