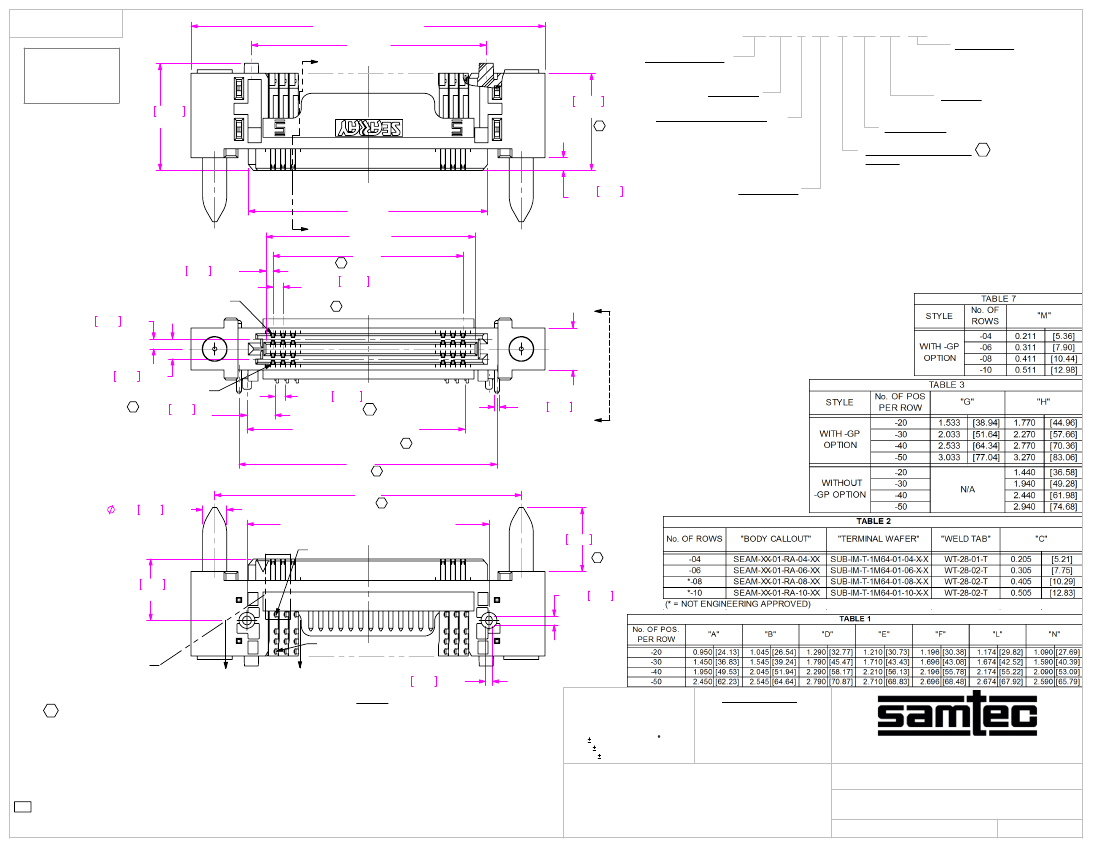

REVISION H
DO NOT
SCALE FROM
THIS PRINT
.535 13.59
REF
"H" REF (SEE TABLE 3)
"L" REF
SEAM-XX-XX-X-XX-X-RA-XX-TR
No OF POSITIONS
-20,-30,-40,-50
(PER ROW)
"A"
PACKAGING
-TR: TAPE & REEL
(STANDARD PACKAGING)
(SEE NOTE 4 AND 7)
.485 12.32 (TYP)
TO WAFER
C
LEAD STYLE
-01
PLATING SPECIFICATION
-S: SELECTIVE GOLD,
MATTE TIN ON TAILS
(USE SUB-IM-T-1M64-01-XX-S-X)
-L: LIGHT SELECTIVE GOLD,
MATTE TIN ON TAILS
(USE SUB-IM-T-1M64-XX-L-X)
No OF ROWS
-04,-06,*-08,*-10
( * = NOT ENGINEERING APPROVED)
C
L
"F" REF
.063 1.60
REF
OPTIONS
-GP: GUIDE POST
-K: KAPTON PAD
RIGHT ANGLE
(SEE NOTE 8)
-RA
SOLDER COMPOSITION
C
& STYLE
-1: 63% TIN / 37% LEAD CHARGE TAIL
(USE SUB-IM-T-1M64-XX-XX-X-1)
-2: 95.5% TIN / 3.8 SILVER / 0.7% COPPER
LEAD FREE CHARGE TAIL
(USE SUB-IM-T-1M64-XX-XX-X-2)
"A"
C
"B" REF
"A"
.035 0.89 REF
PIN 04
.0500 1.270 (TYP)
(TOL NON-ACCUM)
C
.050 1.27 REF
"M"
REF
.100 2.54 REF
PIN 01
C
'K'
.140 3.55
(SEE NOTE 10)
C
.0500 1.270
L
C
"N" (SEE SECTION "E"-"E")
(SEE NOTE 10)
C
"D"
C
C
.025 0.64
REF(TYP)
(SEE SHT. 2)
'K'
"G"
.120 3.05 REF
"E" (REF)(ALIGNMENT PIN CENTERS)
PIN 01
C
L
.320 8.13 (TYP)
C
.308 7.81 REF
(A-PIN C )
L
.044 1.12 REF
PIN 04
'J'
NOTES:
"E"
"E"
H
1.
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSH-OUT FORCE: .50 LBS[2.2N].
3. INSPECT DIMENSION AT 4 CORNERS OF PART.
4. FOR QUANTITIES UP TO 49 PIECES, NO LEADER, TRAILER, OR REEL WILL BE SUPPLIED
FOR QUANTITIES OF 50-124 PIECES, NO LEADER OR TRAILER WILL BE SUPPLIED.
5. NOTE DELETED
6. NOTE DELETED
7. ATTACH LABEL "SEAX-0001" TO EACH TAPE & REEL PACKAGE.
8. -K OPTION REQUIRES 125 PIECE MINIMUM ORDER.
9. ON -08 & -10 ROW ASSEMBLIES, USE CAT FIXTURE SPECIFIED IN TABLE 6 ON SHT 4.
10. CHECK DIMENSION ON FIRST AND LAST ROW OF TAILS.
11. A 20~30°C TEMPERATURE DIFFERENCE MAY EXIST BETWEEN THIS HIGH-DENSITY
COMPONENT AND THE BOARD SURFACE DURING REFLOW. SAMTEC
RECOMMENDS A THERMAL STUDY BE PERFORMED TO UNDERSTAND THE TEMPERATURE
GRADIENTS YOU MAY EXPERIENCE.
C
(SEAM-20-01-X-04-X-RA-GP)
(SOME DETAIL OMITTED FOR CLARITY)

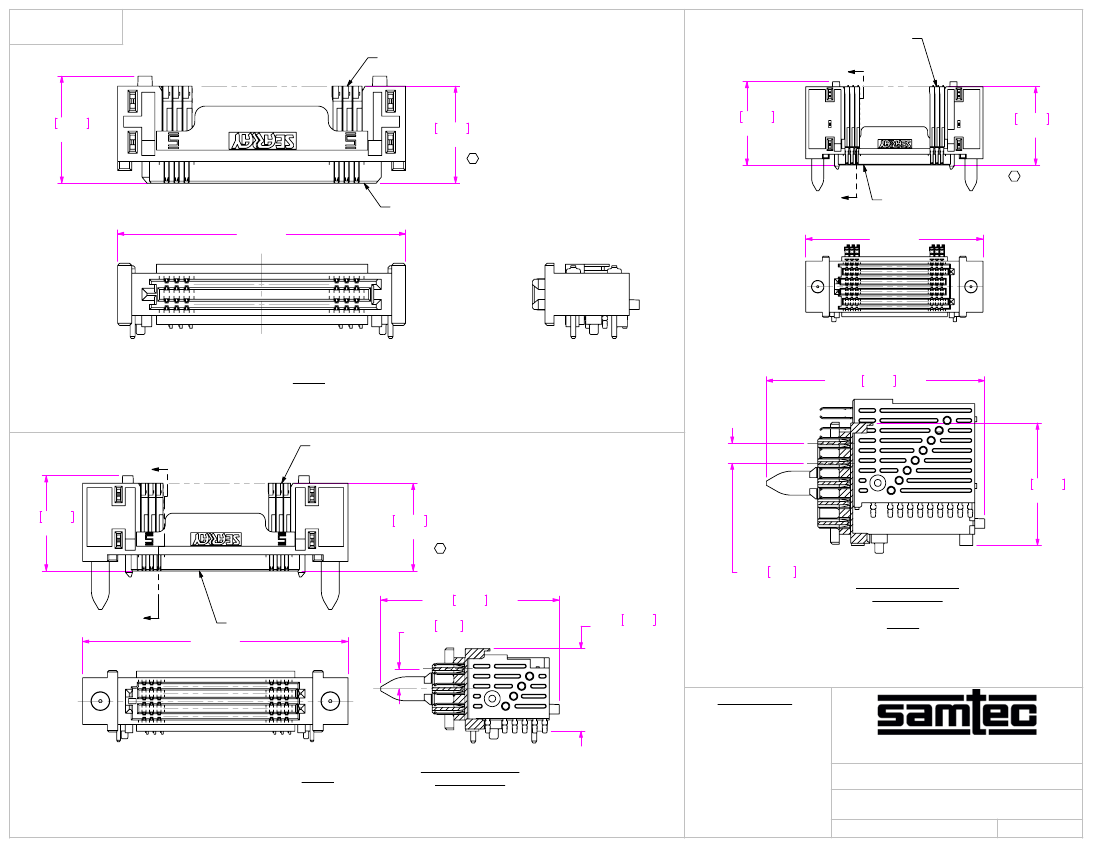

FIG 1
.034 0.86 REF
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP COLOR: BLACK
CONTACT: PHOS BRONZE .006 THICK
SEAM-RA ASSEMBLY
DWG. NO.
DESCRIPTION:
SEAM-XX-XX-X-XX-X-RA-XX-TR
06/27/2008
SHEET
1
OF
4
BY:
R MUSSER
c:\enterprisevault\DWG\MISC\MKTG\SEAM-XX-XX-X-XX-X-RA-XX-TR-MKT.SLDDRW
REVISION H
.008 0.20
REF
WT-28-XX-T
SEAM-XX-XX-RA-04-GP
.056
- .004
1.42
- 0.10
C
+.002
+0.05
.044 1.12
REF
.140 3.55 REF
"N" REF
.0185±.0030
[0.47 0.08]
(TYP)
.050 1.27
(TYP)

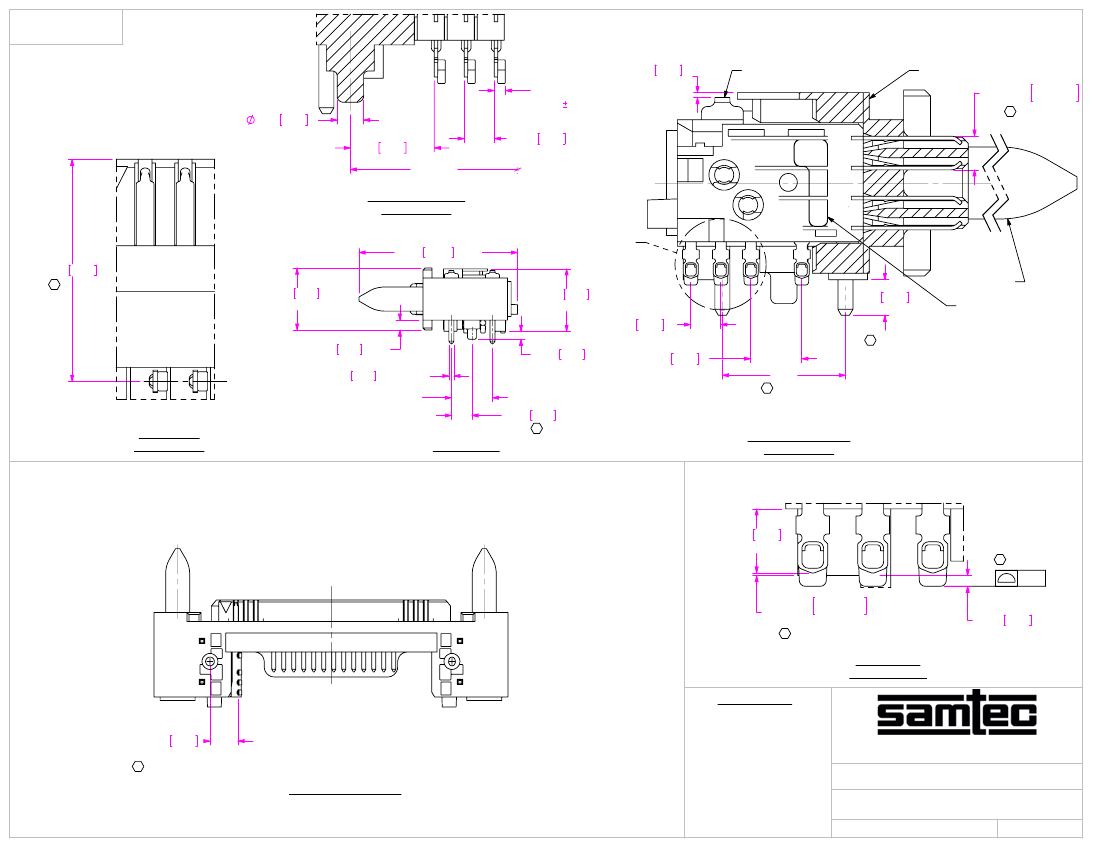

SECTION "E"-"E"
SCALE 6 : 1
.792 20.12 REF
'F'
WT-47-01-N
.059 1.51
.050 1.27
(TYP)
.040 1.02
REF
.277 7.05
C
.310 7.87
REF
.312 7.91
REF
SUB-IM-T-1M64-XX-X-X
.050 1.26 REF
C
L
SOLDER
TAIL
.025 0.64 REF (TYP)
"C" REF
C
.085 2.16
C
"C"
DETAIL 'J'
SCALE 8 : 1
.103 2.60 (TYP)
C
VIEW 'K'-'K'
SECTION "A"-"A"
SCALE 6 : 1
.054 1.36
REF
C
L
.002
- .003
0.051
- 0.08
(SEE NOTE 3)
C
+.002
+0.05
C
.006
.009 0.23 REF
DETAIL 'F'
SCALE 12 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.140 3.55
(SEE NOTE 10)
C
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
(SEAM-20-01-X-04-X-RA-GP)
(FILL FIRST WAFER TO DIMENSION SHOWN)
IN-PROCESS VIEW
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
SEAM-RA ASSEMBLY
SEAM-XX-XX-X-XX-X-RA-XX-TR
06/27/2008
SHEET
2
OF
4
BY:
R MUSSER
c:\enterprisevault\DWG\MISC\MKTG\SEAM-XX-XX-X-XX-X-RA-XX-TR-MKT.SLDDRW
REVISION H
SUB-IM-T-1M64-XX-X-X
SUB-IM-T-1M64-XX-X-X
"D"
.535 13.59
REF
.485 12.32 (TYP)
TO WAFER
C
.835 21.21
REF
.785 19.94 (TYP)
TO WAFER
C
SEAM-XX-XX-RA-04
"H" REF
"D"
SEAM-XX-XX-RA-10-GP
"H" REF
C
L
(SEAM-20-01-X-04-X-RA SHOWN)
(SAME AS FIG 1 EXCEPT AS NOTED)
(SOME DETAIL REMOVED FOR CLARITY)
SUB-IM-T-1M64-XX-X-X
FIG 2
1.092 27.74 REF
"B"
.612 15.53
REF
.635 16.13
REF
.585 14.86 (TYP)
TO WAFER
C
.100 2.54 REF (TYP)
.892 22.66 REF
"B"
SEAM-XX-XX-RA-06-GP
"H" REF
.100 2.54 REF
(TYP)
.412 10.45
REF
SECTION "D"-"D"
SCALE 2 : 1
FIG 4
(SEAM-20-01-X-10-X-RA-GP)
(SAME AS FIG 1 EXCEPT AS NOTED)
(SOME DETAIL REMOVED FOR CLARITY)
(NOT ENGINEERING APPROVED)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
(SEAM-20-01-X-06-X-RA-GP)
(SAME AS FIG 1 EXCEPT AS NOTED)
(SOME DETAIL REMOVED FOR CLARITY)
FIG 3
SECTION "B"-"B"
SCALE 2 : 1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
SEAM-RA ASSEMBLY
SEAM-XX-XX-X-XX-X-RA-XX-TR
06/27/2008
SHEET
3
OF
4
BY:
R MUSSER
c:\enterprisevault\DWG\MISC\MKTG\SEAM-XX-XX-X-XX-X-RA-XX-TR-MKT.SLDDRW
REVISION H
"C"
SUB-IM-T-1M64-XX-X-X
.992 25.20 REF
.735 18.67
REF
.685 17.40 (TYP)
TO WAFER
C
.512 12.99
REF
.100 2.54
REF (TYP)
"C"
SEAM-XX-XX-RA-08-GP
"H" REF
SECTION "C"-"C"
FIG 5
(SEAM-20-01-X-08-X-RA-GP)
(SAME AS FIG 1 EXCEPT AS NOTED)
(SOME DETAIL REMOVED FOR CLARITY)
(NOT ENGINEERING APPROVED)
SEAM-XX-XX-RA-XX-XX
"K"
"Q"±.02 [0.5]
C
"J"±.02 [0.5]
C
"P"

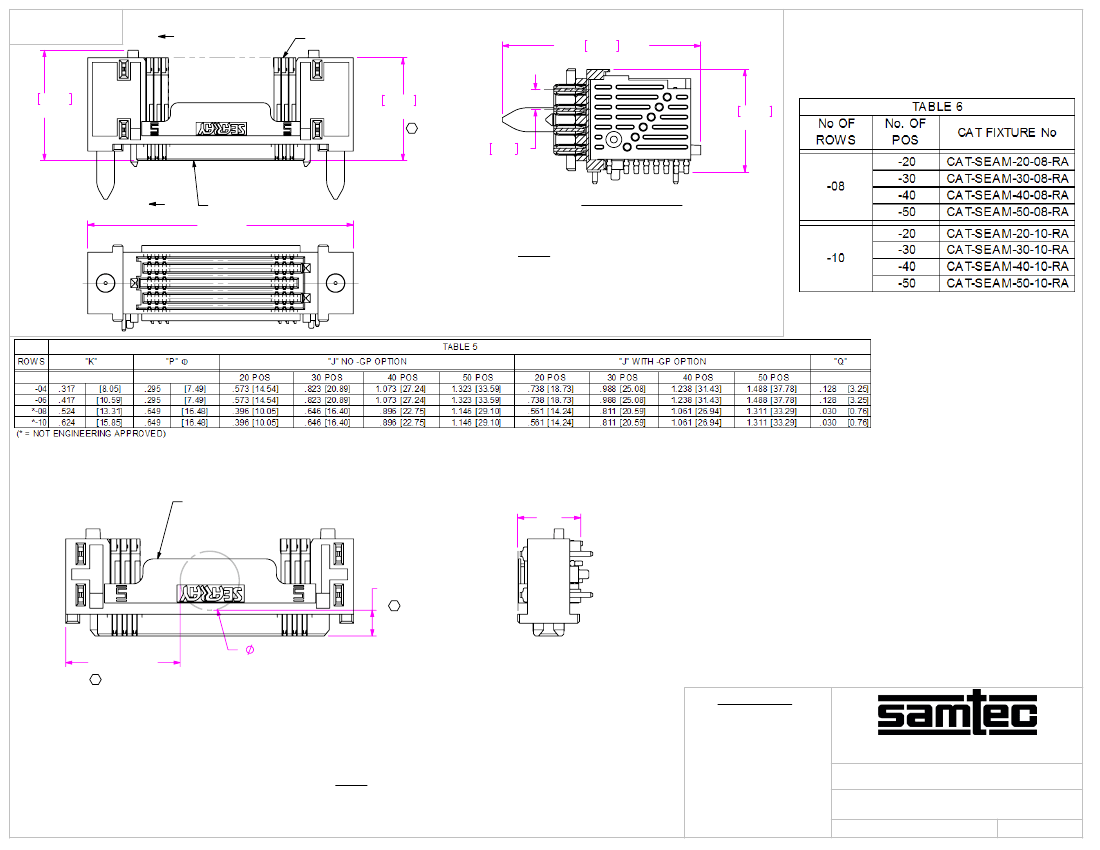

DOT APPLICATOR-KAPTON TAPE: USE
-04 ROW: K-DOT-.295-.406-.005
-06 ROW: K-DOT-.295-.406-.005
-08 ROW: K-DOT-.649-.737-.010
-10 ROW: K-DOT-.649-.737-.010
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
-K OPTION
(USE K-DOT-.XXX-.XXX-.XXX)
(SEAM-20-01-X-04-X-RA-K SHOWN)
FIG 6
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
SEAM-RA ASSEMBLY
BY:
R MUSSER
SEAM-XX-XX-X-XX-X-RA-XX-TR
06/27/2008
SHEET
4
OF
4
c:\enterprisevault\DWG\MISC\MKTG\SEAM-XX-XX-X-XX-X-RA-XX-TR-MKT.SLDDRW
