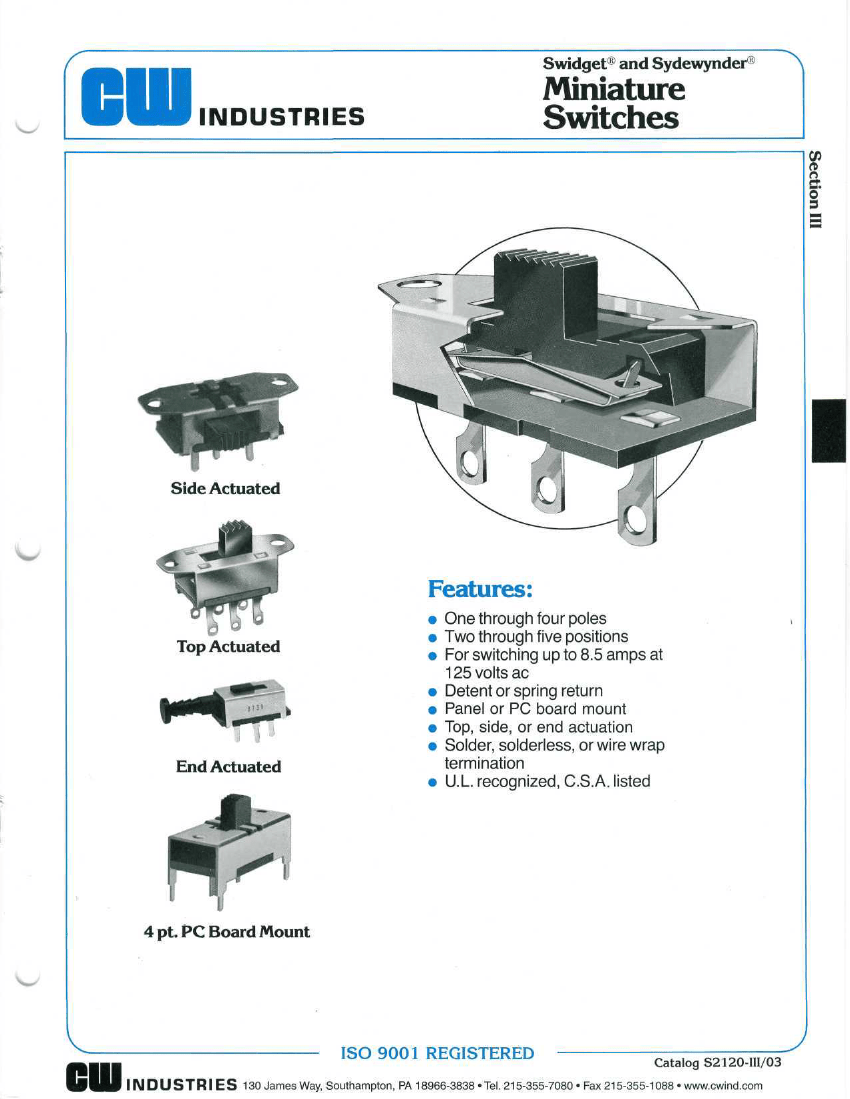

Miniature
Switches
Side Actuated
Features:
Top Actuated
One through four poles
Two through five positions
For switching up to 8.5 amps at
125 volts ac
Detent or spring return
Panel or PC board mount
Top, side, or end actuation
Solder, solderless, or wire wrap
termination
U.L. recognized, C.S.A. listed
I 1"
End Actuated
4 pt. PC Board Mount
ISO 9001 REGISTERED
Catalog S2120-III/03
INDUSTRIES
130 James Way, Southampton, PA 18966-3838-Tel. 215-355-7080 • Fax 215-355-1088 • www.cwind.com
Slide switches became popular in America with indus-
trial expansion after World War I. The "standard" two
position switch was designed for chassis mount on two
1.125-inch centered mounting holes. Terminals were
designed for convenience in hand soldering. Actuation
was with a trigger extending out the switch top, and
generally switches were constructed for switching up
to 3.0 amps at 125 volts ac. With the development of
densely packed printed circuit boards, new materials,
and new innovative requirements, design engineers
found needs for switching higher and lower currents
and voltages in smaller switch packages having a wide
variety of terminations as well as actuation from switch
sides, ends, and tops.
In response to industry's need for miniaturization,
CW first developed its miniature "Swidget"® line of
slide switches; and for printed circuit board applica-
tions, its "Sydwynders"®. CW's line of miniature
Swidgets® now has capability of switching currents up
to 8.5 amps, four poles concurrently and five posi-
tions consecutively. Switching can be by toggle, front,
side, and top actuating knobs. Terminals for solder,
printed circuit board, wire wrap, and solderless termi-
nation are also available.
This vast variety of switch types and options has
increased and multiplied the types of equipment into
which CW switches have been designed and are
used...with time-proven reliability at moderate prices.
From early applications in toys, kits, and games, our
switches are now used everywhere.. .from low volt-
age, low current to heavy duty switching.. .from calcu-
lators, computers, and sensitive instruments to hair
blowers, automobiles, and refrigerators...and TV,
home appliances, and aerospace devices, too.
CW's switch parts and assemblies are manufac-
tured in CW's fully integrated manufacturing facilities.
All processes are performed and controlled by CW's
highly trained and technically competent personnel.

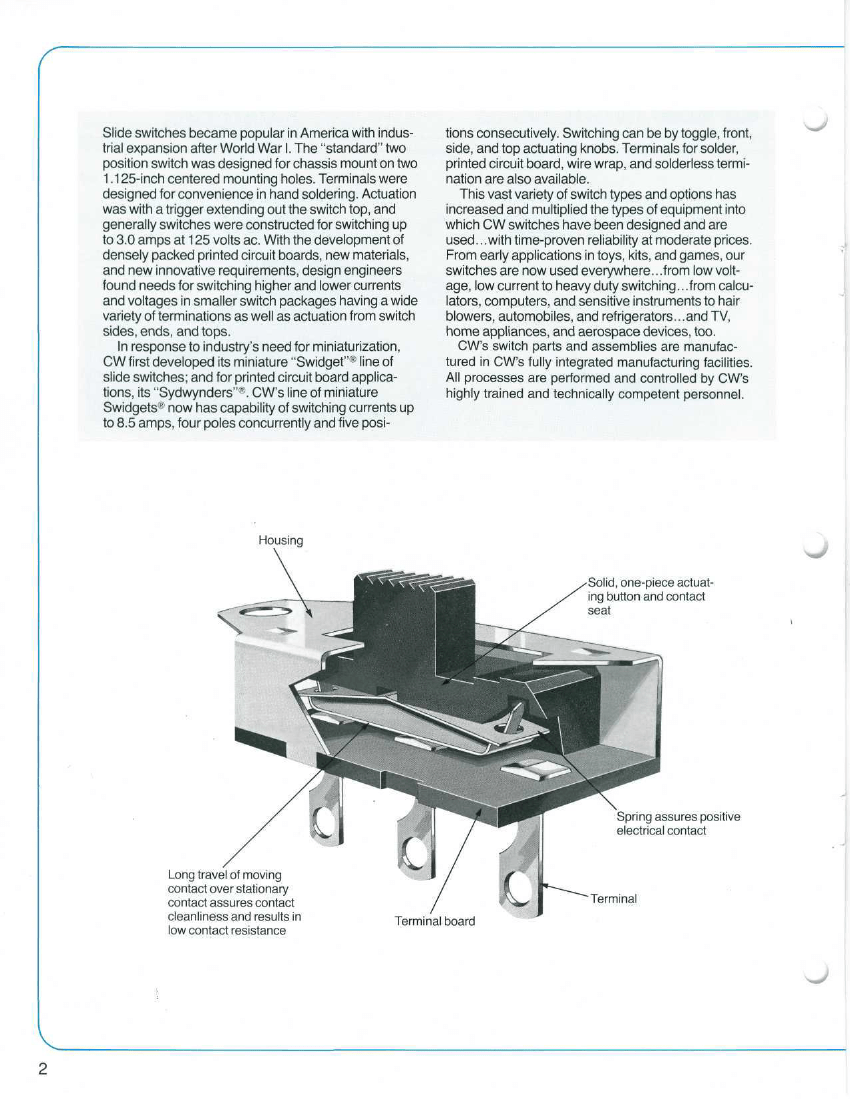

Housing
Solid, one-piece actuat-
ing button and contact
seat
Spring assures positive
electrical contact
Long travel of moving
contact over stationary
contact assures contact
cleanliness and results in
low contact resistance
Terminal
Terminal board
V
2

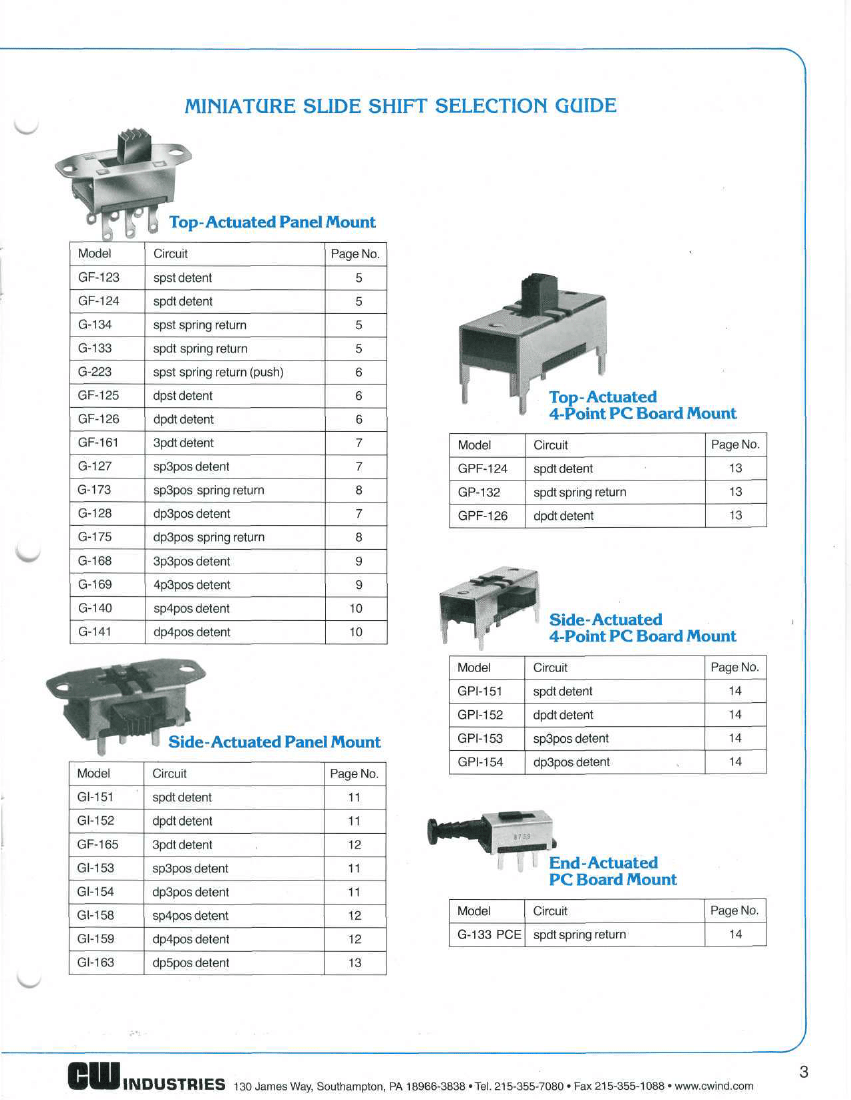

MINIATURE SLIDE SHIFT SELECTION GUIDE
Top-Actuated Panel Mount
Model
GF-123
GF-124
G-134
G-133
G-223
GF-125
GF-126
GF-161
G-127
G-173
G-128
G-175
G-168
G-169
G-140
G-141
Circuit
spst detent
spdt detent
spst spring return
spdt spring return
spst spring return (push)
dpst detent
dpdt detent
Spdt detent
spSpos detent
spSpos spring return
dpSpos detent
dpSpos spring return
SpSpos detent
4p3pos detent
sp4pos detent
dp4pos detent
Page No.
5
5
5
5
6
6
6
7
7
8
7
8
9
9
10
10
Model
GPI-151
GPI-152
Model
GPF-124
GP-132
GPF-126
Top-Actuated
4-Point PC Board Mount
Circuit
spdt detent
spdt spring return
dpdt detent
Page No.
13
13
13
Side-Actuated
4-Point PC Board Mount
Circuit
spdt detent
dpdt detent
spSpos detent
dpSpos detent
Page No.
14
14
14
14
Side-Actuated Panel Mount
Model
GI-151
GI-152
GF-165
GI-153
GI-154
GI-158
GI-159
GI-163
Circuit
spdt detent
dpdt detent
Spdt detent
spSpos detent
dpSpos detent
sp4pos detent
dp4pos detent
dpSpos detent
Page No.
GPI-153
GPI-154
11
11
12
11
11
12
12
13
Model
G-133
PCE
End-Actuated
PC Board Mount
Circuit
spdt spring return
Page No.
14
INDUSTRIES
130 James Way, Southampton, PA 18966-3838 -Tel. 215-355-7080 • Fax 215-355-1088 • www.cwind.com

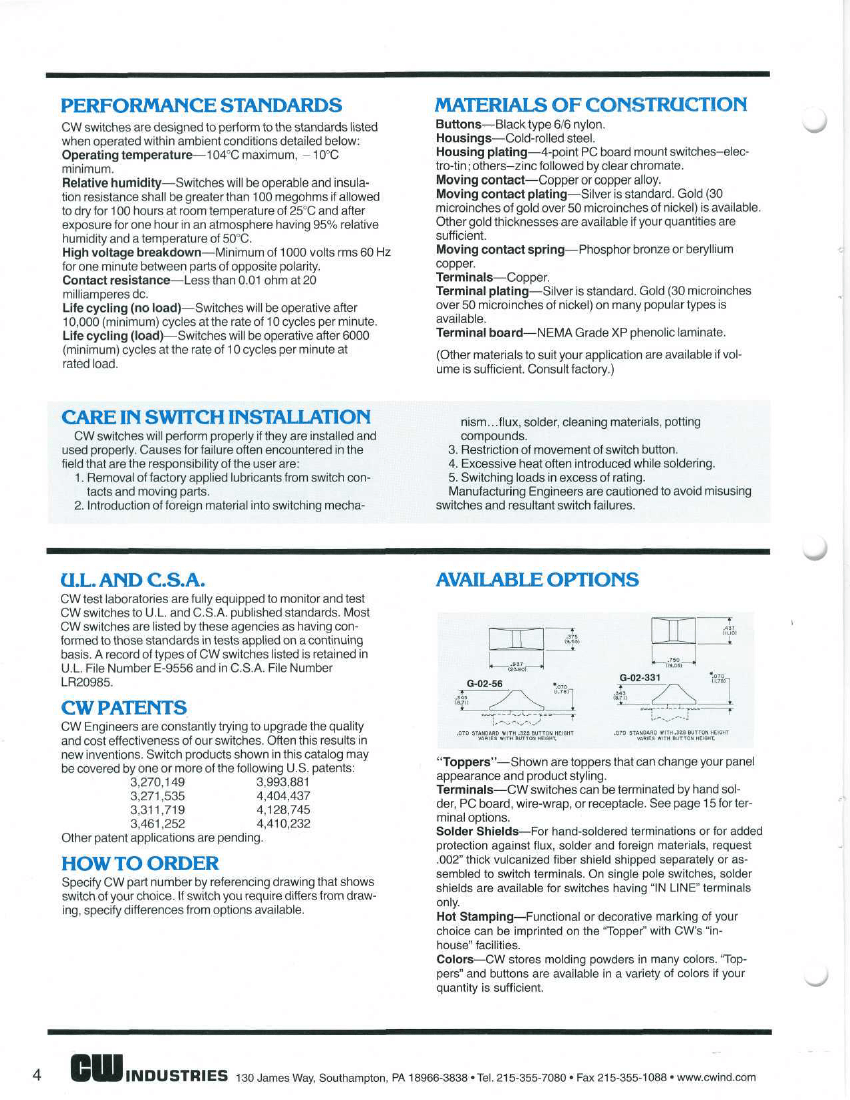

PERFORMANCE STANDARDS
CW switches are designed to perform to the standards listed
when operated within ambient conditions detailed below:
Operating temperature—104°C
maximum, -10°C
minimum.
Relative humidity—Switches
will be operable and insula-
tion resistance shall be greater than 100 megohms if allowed
to dry for 100 hours at room temperature of 25°C and after
exposure for one hour in an atmosphere having 95% relative
humidity and a temperature of 50°C.
High voltage breakdown—Minimum
of 1000 volts rms 60 Hz
for one minute between parts of opposite polarity.
Contact resistance—Less
than 0.01 ohm at 20
milliamperes dc.
Life cycling (no load)—Switches
will be operative after
10,000 (minimum) cycles at the rate of 10 cycles per minute.
Life cycling (load)—Switches
will be operative after 6000
(minimum) cycles at the rate of 10 cycles per minute at
rated load.
MATERIALS OF CONSTRUCTION
Buttons—Black
type 6/6 nylon.
Housings—Cold-rolled
steel.
Housing plating—4-point
PC board mount switches-elec-
tro-tin; others-zinc followed by clear chromate.
Moving contact—Copper
or copper alloy.
Moving contact plating—Silver
is standard. Gold (30
microinches of gold over 50 microinches of nickel) is available.
Other gold thicknesses are available if your quantities are
sufficient.
Moving contact spring—Phosphor
bronze or beryllium
copper.
Terminals—Copper.
Terminal plating—Silver
is standard. Gold (30 microinches
over 50 microinches of nickel) on many popular types is
available.
Terminal board—NEMA
Grade XP phenolic laminate.
(Other materials to suit your application are available if vol-
ume is sufficient. Consult factory.)
J
CARE IN SWITCH INSTALLATION
CW switches will perform properly if they are installed and
used properly. Causes for failure often encountered in the
field that are the responsibility of the user are:
1. Removal of factory applied lubricants from switch con-
tacts and moving parts.
2. Introduction of foreign material into switching mecha-
nism...flux, solder, cleaning materials, potting
compounds.
3. Restriction of movement of switch button.
4. Excessive heat often introduced while soldering.
5. Switching loads in excess of rating.
Manufacturing Engineers are cautioned to avoid misusing
switches and resultant switch failures.
J
U.L.ANDC.S.A.
CW test laboratories are fully equipped to monitor and test
CW switches to U.L. and C.S.A. published standards. Most
CW switches are listed by these agencies as having con-
formed to those standards in tests applied on a continuing
basis. A record of types of CW switches listed is retained in
U.L. File Number E-9556 and in C.S.A. File Number
LR20985.
AVAILABLE OPTIONS
G-02-56
CW PATENTS
CW Engineers are constantly trying to upgrade the quality
and cost effectiveness of our switches. Often this results in
new inventions. Switch products shown in this catalog may
be covered by one or more of the following U.S. patents:
3,270,149
3,993,881
3,271,535
4,404,437
3,311,719
4,128,745
3,461,252
4,410,232
Other patent applications are pending.
"Toppers"—Shown
are toppers that can change your panel
appearance and product styling.
Terminals—CW
switches can be terminated by hand sol-
der, PC board, wire-wrap, or receptacle. See page 15 for ter-
minal options.
Solder Shields—For
hand-soldered terminations or for added
protection against flux, solder and foreign materials, request
.002" thick vulcanized fiber shield shipped separately or as-
sembled to switch terminals. On single pole switches, solder
shields are available for switches having "IN LINE" terminals
only.
Hot Stamping—Functional
or decorative marking of your
choice can be imprinted on the "Topper" with CW's "in-
house" facilities.
Colors—CW
stores molding powders in many colors. "Top-
pers" and buttons are available in a variety of colors if your
quantity is sufficient.
HOW TO ORDER
Specify CW part number by referencing drawing that shows
switch of your choice. If switch you require differs from draw-
ing, specify differences from options available.
INDUSTRIES
130 James Way, Southampton, PA 18966-3838 -Tel. 215-355-7080 • Fax 215-355-1088 • www.cwind.com

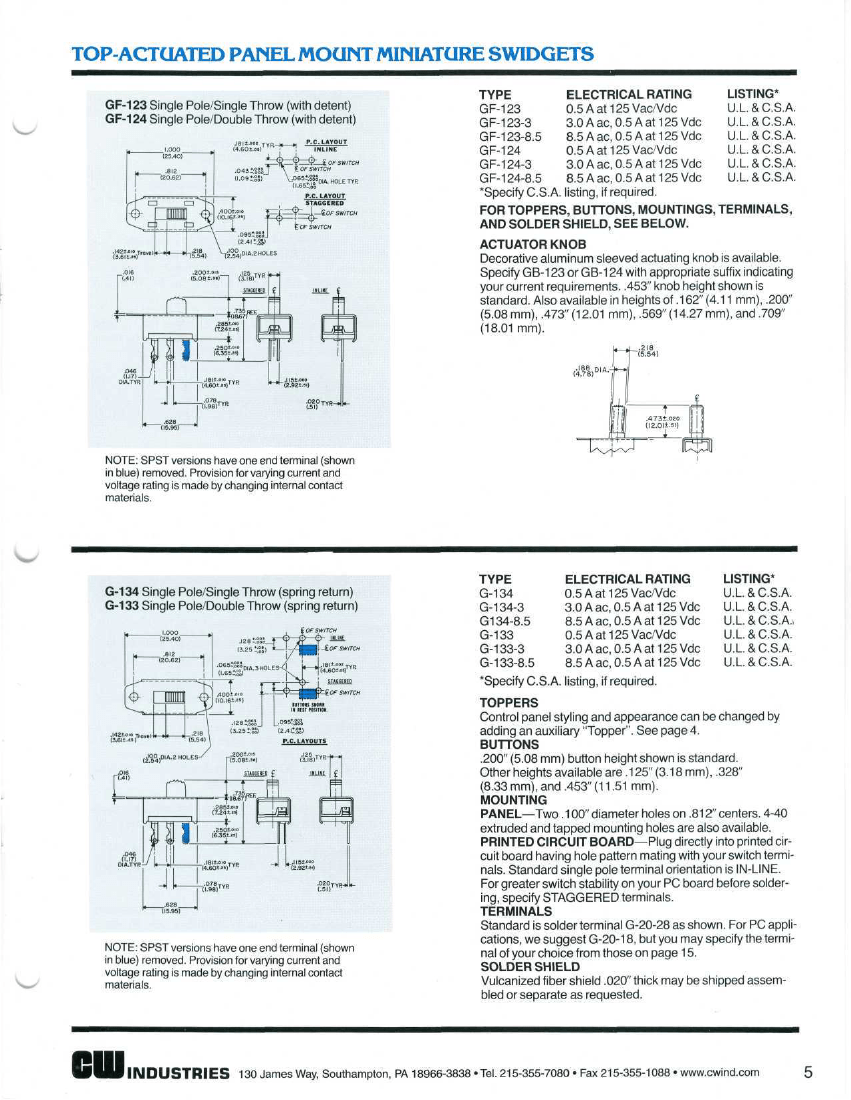

TOP-ACTUATED PANEL MOUNT MINIATURE SWIDGETS
GF-123
Single Pole/Single Throw (with detent)
GF-124 Single Pole/Double Throw (with detent)
P.C. LAYOUT
INLINE
TYPE
ELECTRICAL RATING
LISTING*
GF-123
0.5Aat125Vac/Vdc
U.L&C.S.A.
GF-123-3
3.0Aac,0.5Aat125Vdc
U.L&C.S.A.
GF-123-8.5
8.5Aac,0.5Aat125Vdc
U.L&C.S.A.
GF-124
0.5Aat125Vac/Vdc
U.L&C.S.A.
GF-124-3
3.0 A ac, 0.5 A at 125 Vdc
U.L&C.S.A.
GF-124-8.5
8.5 A ac, 0.5 A at 125 Vdc
U.L&C.S.A.
*Specify C.S.A. listing, if required.
FOR TOPPERS, BUTTONS, MOUNTINGS, TERMINALS,
AND SOLDER SHIELD, SEE BELOW.
ACTUATOR KNOB
Decorative aluminum sleeved actuating knob is available.
Specify GB-123 or GB-124 with appropriate suffix indicating
your current requirements. .453" knob height shown is
standard. Also available in heights of .162" (4.11 mm), .200"
(5.08 mm), .473" (12.01 mm), .569" (14.27 mm), and .709"
(18.01 mm).
":>-] <f,V«|~
STUfflEO I £
046
.17)-
X.TYR
"
51
5
->[
J
.ft
Ji
8
.285
(7.24
* I
010
r
.25Q1-
*
(6.35±.z>)
.I8l*.oio
PYR
(4.601-")
.078
TYp
NOTE: SPST versions have one end terminal (shown
in blue) removed. Provision for varying current and
voltage rating is made by changing internal contact
materials.
G-134 Single Pole/Single Throw (spring return)
G-133
Single Pole/Double Throw (spring return)
OF SWITCH
mutt
OF SWITCH
TYPE
G-134
G-134-3
G134-8.5
G-133
G-133-3
G-133-8.5
ELECTRICAL RATING
0.5Aat125Vac/Vdc
3.0 A ac, 0.5 A at 125 Vdc
8.5 A ac, 0.5 A at 125 Vdc
0.5Aat125Vac/Vdc
3.0 A ac, 0.5 A at 125 Vdc
8.5 A ac, 0.5 A at 125 Vdc
LISTING*
U.L&C.S.A.
U.L&C.S.A.
U.L&C.S.A.i
U.L&C.S.A.
U.L&C.S.A.
U.L&C.S.A.
'Specify C.S.A. listing, if required.
TOPPERS
Control panel styling and appearance can be changed by
adding an auxiliary "Topper". See page 4.
BUTTONS
.200" (5.08 mm) button height shown is standard.
Other heights available are .125" (3.18 mm), .328"
(8.33 mm), and .453" (11.51 mm).
MOUNTING
PANEL—Two
.100" diameter holes on .812" centers. 4-40
extruded and tapped mounting holes are also available.
PRINTED CIRCUIT BOARD—Plug
directly into printed cir-
cuit board having hole pattern mating with your switch termi-
nals. Standard single pole terminal orientation is IN-LINE.
For greater switch stability on your PC board before solder-
ing, specify STAGGERED terminals.
TERMINALS
Standard is solder terminal G-20-28 as shown. For PC appli-
cations, we suggest G-20-18, but you may specify the termi-
nal of your choice from those on page 15.
SOLDER SHIELD
Vulcanized fiber shield .020" thick may be shipped assem-
bled or separate as requested.
(I.I7)
DIA.TYR
.046
.iei±-Oio
TYp
'(4.60±."J
R
L_.H5±.°a°
^
n:2.92±.S'l
J
NOTE: SPST versions have one end terminal (shown
in blue) removed. Provision for varying current and
voltage rating is made by changing internal contact
materials.
INDUSTRIES
130 James Way, Southampton, PA 18966-3838 «Tel. 215-355-7080 • Fax 215-355-1088 • www.cwind.com
ARM技术
京公网安备 11010802033920号
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved
电子工程世界
