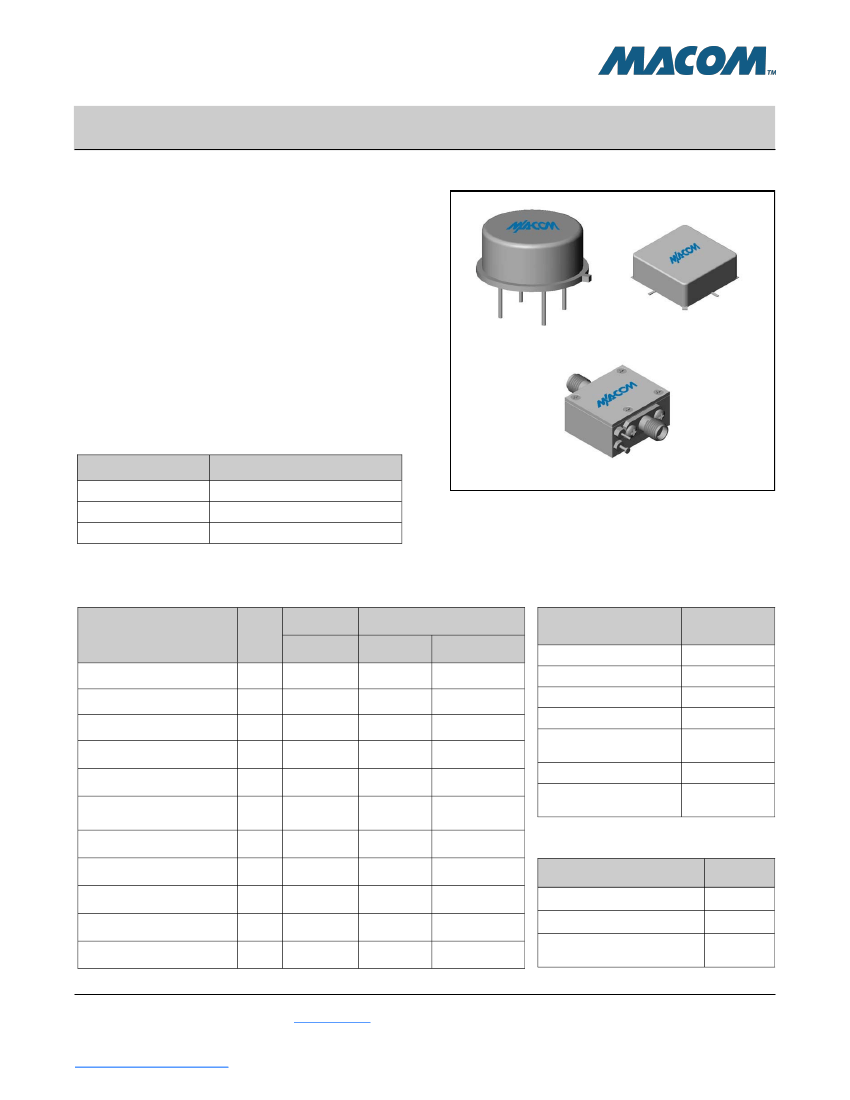

A35-1 / SMA35-1
Cascadable Amplifier
2 to 2400 MHz
Features
AVAILABLE IN SURFACE MOUNT
ULTRA WIDE BANDWIDTH 1-2600 MHz (TYP.)
MEDIUM OUTPUT LEVEL +9.5 dBm (TYP.)
Rev. V2
Product Image
Description
The A35-1 RF amplifier is a discrete thin film hybrid design,
which incorporates the use of thin film manufacturing
processes for accurate performance and high reliability.
This single stage bipolar transistor feedback amplifier design
displays impressive performance over a broadband frequency
range. An active DC biasing network is used for
temperature-stable performance, in addition to an RF Choke,
used for power supply decoupling.
Both TO-8 and Surface Mount packages are hermetically
sealed, and MIL-STD-883 environmental screening is available
.
Ordering Information
Part Number
A35-1
SMA35-1
MAAM-008719-0CA351
Package
TO-8
Surface Mount
SMA Connectorized **
**The connectorized version is not RoHs compliant.
Electrical Specifications: Z
0
= 50, V
CC
= +15 V
DC
Parameter
Frequency
Small Signal Gain (min)
Gain Flatness (max)
Reverse Isolation
Noise Figure (max)
Power Output
@ 1 dB comp. (min)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max)
DC Current @ 15 Volts (max)
1
mA
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Short Term Input power
(1 minute max.)
Peak Power (3 µsec max.)
“S” Series Burn-In
Temperature (case)
Units
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
Typical
25ºC
1-2600
9.0
±0.4
16
4.2
9.5
+23
+34
+40
1.4:1 / 1.4:1
28
5.0
8.5
Guaranteed
0º to 50ºC
2-2400
8.5
±0.6
Absolute
Maximum
-62ºC to +125ºC
+125ºC
+21 V
13 dBm
50 mW
0.5 W
+125ºC
-54º to +85ºC*
2-2400
8.0
±0.8
5.5
8.0
Thermal Data: V
CC
= +15 V
DC
Parameter
Thermal Resistance θ
jc
1.9:1 / 1.9:1
31
2.0:1 / 2.0:1
33
Transistor Power Dissipation P
d
Junction Temperature Rise
Above Case T
jc
Rating
45ºC/W
0.152 W
+7ºC
* Over temperature performance limits for part number CA35-1, guaranteed from 0
o
C to +50
o
C only.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
A35-1 / SMA35-1
Cascadable Amplifier
2 to 2400 MHz

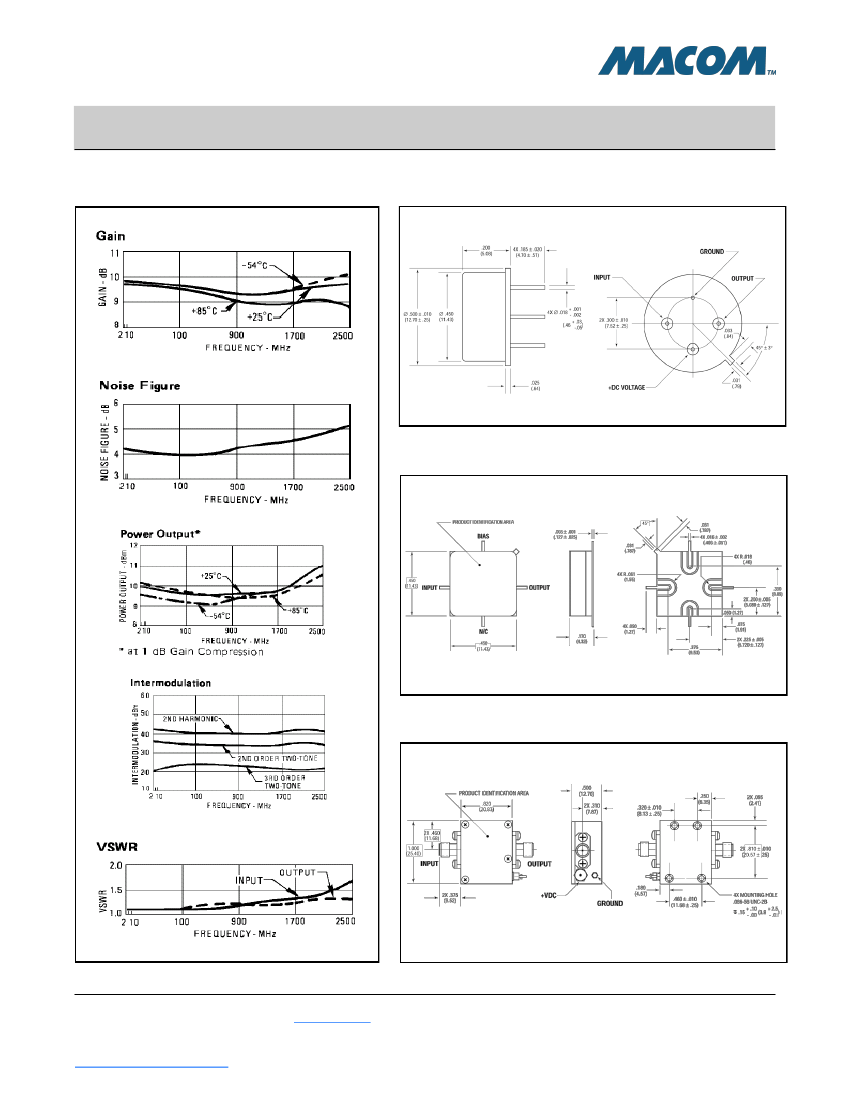

Typical Performance Curves at +25°C
Outline Drawing: TO-8
*
Rev. V2
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: Surface Mount
*
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: SMA Connectorized
*
WEIGHT: 19 grams (0.67 oz.) max
2
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
