02/11/2015
www.crouzet.com
Ø 32 mm 3.9 Watts 3.9 W with leads Part number 82860018
Nominal power : 3 W
Versions with tag or lead connection
Versions without filter or with standard filter or class B filter built into the motor
Versions with or without encoder, 1 or 5 pulses per revolution, built into the motor
Part numbers
Type
82860018
3.9 W with leads
Type
82860
Voltage
24 V
References
Varistor filter
Specifications
No-load characteristics
Speed of rotation (rpm)
Absorbed power (W)
Absorbed current (A)
5000
1,92
0,08
Nominal characteristics
Speed (rpm)
Torque (mNm)
Usable power (W)
Absorbed power (W)
Absorbed current (A)
Gearbox case temperature rise (°C)
Efficiency (%)
3700
7,7
3
6
0,26
50
50
General characteristics
Insulation class (conforming to IEC 85)
Protection rating
Max. output power (W)
Start torque (mNm)
Starting current (A)
Resistance (Ω)
Inductance (mH)
Torque constant (Nm/A)
Electrical time constant (ms)
Mechanical time constant (ms)
Thermal time constant (mn)
Inertia (g.cm
2
)
Weight (g)
Number of of segments
Service life (h)
Sintered bronze bearings
Leads connection 250 mm
B (130 °C)
IP40
3,9
30
0,76
32
41,6
0,0448
1,3
36
8
19
95
3
3000
AWG24
Encoder characteristics
Connection
Output current (mA)
Supply (V)
-
-
-
Made to order products, available on request
Other supply voltages
Motor with 2 ball bearings
Shaft lengths at front and/or rear
Lead outputs or radial tag terminals
Special interference suppression
Encoder : 5 pulses/rev

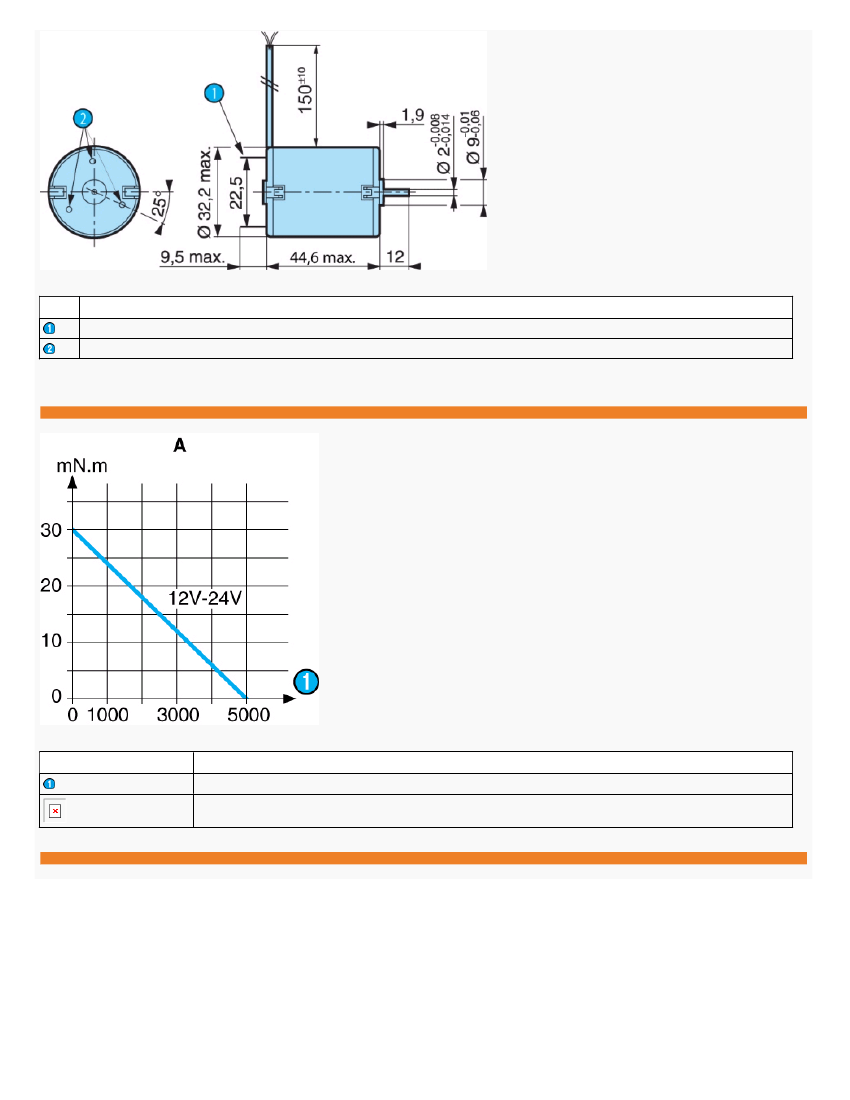

Dimensions (mm)
82 860 0 with encoder
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
2 tags NFC 20 - 120 ; series 2.8 x 0.5
3 holes at 120° over Ø 26 mm : use self-tapping M2.2 screws ; screw depth max. 6 mm
Curves
82860
N
o
Legend
rpm
Torque/nominal speed curve
Curves
82860
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend

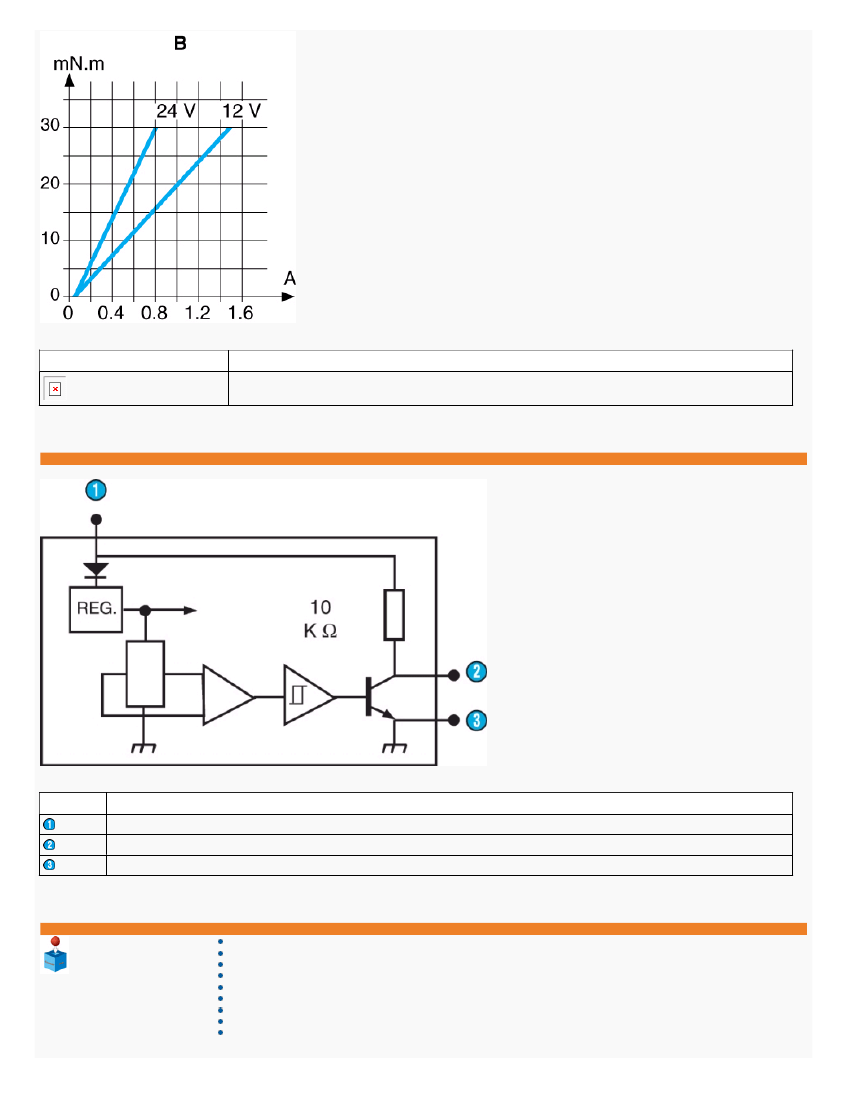

Torque/current curve
Connections
Encoder
N
o
Legend
Brown : +5 →+24 V DC (encoder power supply)
Yellow : Signal output
Blue : 0 V DC (encoder power ground supply)
Product adaptations
Special output shaft
Pinion on output shaft
Special supply voltage
Special cable length
Special ball bearings
Special mounting plate
Customised electronics
Special connectors
Shorter 1 W motor
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
