COM Express
®
Basic Module
ate
c.co
m

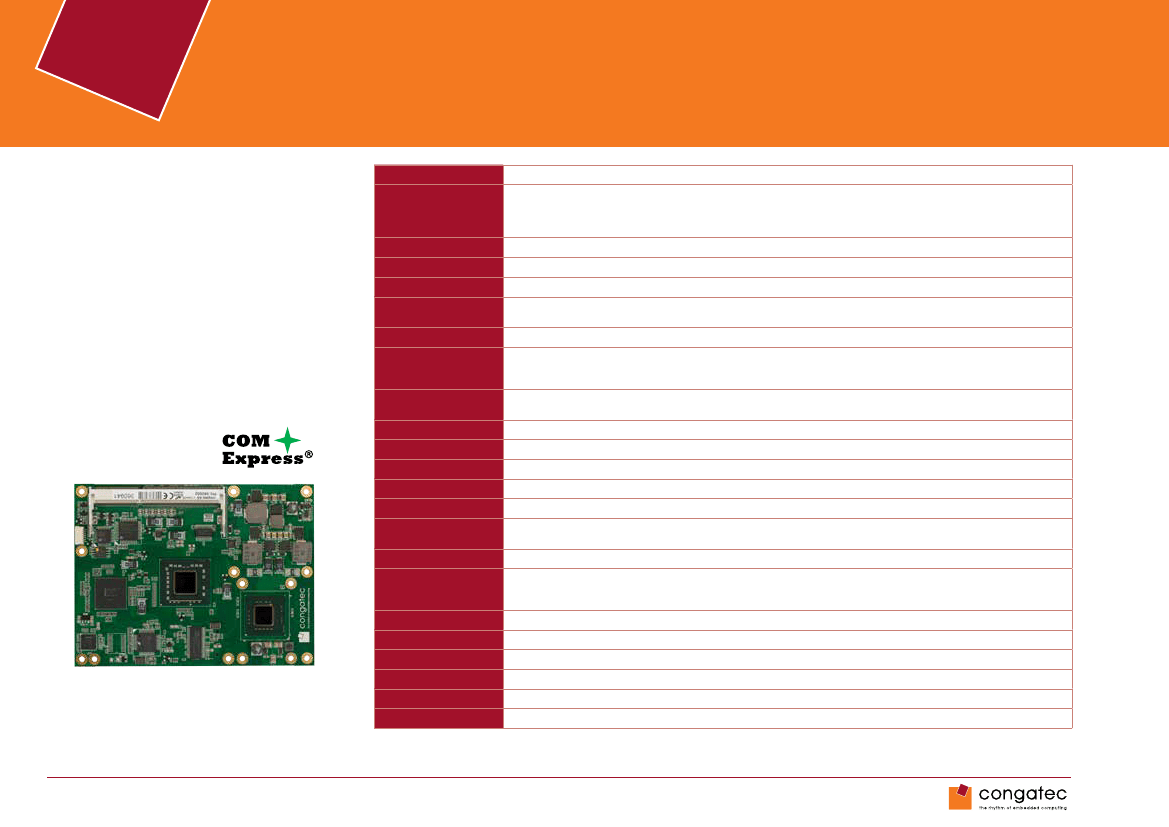

Small-Footprint Mobile Performance
Formfactor
CPU
COM Express™ Basic, (95 x 125 mm), Type II Connector Layout
Intel® Core™ 2 Duo SU9300, 1.20 GHz (3M cache, 800 MHz FSB, TDP 10W)
Intel® Core™ 2 Duo SP9300, 2.26 GHz (6M cache, 1066 MHz FSB, TDP 25W)
Intel® Core™ 2 Duo SL9400, 1.86 GHz (6M cache, 1066 MHz FSB, TDP 17W)
Intel® Celeron® M ULV 723, 1.20 GHz (1M cache, 800 MHz FSB, TDP 10W)
2 Sockets, SO-DIMM DDR3 1067 MHz, up to 8 GByte
Graphics & Memory Controller Hub:
Intel® GS45
I/O Controller Hub:
Intel® 82801lUX (ICH9ME-SFF)
Intel® 82567LM Gigabit Ethernet Phy
5x PCI Express™ lanes, PCI Express Graphics (PEG x16), 3x Serial ATA® (AHCI) supporting RAID 0/1, 1x EIDE (UDMA-66/100) optional, 2x ExpressCard® (uses 2x
USB & 2x PCI Express), 8x USB 2.0 (EHCI), PCI bus 33 MHz Rev. 2.3, LPC bus, I²C bus (fast mode, 400 kHz, multi-master)
Digital High Definition Audio Interface with support for multiple audio codecs
Mobile Intel® Graphics Media Accelerator 4500MHD, graphics core speeds up to 533 MHz, improved graphics and 3D rendering performance, Intel® Dynamic
Video Memory Technology (Intel® DVMT 5.0), OpenGL 2.0 and DirectX10 support, Two independent pipelines for full dual view support, High performance
hardware MPEG-2 decoding, WMV9 (VC-1) and H.264 (AVC) support Blu-ray support @ 40 Mb/s, hardware motion compensation
Dual channel 112 MHz LVDS transmitter, Supports flat panels with 1x18, 2x18, 1x24, 2x24 bit interface, VESA mappings, resolutions from 640x480 up to
1920x1200, Automatic Panel Detection via EDID/EPI
Supports two DisplayPorts multiplexed with the PCI Express Graphics interface 1.62 Gb/s and 2.7 Gb/s, 1/2/4 data lanes, 8B10B-coding, Hot-Plug detect support
Single TMDS Link, only support for RGB, Video support for CEA modes 480i/p, 576i/p, 720p, 1080i/p and PC modes via dot clock
300 MHz RAMDAC, resolutions up to QXGA
Supports two SDVO Ports multiplexed with the PCI Express Graphics interface
Onboard TV encoder, supports HDTV (420p, 720p and 1080i), supports component and S-video
Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board Information, Board Statistics, BIOS Setup Data Backup, I²C bus (fast mode, 400
kHz, multi-master), Power Loss Control
OEM Logo, OEM CMOS Defaults, LCD Control, Display Auto Detection, Backlight Control, Flash Update, Based on AMIBIOS8®
The conga-BS45 can be optionally equipped with a discrete ”Trusted Platform Module” (TPM). It is capable of calculating efficient hash and RSA algorithms with
key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and e commerce will benefit also with
improved authentication, integrity and confidence levels.
ACPI 3.0 with battery support
Microsoft® Windows8, Microsoft® Windows7, Microsoft® Windows XP, Microsoft® Windows® embedded Standard, Linux
Typ. application: TBD W @ 12V, see manual for full details, CMOS Battery Backup
Operating: 0 .. +60°C Storage: -20 .. +80°C
Operating: 10 - 90% r. H. non cond. Storage: 5 - 95% r. H. non cond.
95 x 125 mm (3.74” x 4.92”)
Intel® Core 2 Duo up to 2.26
up to 8 GByte DRAM
Intel® Graphics Media
Accelerator 4500MHD
DRAM
Chipset
Ethernet
I/O Interfaces
Sound
Graphics
LVDS
DisplayPort (DP)
HDMI
CRT Interface
AUX Output
TV Out
congatec Board Controller
Embedded BIOS Features
Security
Power Management
Operating Systems
Power Consumption
Temperature
Humidity
Size
congatec AG, Auwiesenstraße 5, 94469 Deggendorf, Germany
Phone +49 (991) 2700-0, Fax +49 (991) 2700-111, info@congatec.com
w w w.congatec.com
© 2013 congatec AG. All rights reserved. All data is for information purposes only. Although all the information contained within this document
is carefully checked, no guarantee of correctness is implied or expressed. The products may include software. Use of the software is subject to
the terms and conditions set out in the respective owner‘s license agreements, which are avaialable at www.congatec.com and/or upon request.
Product names, logos, brands, and other trademarks featured or referred to within this datasheet, or the congatec website, are the property of
their respective trademark holders. These trademark holders are not affiliated with congatec AG, our products, or our website.
Rev. Sepember 24, 2013 MD
conga-BS45

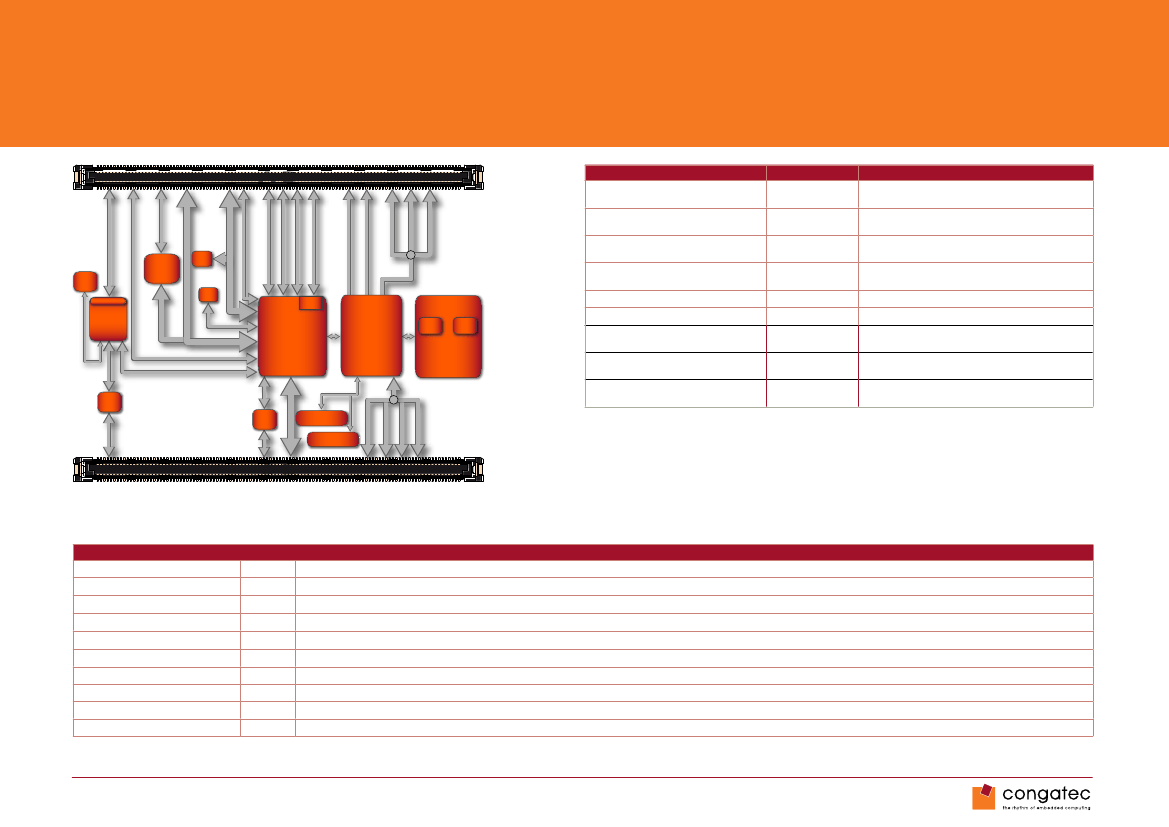

Block Diagram conga-BS45
A-B
Power Management and Control Signals
High Definition Audio (HDA) I/F
Component Video
Composite Video
Order Information conga-BS45
Article
conga-BS45/SL9400
PN
040004
040003
040002
040001
040010
040011
068751
068761
068764
Description
Intel
®
Core 2 Duo 1.86GHz Penryn CPU SL9400, 6MB L2 cache,
1066MHz FSB.
Intel
®
Core 2 Duo 2,26GHz Penryn CPU SP9300, 6MB L2 cache,
1066MHz FSB
Intel
®
Core 2 Duo 1.2GHz Penryn CPU SU9300, 3MB L2 cache,
800MHz FSB.
Intel
®
Celeron
®
M Processor 723 with 1.2GHz, 1MB L2 cache,
800MHz FSB.
Heatspreader , Standoff with 2.7mm bore hole
Heatspreader , Standoff with 2.5mm thread
DDR3 SODIMM memory module with 1333 MT/s (PC3-10600)
and 1GB RAM
DDR3 SODIMM memory module with 1333 MT/s (PC3-10600)
and 2GB RAM
DDR3 SODIMM memory module with 1333 MT/s (PC3-10600)
and 4GB RAM
GPIs/GPOs
3x SATA
Gbit Ethernet
SM Bus
LCD I/F
(LVDS)
8x USB 2.0
S-Video
I2C
CRT
conga-BS45/SP9300
conga-BS45/SU9300
conga-BS45/723
conga-BS45/HSP-B
5x x1 PCIe Lanes
LPC Bus
Hardware
Monitor
Gigabit Ethernet
Phy 82567LM
BIOS
(Flash)
1x x1 PCIe Lane
Watchdog
Board Controller
Atmel
ATmega168
RTC
TV-Out
Intel®
(optional)
TPM
OR
SPI
6x x1 PCIe
Processor
ICH9M-SFF
DMI Interface
System Bus
(800 or 1066MHz)
Intel 82801IUX-SFF
GMCH
Intel GS45
CORE
CORE
conga-BS45/HSP-T
DDR3-SODIMM-1333 (1GB)
DDR3-SODIMM-1333 (2GB)
DDR3-SODIMM-1333 (4GB)
Intel® Core™ 2 Duo
Celeron® M
BC SPI
1x SATA
Memory Bus
(800 or 1066MHz)
OR
PCI Bus
Circuitry
SATA to IDE
C-D
Engineering Tools / Accessories for COM Express
®
conga-CEVAL
conga-Cdebug
conga-CKIT
conga-LDVI/EPI
conga-HDMI/Display Port adapter
Single DVI-D ADD2 Card
Dual DVI-D ADD2 Card
conga-FPA2
COM-Express-carrierboard-Socket-5
COM-Express-carrierboard-Socket-8
065749
047854
064714
011115
500014
058500
013226
047250
400007
400004
Evaluation carrier board for COM-Express-modules
COM-Express debugging platform. Including cable for COM, PS/2 and VGA.
COM-Express-Starterkit, incl. conga-CEVAL, conga-CDEBUG, conga-FPA1 (PN: 024241), Dual DVI-D ADD2 card, Power supply, USB-Stick, ... Without COM Express-module
LVDS to DVI converter board for digital flat panels with onboard EEPROM
The conga-HDMI/DisplayPort adapter is used fo convert the chipset graphic ports Port-B, Port-C and Port-D to the HDMI or DisplayPort Interface
ADD2 display adapter card with single DVI-D digital output. Suitable for all Intel based platforms that support Serial Digital Display Outputs (SDVO) on the standard, x16 PCI Express Graphics (PEG) port.
ADD2 display adapter card with dual independent DVI-D output. Suitable for all Intel based platforms that support Serial Digital Display Outputs (SDVO) on the standard, x16 PCI Express Graphics (PEG) port.
Flatpanel prototype adapter to develop your own flatpanel adapter Including cables set.
Connector for COM-Express carrier boards, height 5mm, packing unit 4 pieces
Connector for COM-Express carrier boards, height 8mm, packing unit 4 pieces
